Power Mode (2.0 DOHC)

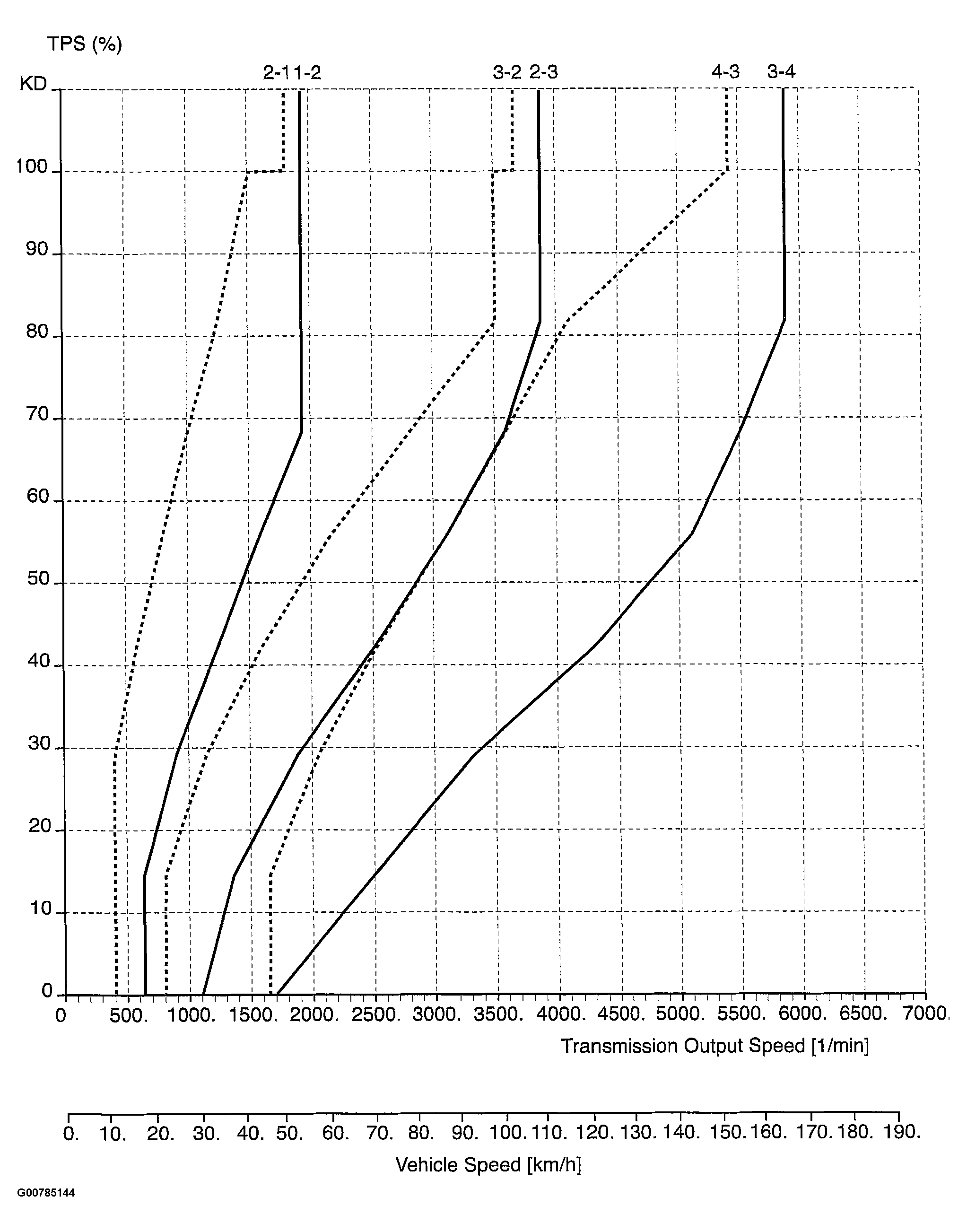

Fig 1: Identifying Power Shift Mode Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
