Economic Mode (2.0 DOHC)

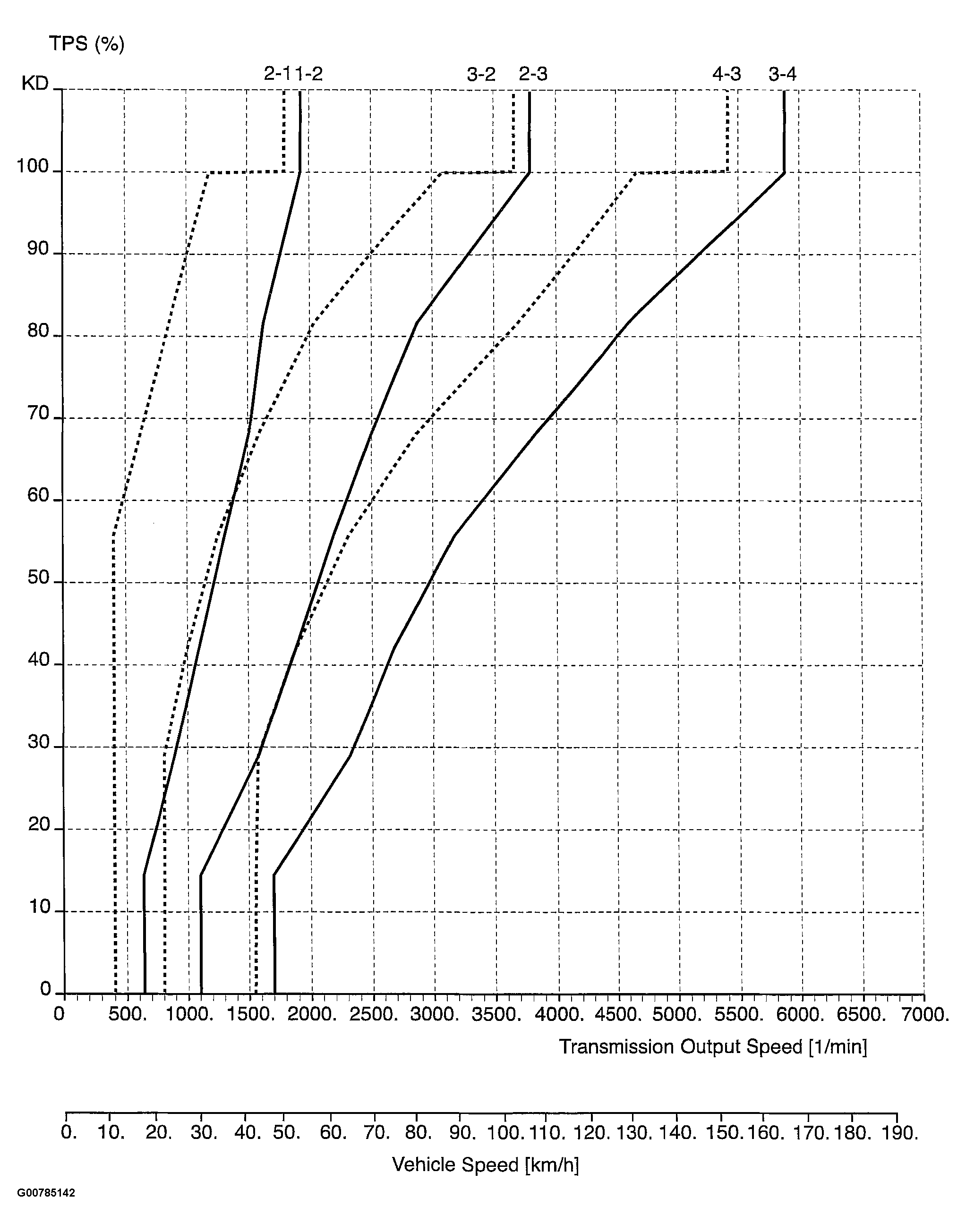

Fig 1: Identifying Shift Economic Mode Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
