DTC P1854: Solenoid 2 Output Shorted to Power: Notes

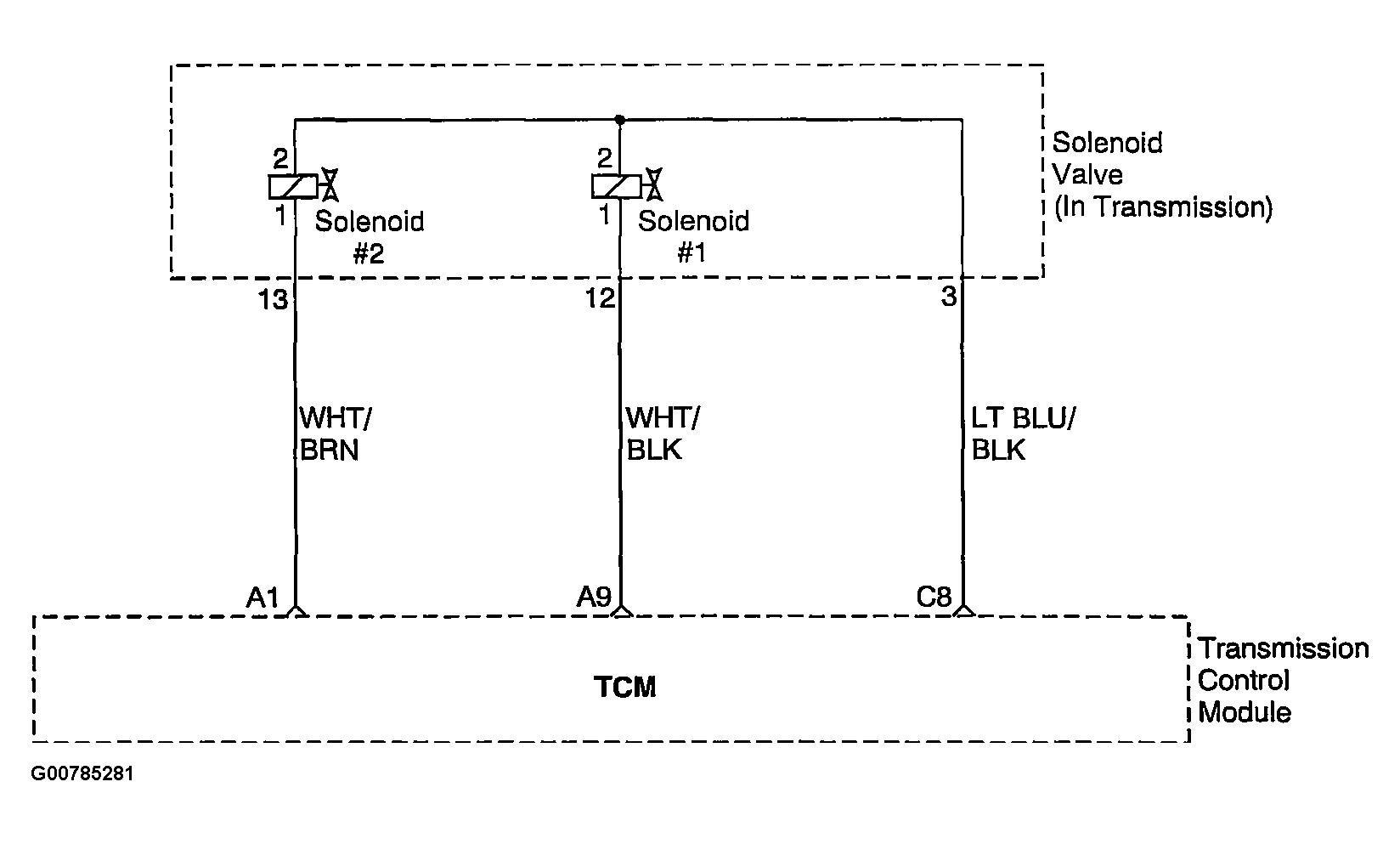

Fig 1: DTC P1854 Solenoid 2 Output Shorted to Power Diagnostic Wiring Diagram
G00785281Courtesy of SUZUKI OF AMERICA CORP.
