DTC P1606: Failure of External Watchdog: Notes

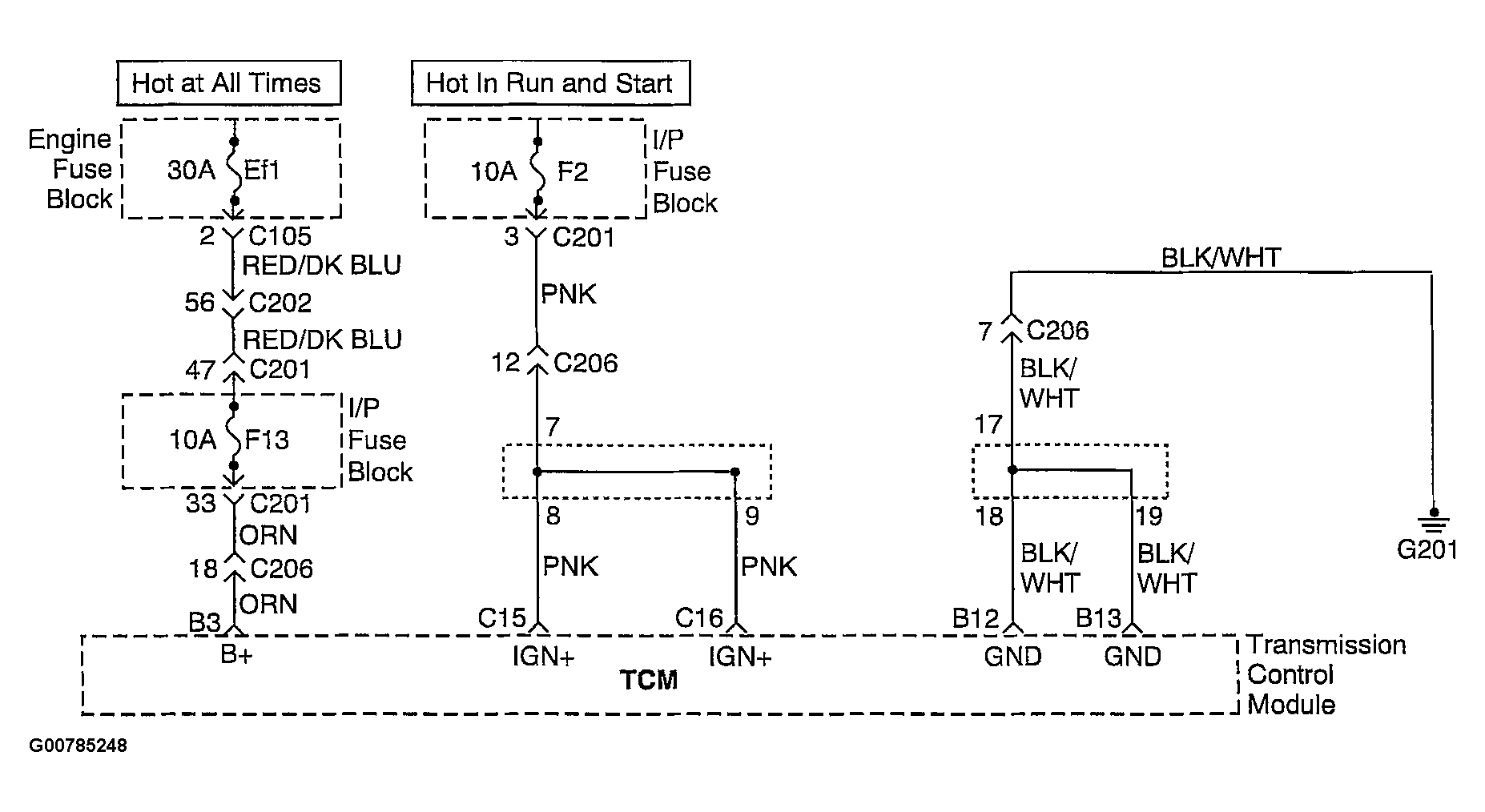

Fig 1: DTC P1606 Failure of External Watchdog - Diagnostic Wiring Diagram
G00785248Courtesy of SUZUKI OF AMERICA CORP.
