Home >> Suzuki >> 2004 >> Forenza EX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis >> Diagnostic Trouble Codes Identification >> DTC P1604: Data Check of Internal & Extended RAM Failed >> Diagnostic Aids
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Diagnostic Aids

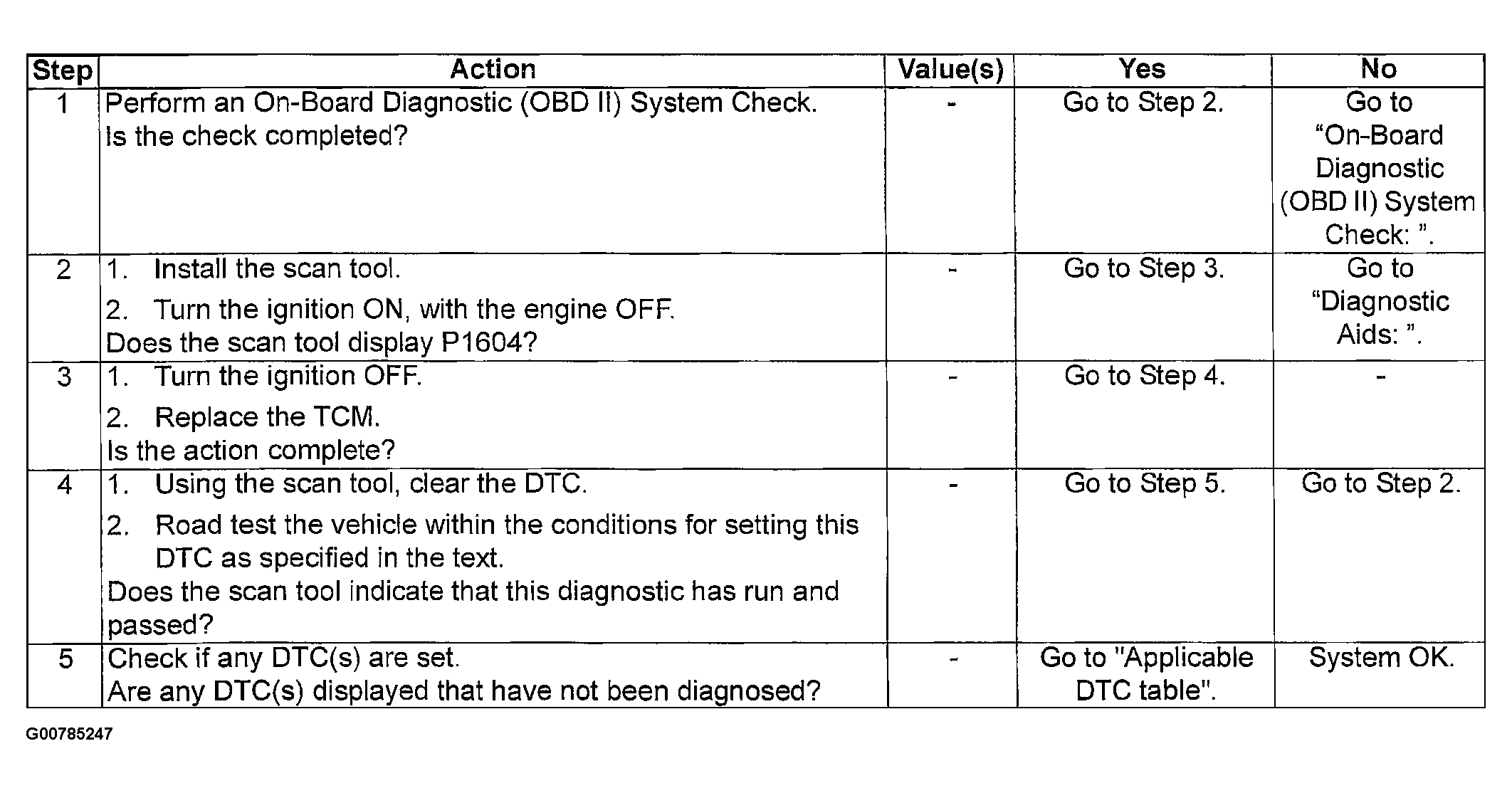

Fig 1: DTC P1604 Data Check of Internal & Extended RAM Failed Diagnostic Chart
G00785247Courtesy of SUZUKI OF AMERICA CORP.
