Diagnostic Trouble Codes Identification
>>
DTC P0721: Output Speed Sensor (OSS) Circuit Range/Performance
>>
Diagnostic Aids
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Aids
When DTC P0721 sets, the possible cause of fault could be OSS (Output speed sensor).

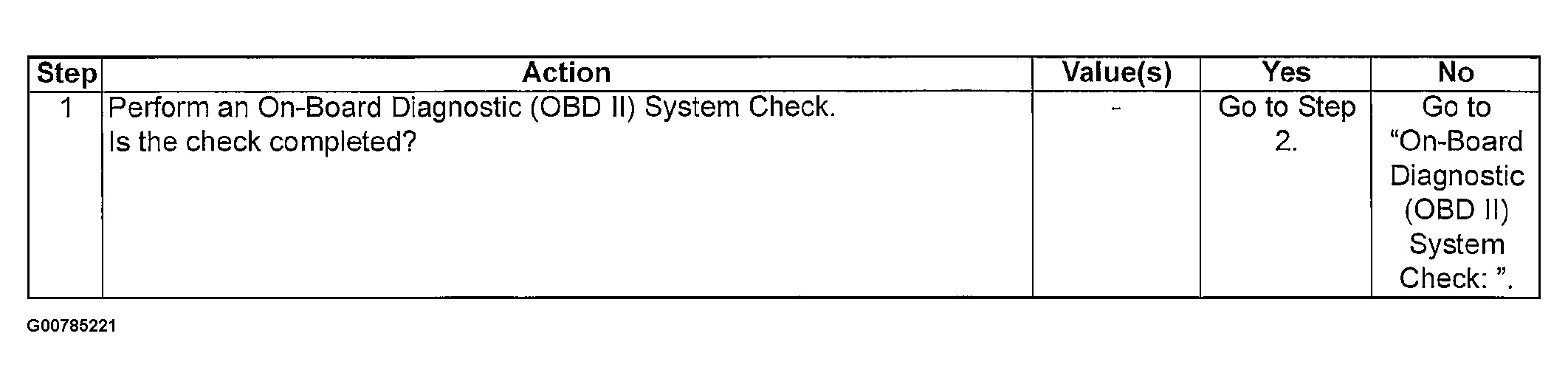

Fig 1: DTC P0721 Output Speed Sensor (OSS) Circuit Range/Performance Diagnostic Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

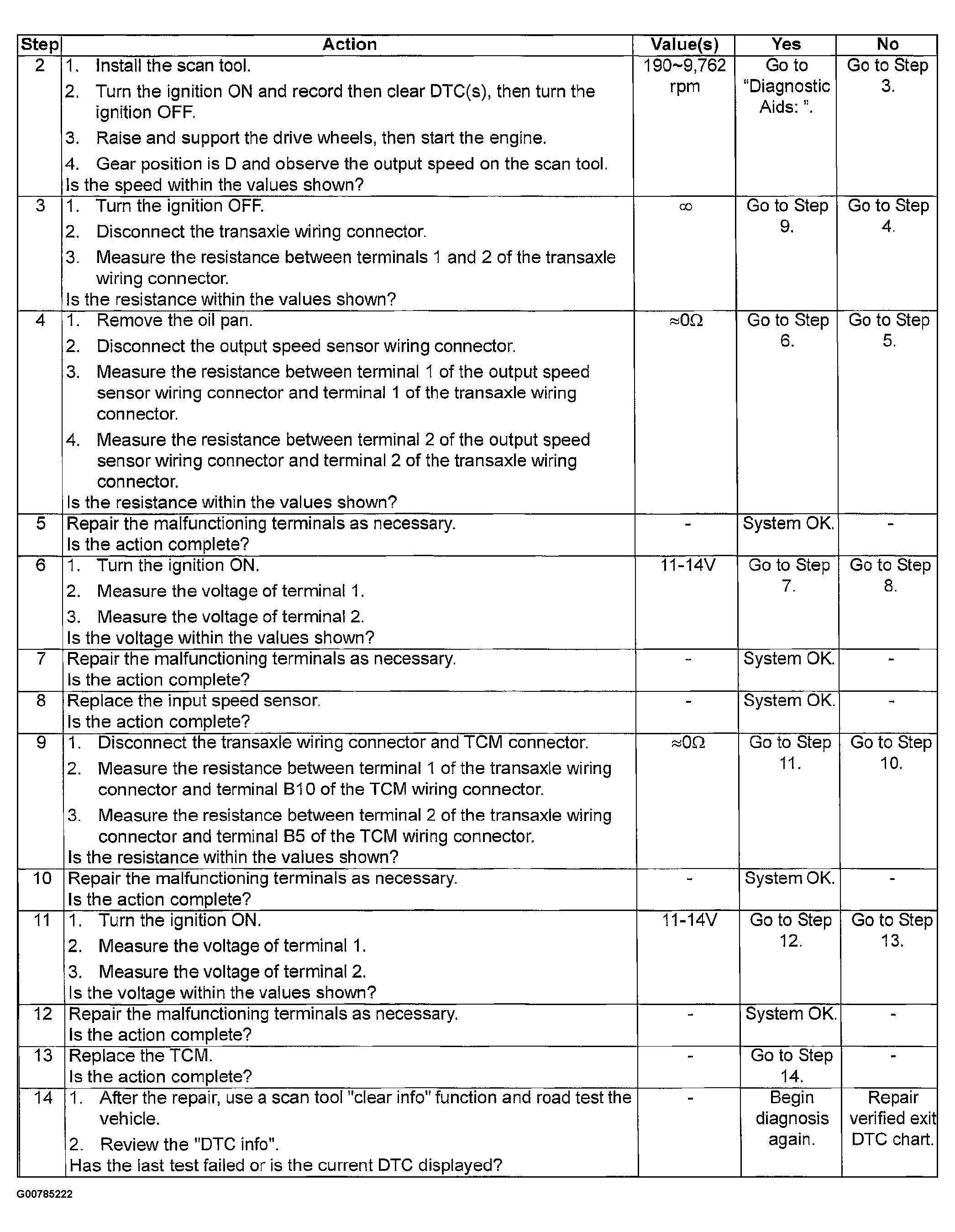

Fig 2: DTC P0721 Output Speed Sensor (OSS) Circuit Range/Performance Diagnostic Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
