Diagnostic Aids

When DTC P0716 sets, the possible cause of fault could be ISS (input speed sensor).

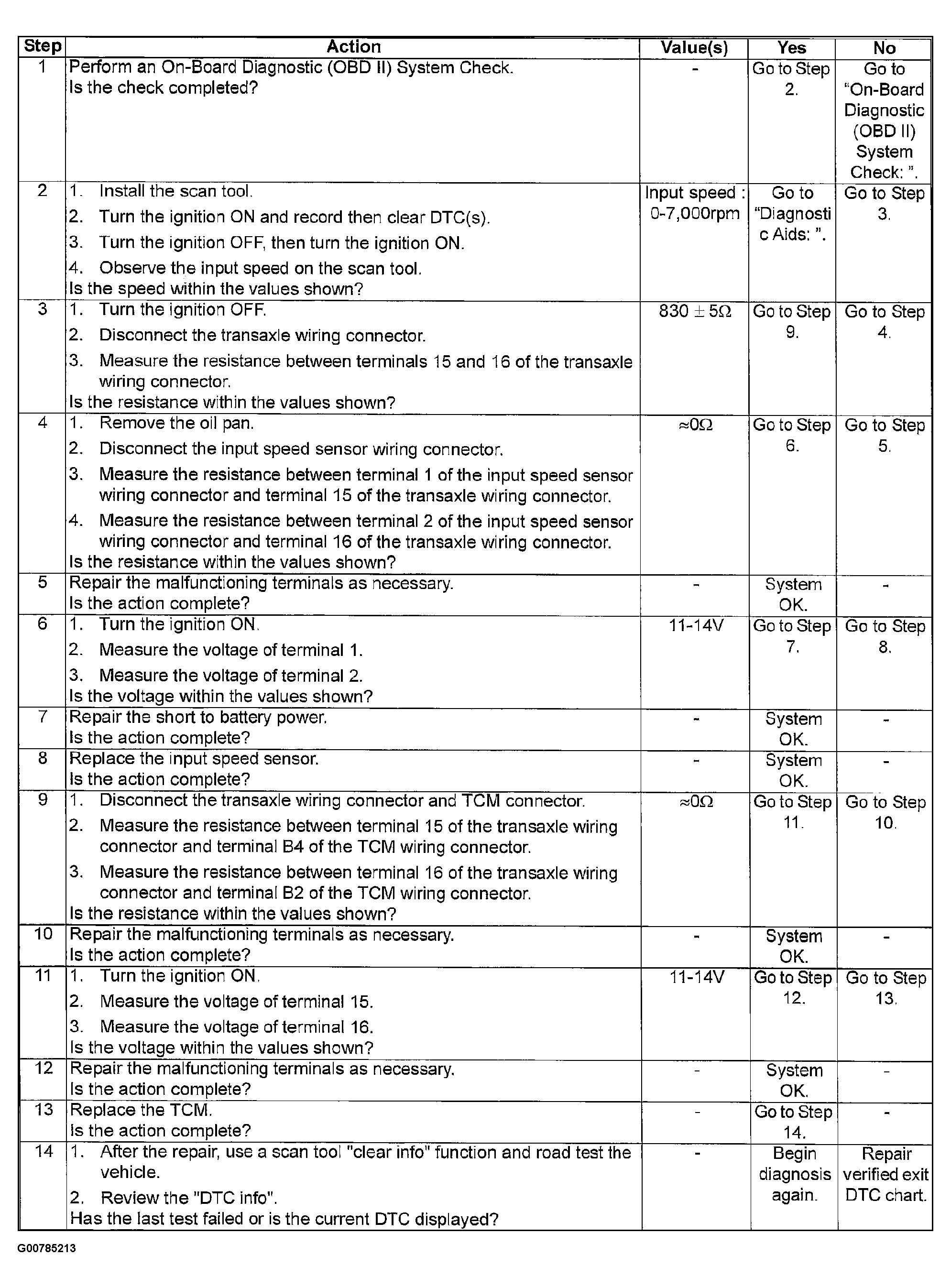

Fig 1: DTC P0716 Input Speed Sensor (ISS) Circuit Range/Performance Diagnostic Chart

Courtesy of SUZUKI OF AMERICA CORP.
