Diagnostic Aids

When DTC P0711 sets, the possible cause of fault could be transmission fluid temperature sensor.

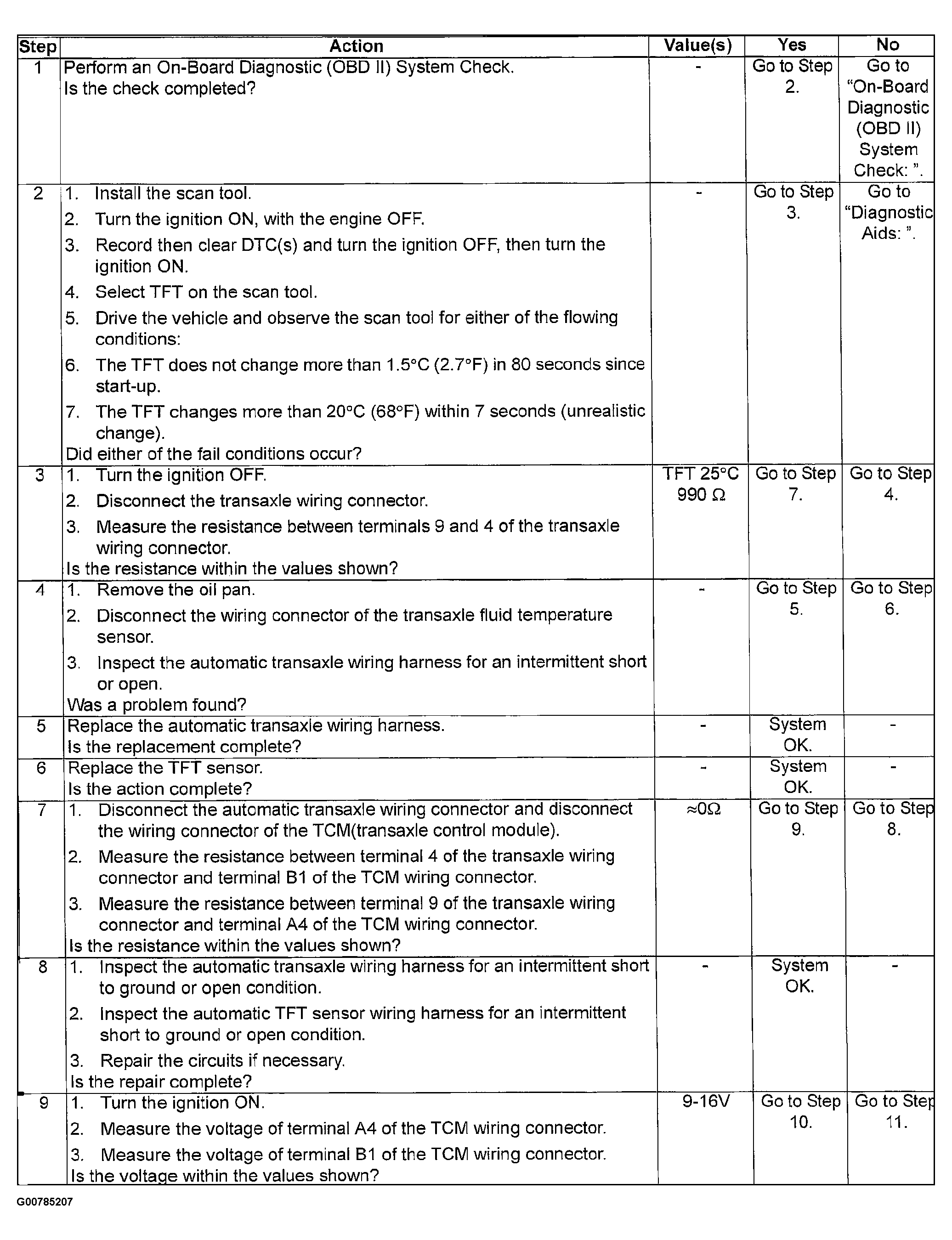

Fig 1: DTC P0711 Transmission Fluid Temperature Sensor Circuit Range/Performance Diagnostic Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

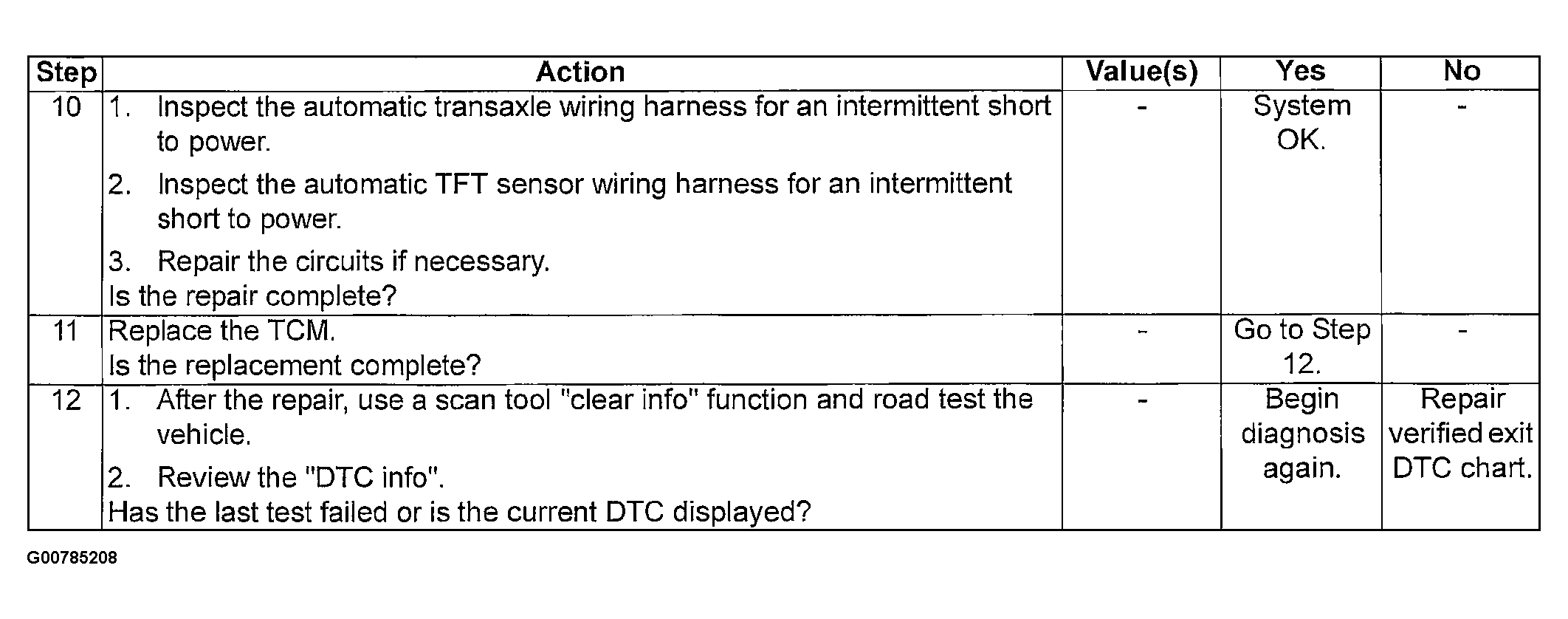

Fig 2: DTC P0711 Transmission Fluid Temperature Sensor Circuit Range/Performance Diagnostic Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
