Internal Wiring Harness Check

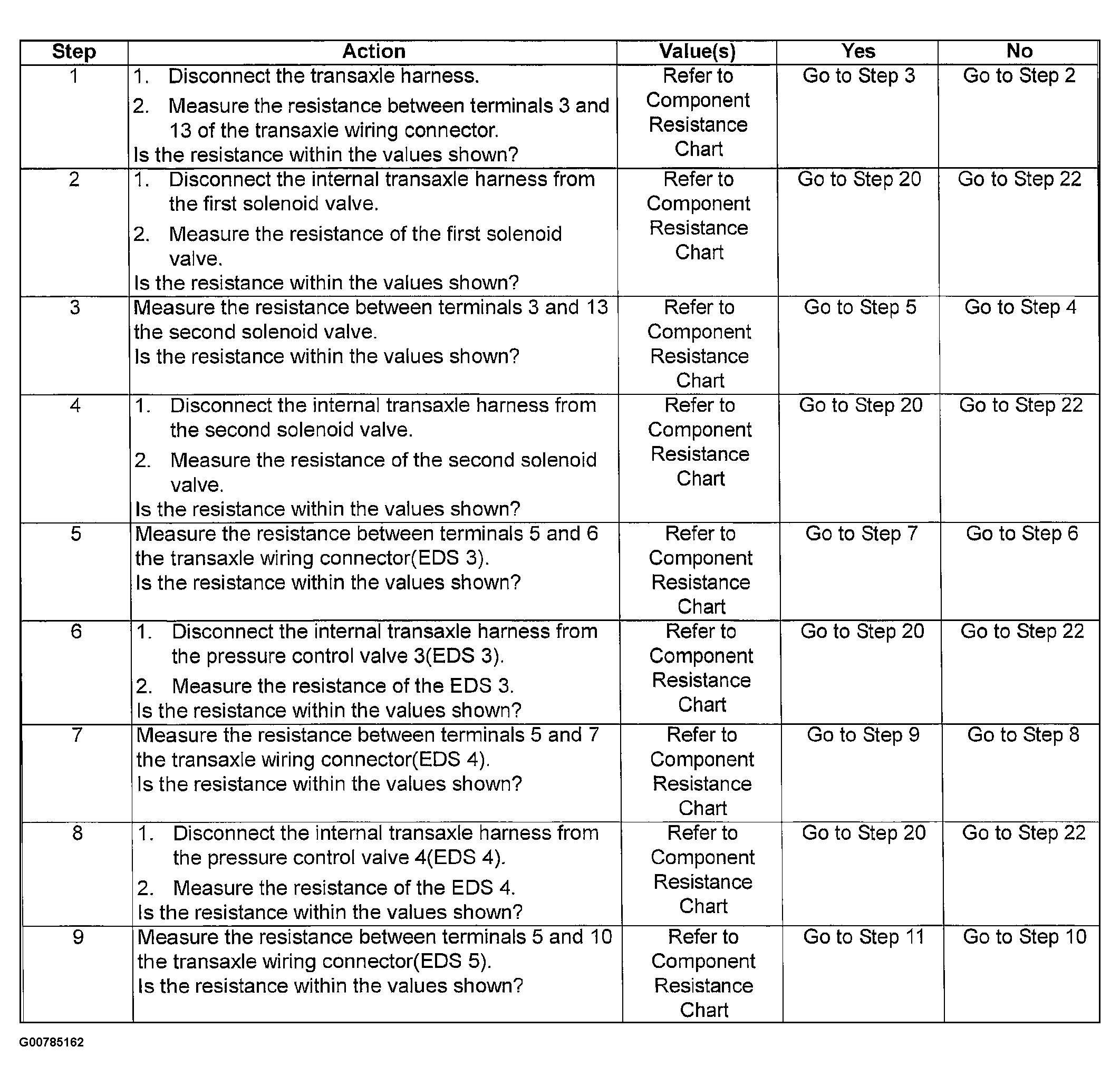

Fig 1: Internal Wiring Harness Check Chart (1 Or 2)
G00785162Courtesy of SUZUKI OF AMERICA CORP.

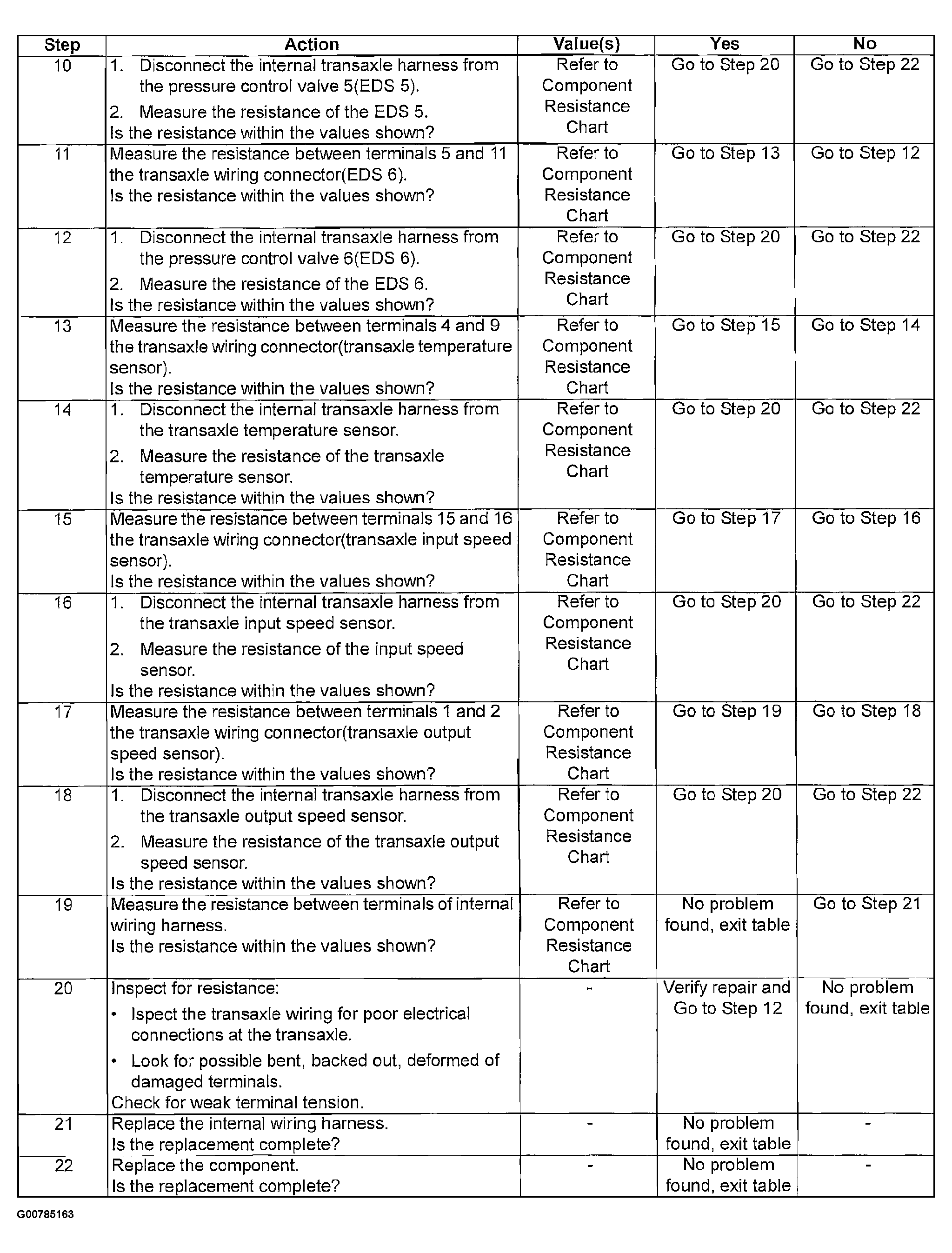

Fig 2: Internal Wiring Harness Check Chart (2 Or 2)
G00785163Courtesy of SUZUKI OF AMERICA CORP.
