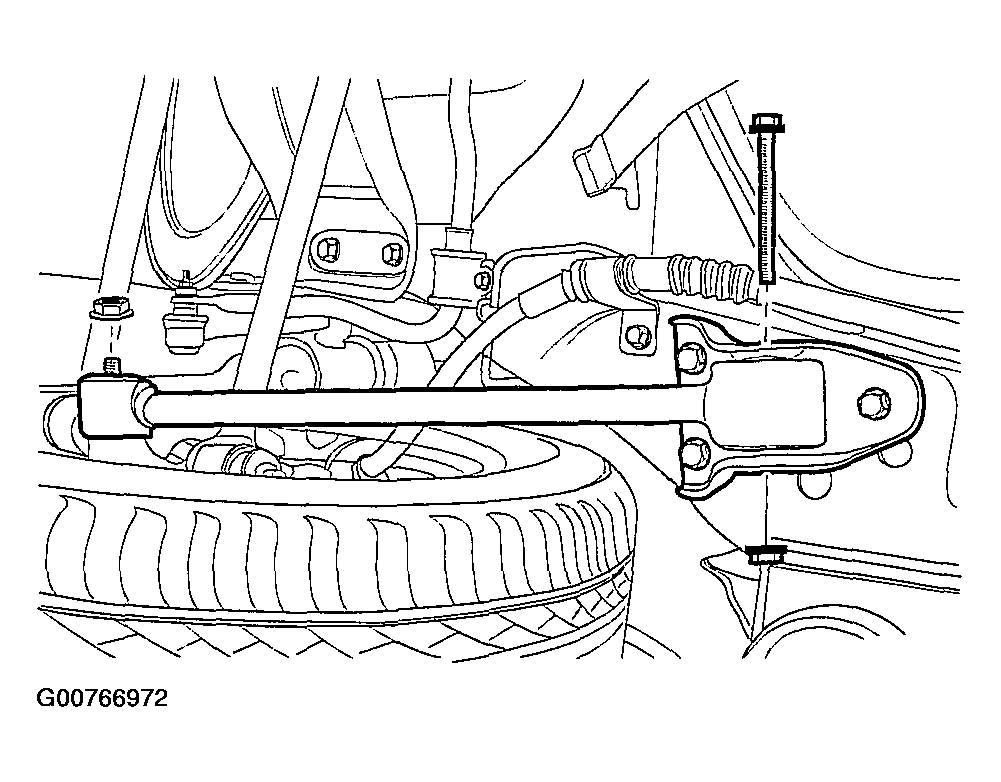

Trailing Link Removal And Installation: Removal
- Raise and suitably support the vehicle.
- Remove the rear trailing link-to-rear knuckle nut.
- Remove the rear trailing link-to-trailing link bracket nut and the rear trailing link-to-knuckle bolt.
- Remove the rear trailing link.
Courtesy of SUZUKI OF AMERICA CORP.
