Trailing Link Removal And Installation: Installation

Install the rear trailing link.
Install the rear trailing link bracket nut and the bolt.
Tighten

Tighten the rear trailing link-to-trailing link bracket nut to 100 N.m (74 Ft. Lbs.).
Install the trailing link-to-knuckle nut.
Tighten

Tighten the rear trailing link-to-knuckle nut to 150 N.m (110 Ft. Lbs.).

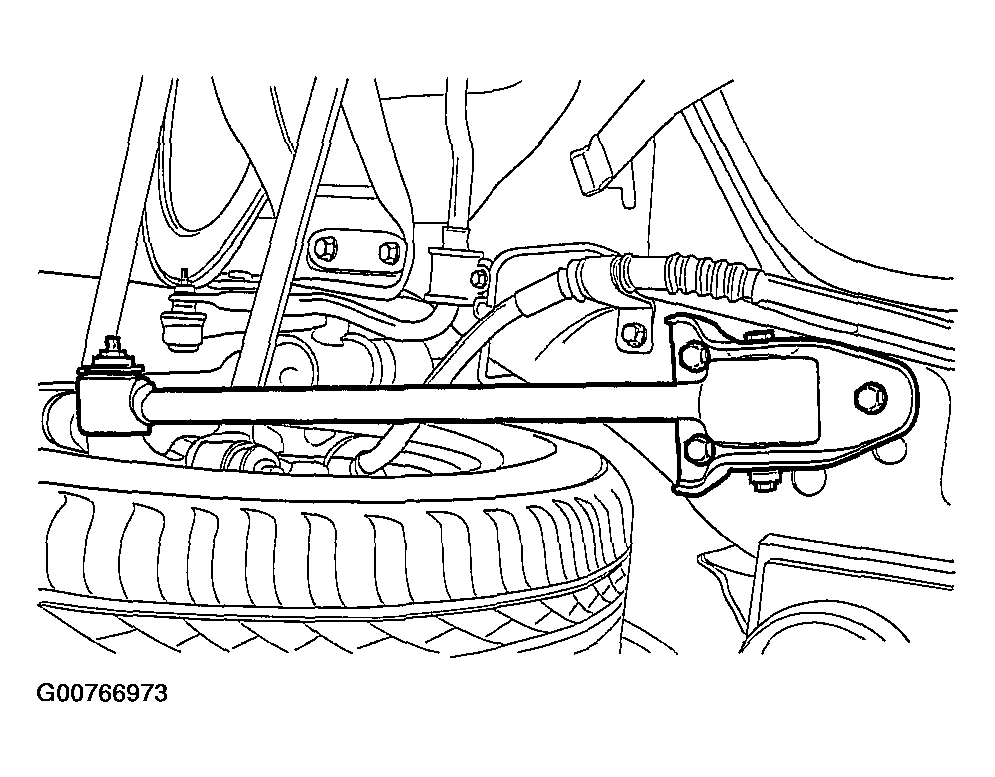

Fig 1: Installing The Trailing Link-To-Knuckle Nut
Courtesy of SUZUKI OF AMERICA CORP.
Lower the vehicle.
