Trailing Link Bracket Removal And Installation: Installation

Install the trailing link bracket.

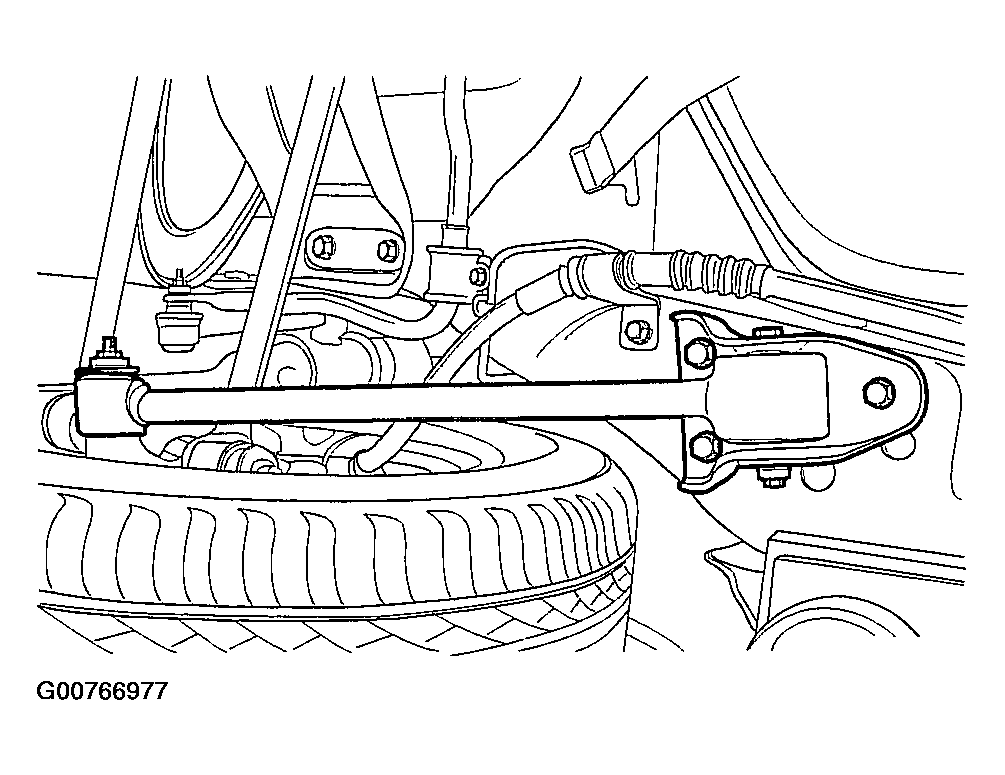

Fig 1: Installing The Trailing Link Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Install the trailing link bracket-to-body bolts.
Tighten

Tighten the trailing link bracket-to-body bolts to 70 N.m (52 Ft. Lbs.).
Connect the trailing link to the trailing link bracket by installing the trailing link-to-trailing link bracket nut and bolt.
Tighten

Tighten the trailing link-to-trailing link bracket nut to 100 N.m (74 Ft. Lbs.).

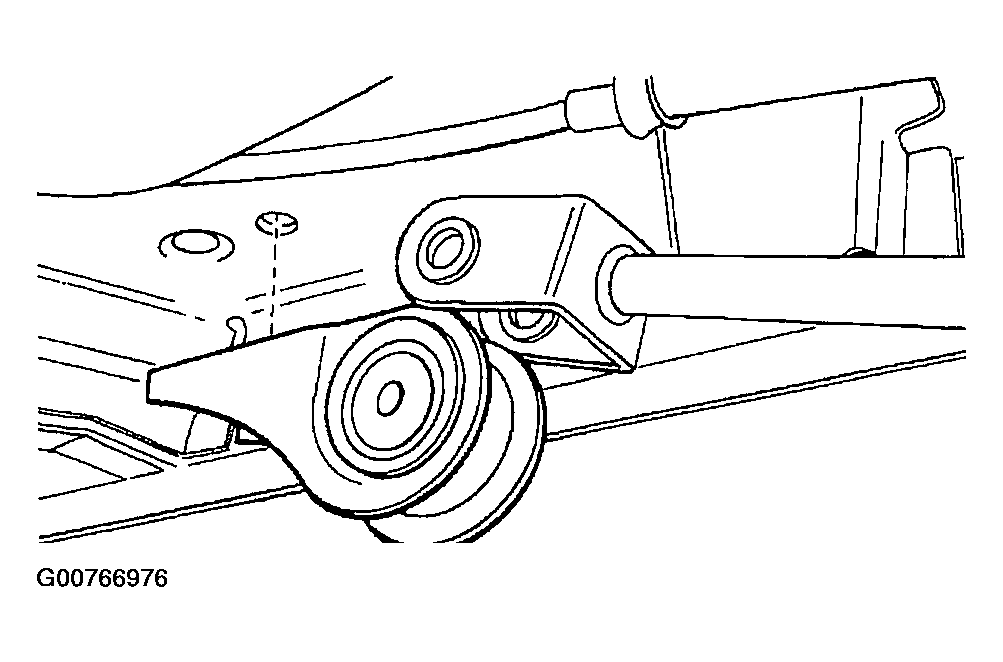

Fig 2: Identifying Trailing Link-To-Trailing Link Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Lower the vehicle.
