Rear Parallel Link Removal And Installation: Installation

Install the rear parallel link.
Install the rear parallel link-to-knuckle bolt.
Tighten

Tighten the rear parallel link-to-knuckle bolt to 120 N.m (89 Ft. Lbs.).
Install the rear parallel link onto the rear crossmember. Install the rear parallel link-to-crossmember bolts.
Tighten

Tighten the rear parallel link-to-crossmember bolt to 90 N.m (66 Ft. Lbs.).

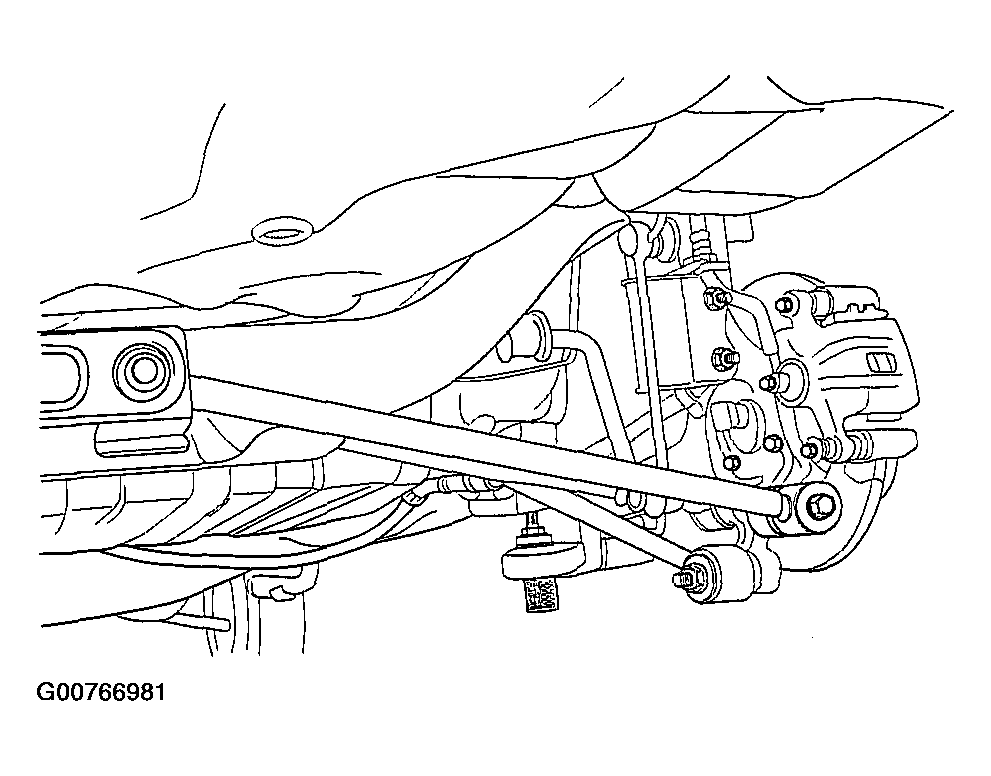

Fig 1: Installing The Rear Parallel Link
Courtesy of SUZUKI OF AMERICA CORP.
Install the wheel.
