Hub And Bearing Assembly Removal And Installation: Installation

  1. Install the hub assembly.

    Tighten

    Tighten the hub assembly bolts to 65 N.m (48 Ft. Lbs.).

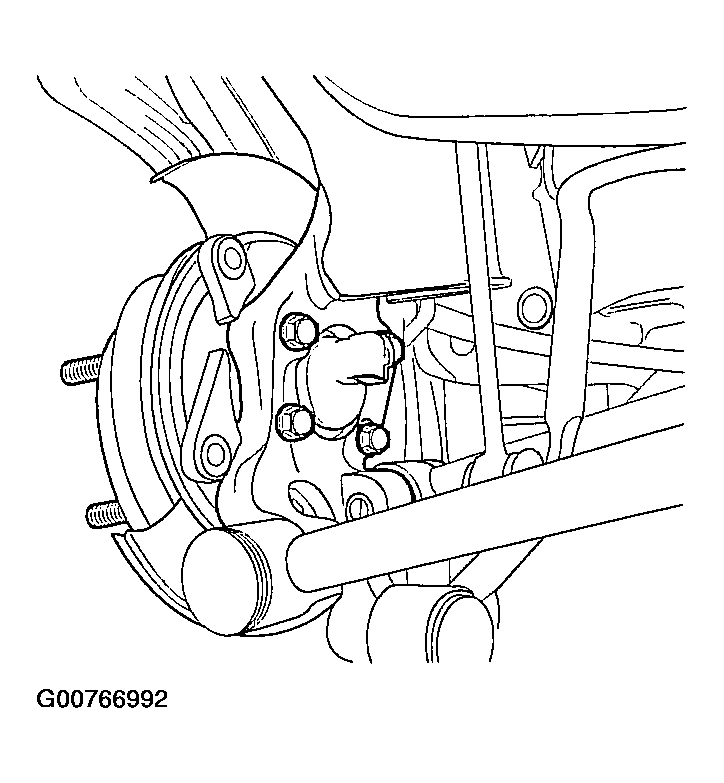

    Fig 1: Installing Hub Assembly Bolts
    G00766992Courtesy of SUZUKI OF AMERICA CORP.
  2. Install the hub nut.
  3. On vehicles equipped with rear disc brakes, install the rear brake disc and rear brake caliper.
  4. Install the wheel.
  5. Lower the vehicle.
