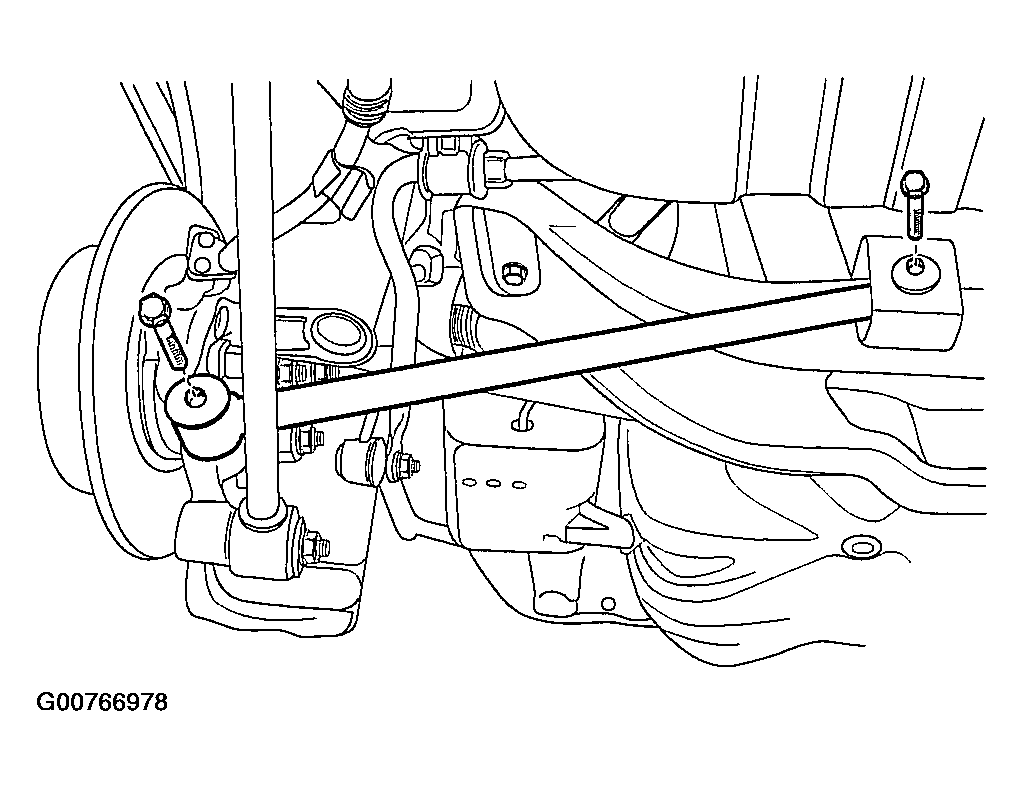

Front Parallel Link Removal And Installation: Removal
- Raise and suitably support the vehicle.
- Remove the wheel.
- For vehicles equipped with the antilock braking system, remove the ABS sensor from the knuckle and the ABS housing assembly from the front parallel link.
- Remove the front parallel link bolt from the rear crossmember.
- Remove the front parallel link bolt from the rear knuckle.
- Remove the front parallel link.
