Front Parallel Link Removal And Installation: Installation

Install the front parallel link.
Install the front parallel link onto the rear knuckle with the bolt.
Tighten

Tighten the front parallel link-to-knuckle bolt to 120 N.m (89 Ft. Lbs.).
Install the front parallel link onto the rear cross-member with the bolt. Do not tighten.

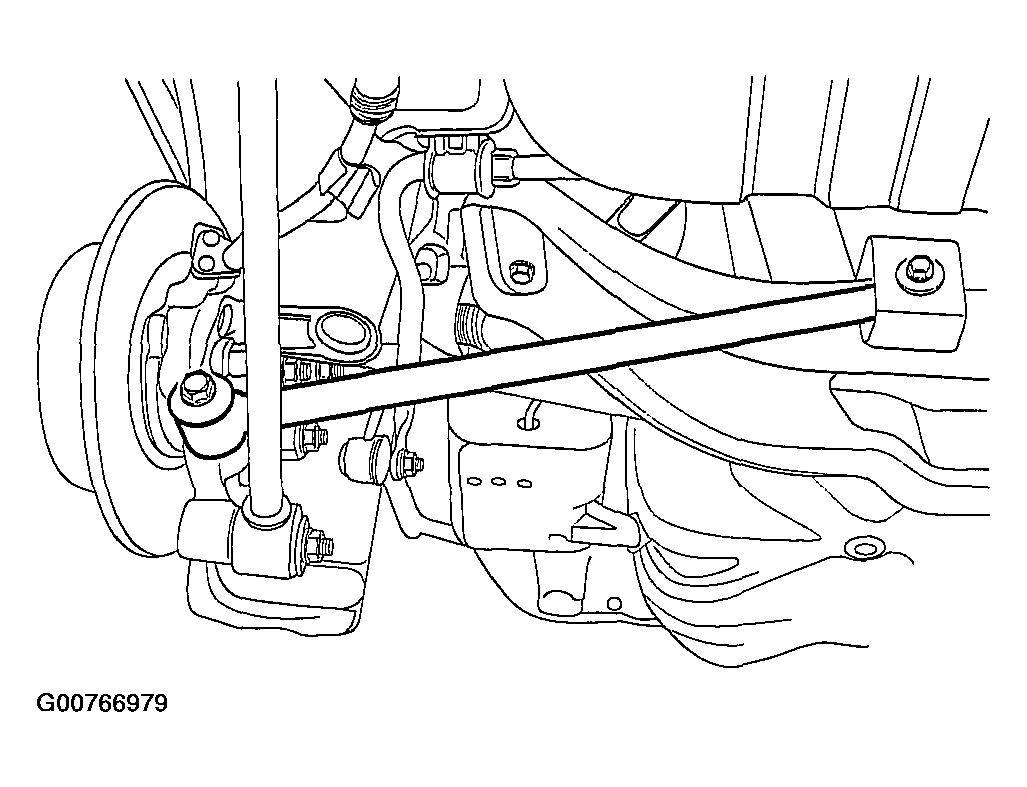

Fig 1: Installing The Front Parallel Link
Courtesy of SUZUKI OF AMERICA CORP.
For vehicles equipped with the antilock braking system, install the ABS housing assembly onto the front parallel link and the ABS sensor line into the knuckle.
Install the wheel.
Perform a rear toe adjustment. Refer to ADJUSTMENTS in SPECIFICATIONS & PROCEDURES - FORENZA article.
