CROSSMEMBER Removal And Installation: Removal
- Raise and suitably support the vehicle.
- Remove the front parallel link bolt from the crossmember. Refer to FRONT PARALLEL LINK REMOVAL AND INSTALLATION
.
- Remove the rear parallel link bolt from the crossmember. Refer to REAR PARALLEL LINK REMOVAL AND INSTALLATION
.

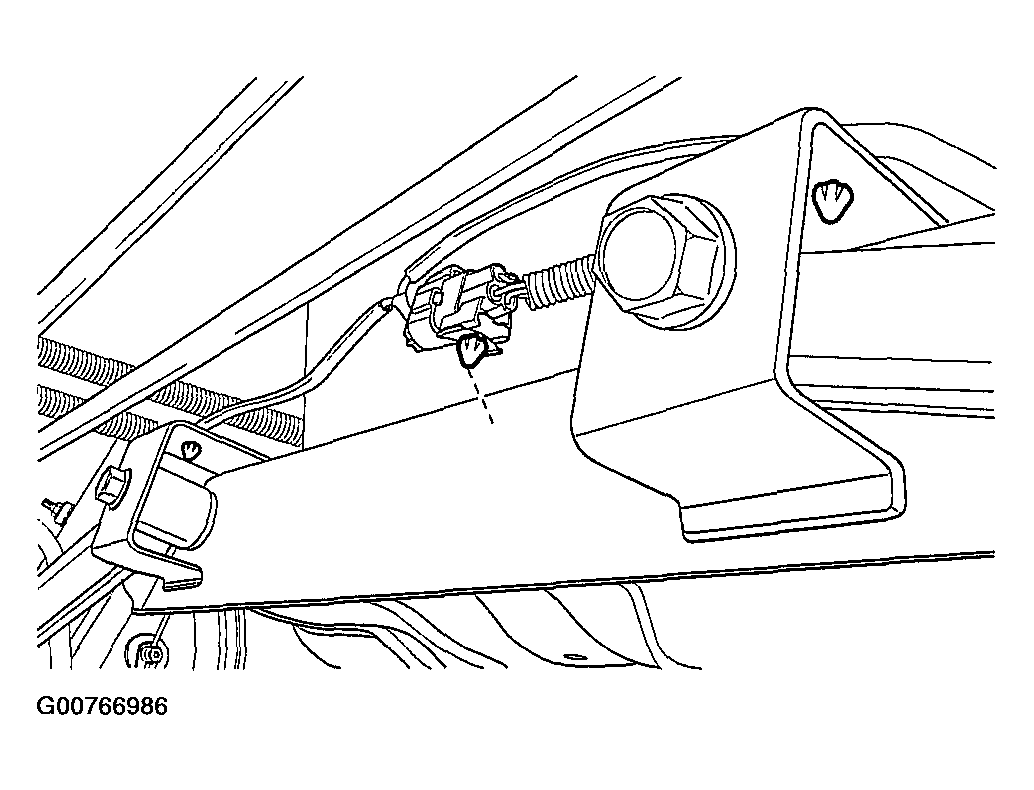

- Remove the rear wheel speed sensor wiring from the crossmember.
Courtesy of SUZUKI OF AMERICA CORP.

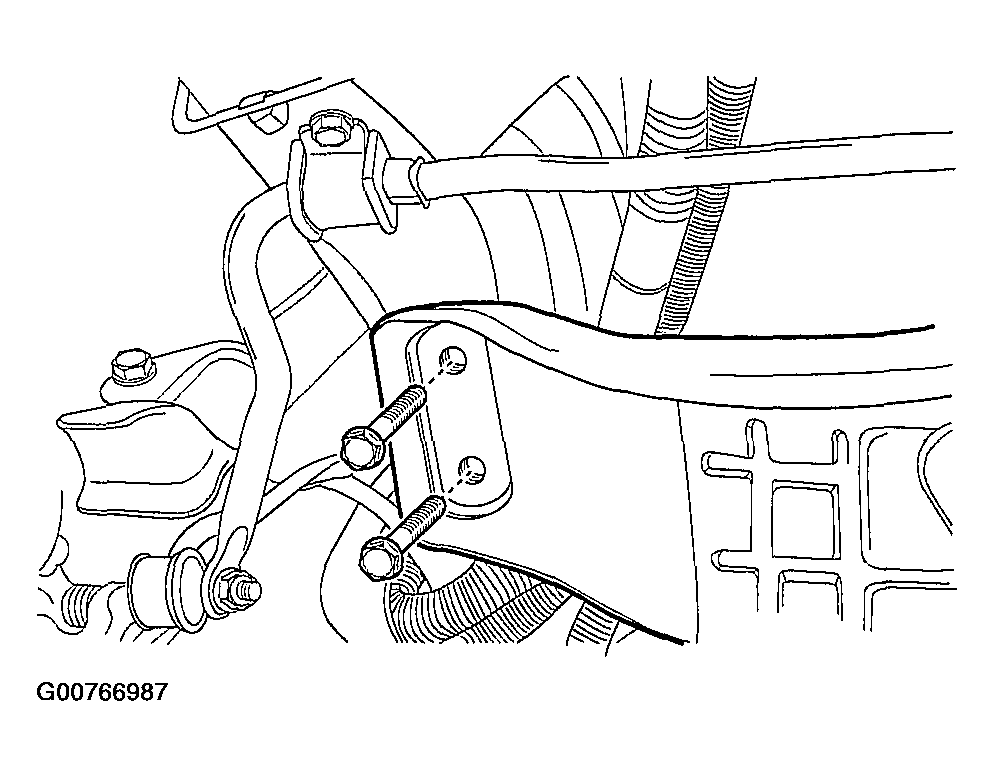

- Remove the crossmember-to-body bolts.
- Remove the crossmember.
Courtesy of SUZUKI OF AMERICA CORP.
