Strut Assembly: Assembly

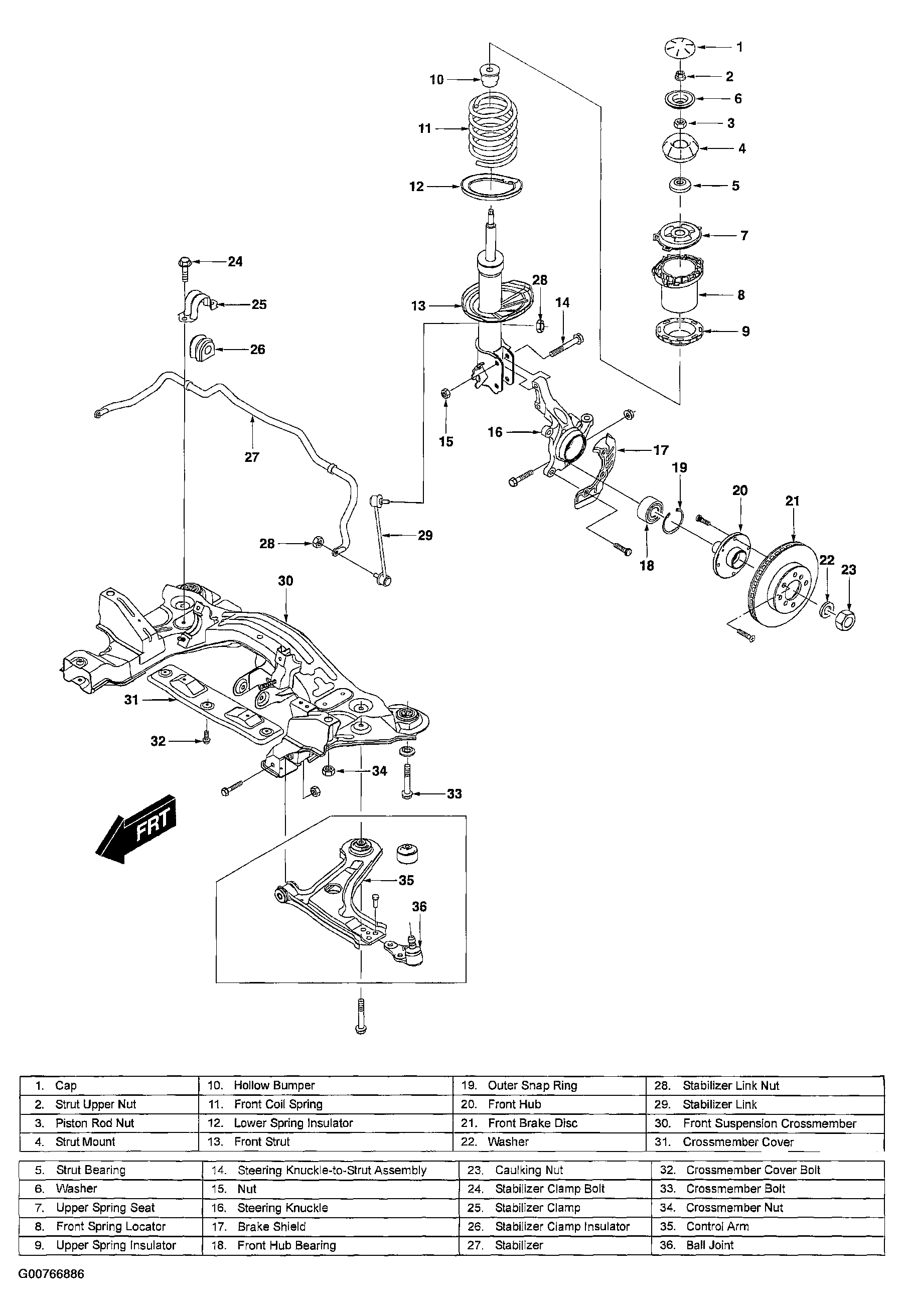

  1. Install the lower ring insulator and the spring. See Figure .
  2. Compress the spring using the Spring Compressor (KM-329-A).
  3. Install the hollow bumper, the upper ring insulator, the front spring locator, the upper spring seat, the upper strut mount, and the mount bearing. Be sure the upper spring seat is clipped to the front spring locator.
  4. Install the piston rod nut. See Figure . Tighten the piston rod nut to 75 N.m (55 Ft. Lbs.).
  5. Release the spring compresser.
