Hub And Bearing: Installation

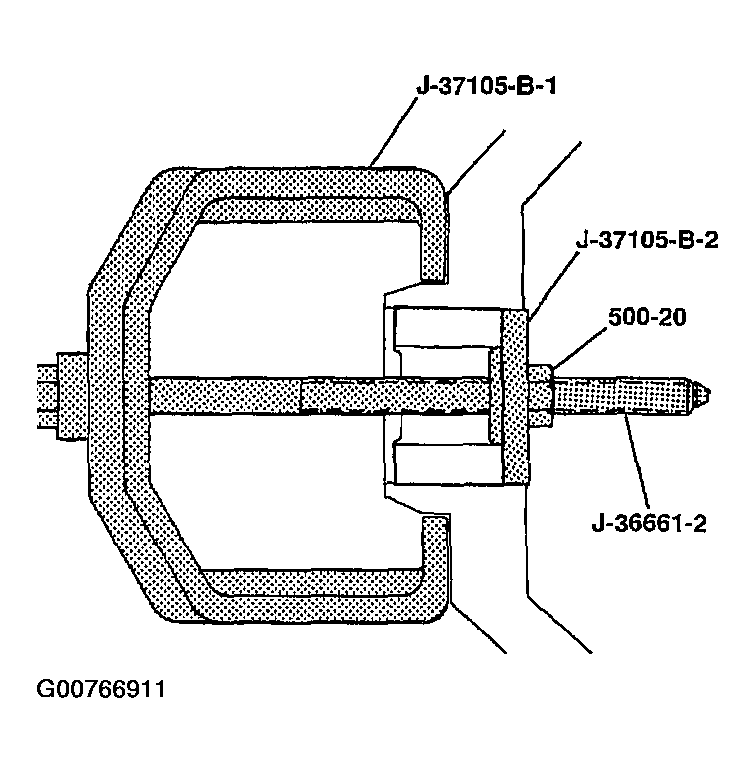

Install the outer snap ring and push the wheel bearing into place with the Support Bridge J-37105-B-1, the Bearing Adapter J-37105-B-2, the Hex Nut 500-20, and the Forcing Screw J-36661-2. See Figure .
Install the brake shield.
Push the wheel hub into place with the Hub Adapter J-37105-B-3, the Bearing Adapter J-37105-B-2, the Hex Nut 500-20, and the Forcing Screw J-36661-2. See Fig 1 .
Install the drive axle into the front wheel hub. See KNUCKLE ASSEMBLY .

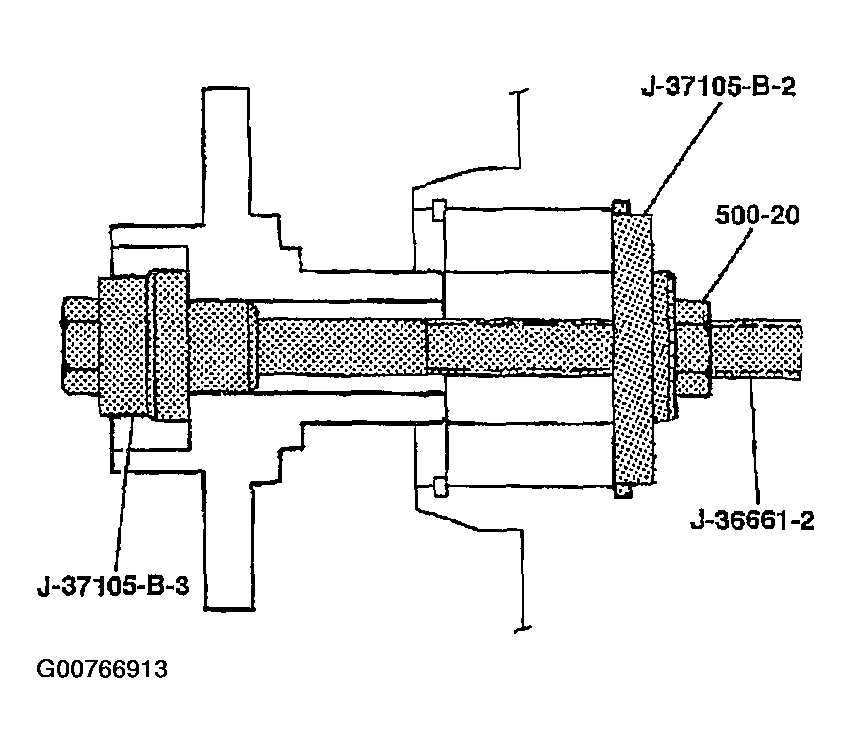

Fig 1: Pushing The Wheel Hub Into Place
Courtesy of SUZUKI OF AMERICA CORP.
