Control Arm: Removal
- Raise and suitably support the vehicle. Let the control arms hang free.
- Remove the wheel.
- Remove the pinch bolt and the nut from the ball joint. See Figure .

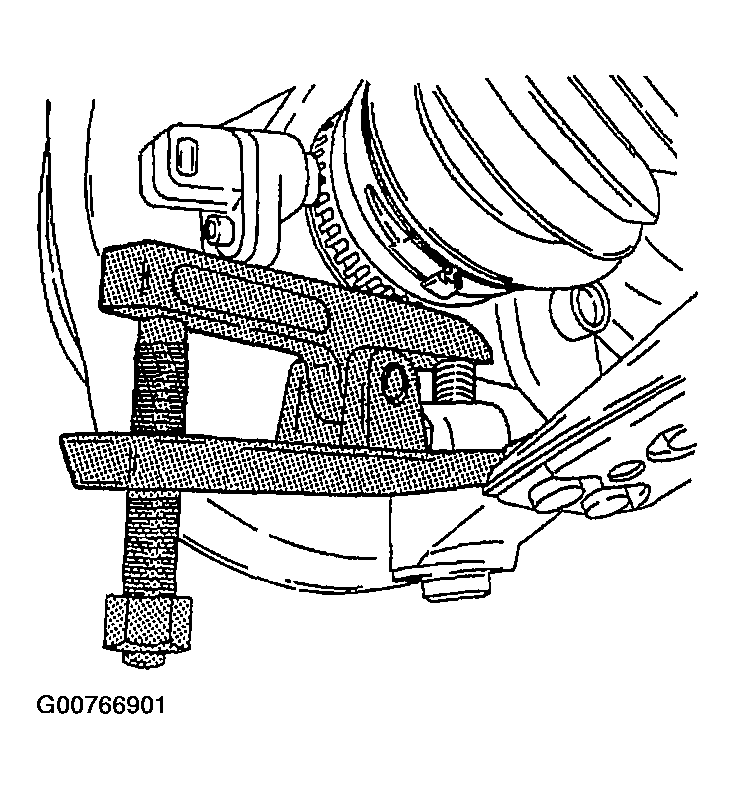

- Disconnect the ball joint from the knuckle assembly. See Figure .
- Remove the control arm-to-crossmember bolts. See Fig 1 .
- Remove the control arm from the vehicle.
