Control Arm Bushings: Assembly

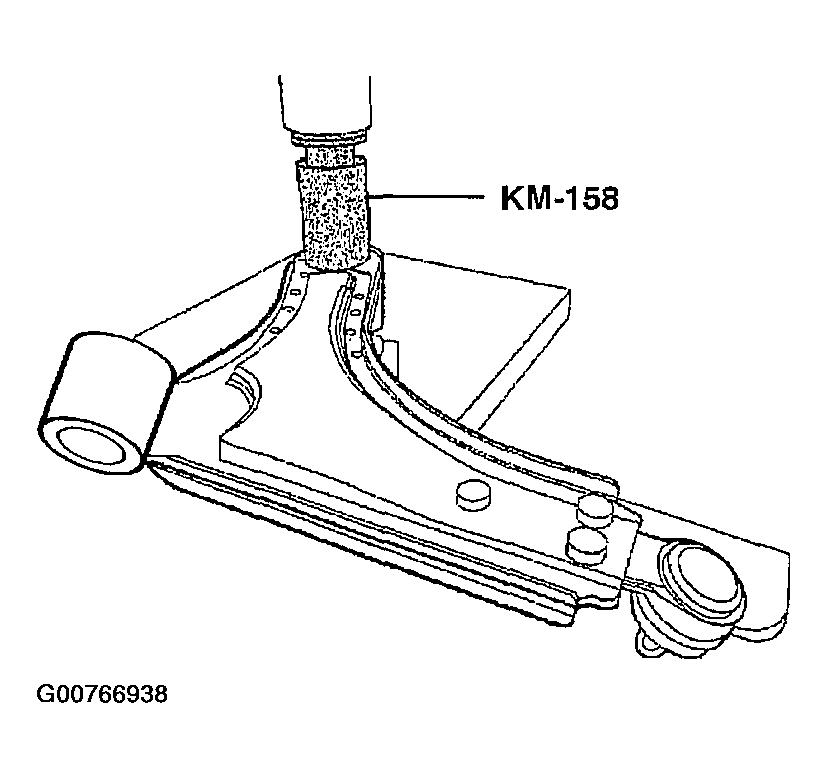

  1. Press the control arm rear damping bushing into the control arm using a press and the remover/installer KM-158. See Figure .
  2. Install the split sleeves into the rear control arm bushing. See Figure .
  3. Install the control arm. See CONTROL ARM  .
