CROSSMEMBER Assembly: Installation

  1. Install the crossmember assembly.

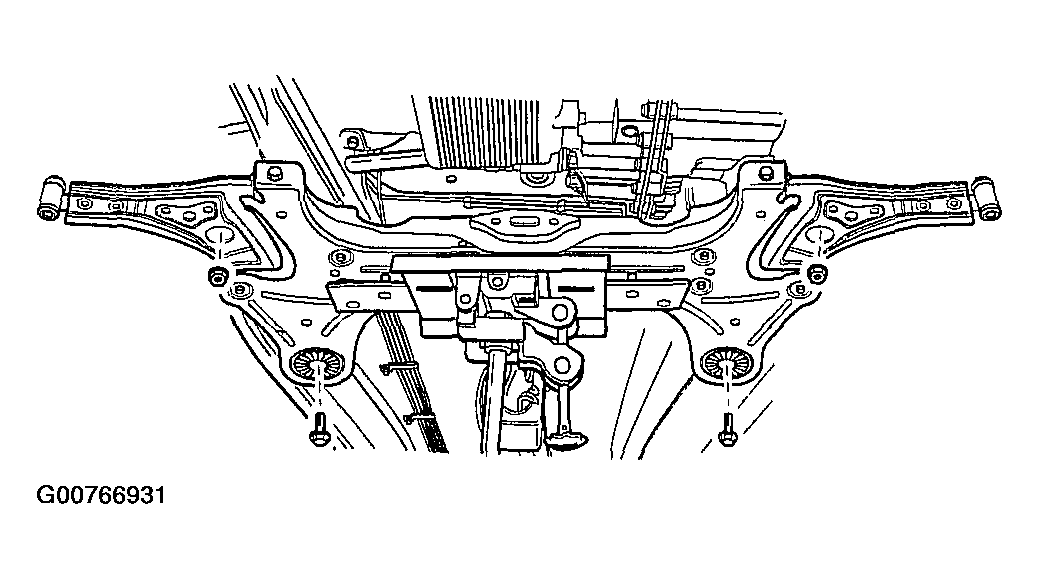

  2. Install the rear crossmember-to-body bolts. See Figure . Tighten the rear crossmember-to-body bolts to 196 N.m (145 Ft. Lbs.).
  3. Install the front crossmember-to-body bolts. Tighten the front crossmember-to-body bolts to 130 N.m (96 Ft. Lbs.).
  4. Install the bolts and nuts on the steering gear mounting brackets.
  5. Install the return line bolt into the clip on the crossmember.
  6. Install the crossmember link-to-transaxle bracket nut. Tighten the crossmember link-to-transaxle bracket nut to 169 N.m (125 Ft. Lbs.).
  7. Connect the stabilizer link to the strut assembly. See STABILIZER LINK  .
  8. Connect the ball joint to the knuckle assembly. See KNUCKLE ASSEMBLY  .
  9. Connect the tie rod from the knuckle assembly.
  10. Install the exhaust pipe into the vehicle.
  11. Install the wheels.
  12. Lower the vehicle.
