Serpentine Accessory Drive Belt Removal and Installation: Installation

Use a wrench to turn the tensioner bolt clockwise, compressing the tensioner, and releasing the tension on the serpentine accessory drive belt.
With the wrench in place on the tensioner bolt, loop the serpentine accessory drive belt loosely over the pulleys.

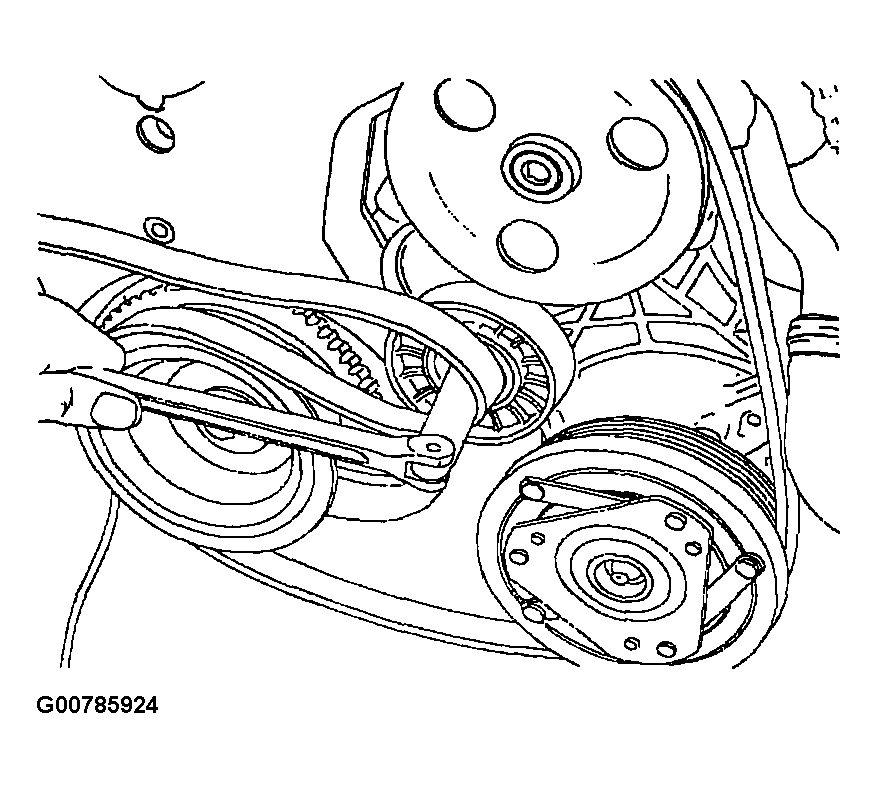

Fig 1: Installing The Serpentine Accessory Drive Belt
Courtesy of SUZUKI OF AMERICA CORP.
Slip the belt over the tensioner.
Remove the wrench from the tensioner bolt and the belt will tighten itself.
Install the air filter housing assembly into the vehicle.
Install the air intake tube and the air filter housing assembly bolts.
Tighten

Tighten the air filter housing assembly bolts to 6 N.m (53 lb-in).

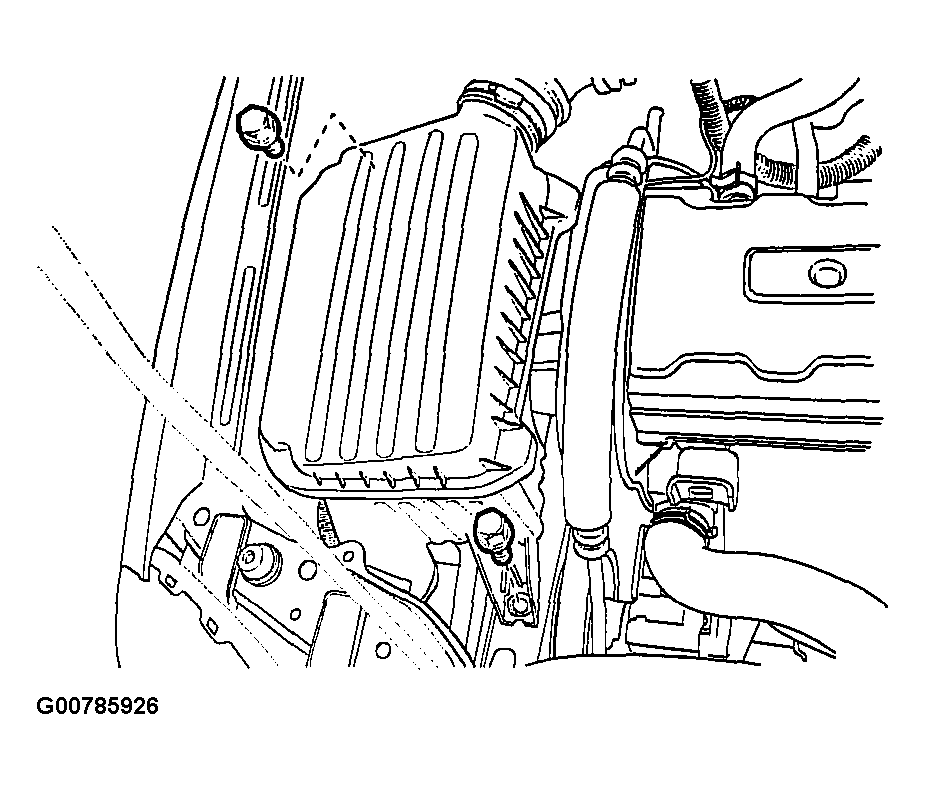

Fig 2: Installing The Air Filter Housing Assembly
Courtesy of SUZUKI OF AMERICA CORP.
