Rack Bearing Disassembly and Assembly: Disassembly

Remove the rack and pinion steering assembly from the vehicle. Refer to Rack and Pinion Assembly Removal and Installation .
Remove the adjuster plug locknut from the adjuster plug, and remove the adjuster plug from the housing with the rack guide spring cap wrench J-42459, or with a 19 mm allen wrench.

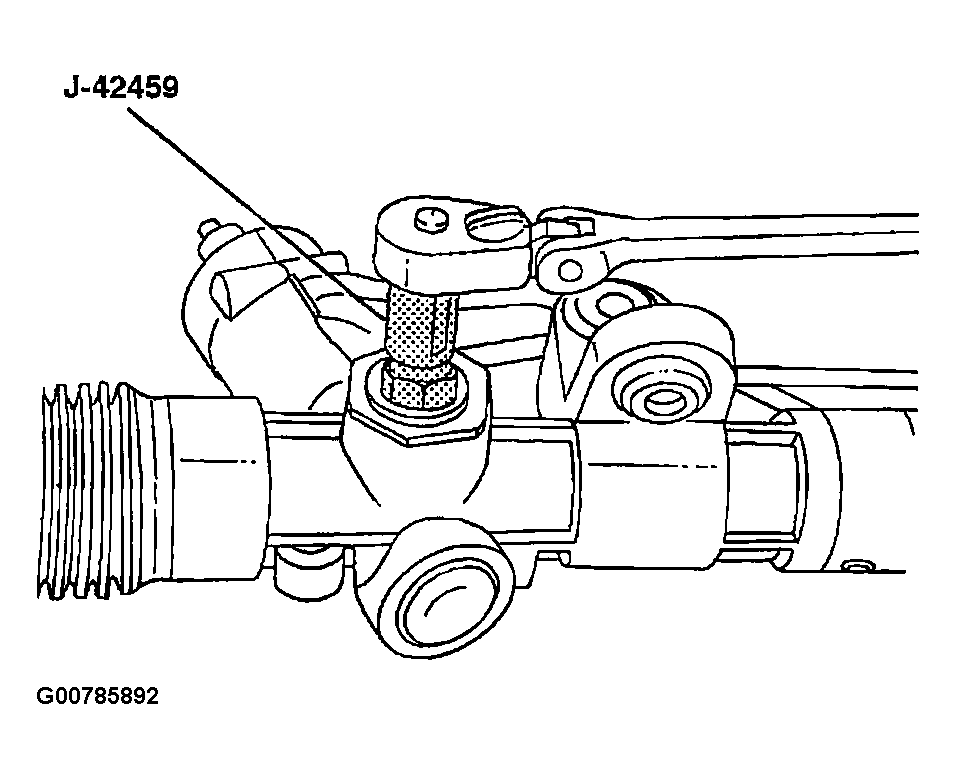

Fig 1: Removing The Adjuster Plug
Courtesy of SUZUKI OF AMERICA CORP.
Remove the adjuster spring and the rack bearing.

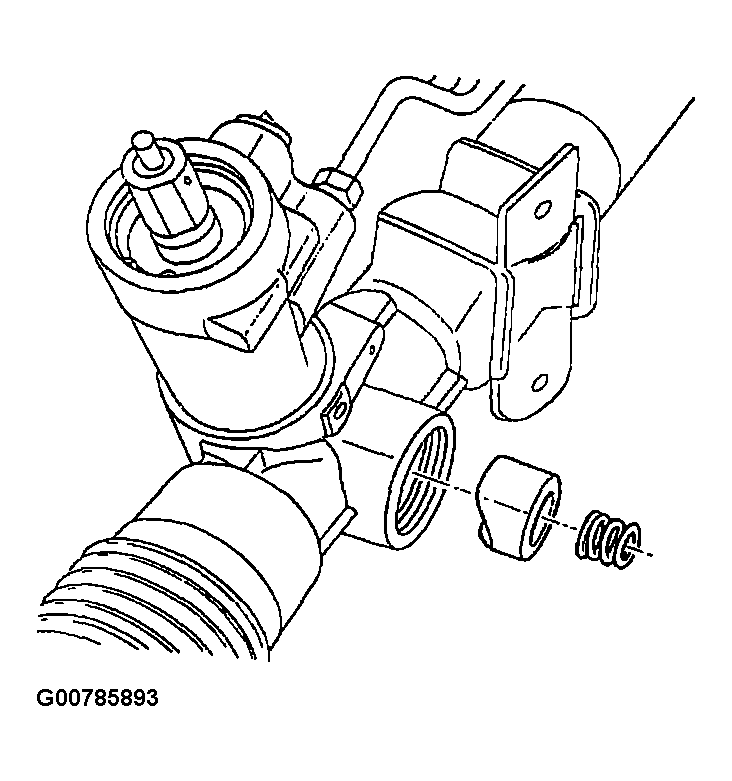

Fig 2: Removing The Adjuster Spring And The Rack Bearing
Courtesy of SUZUKI OF AMERICA CORP.
