Pump Assembly Removal and Installation: Removal

Remove the serpentine accessory drive belt. Refer to Serpentine Accessory Drive Belt Removal and Installation .
Disconnect the electrical connector at the Electronc Variable Orifice (EVO) solenoid actuator.

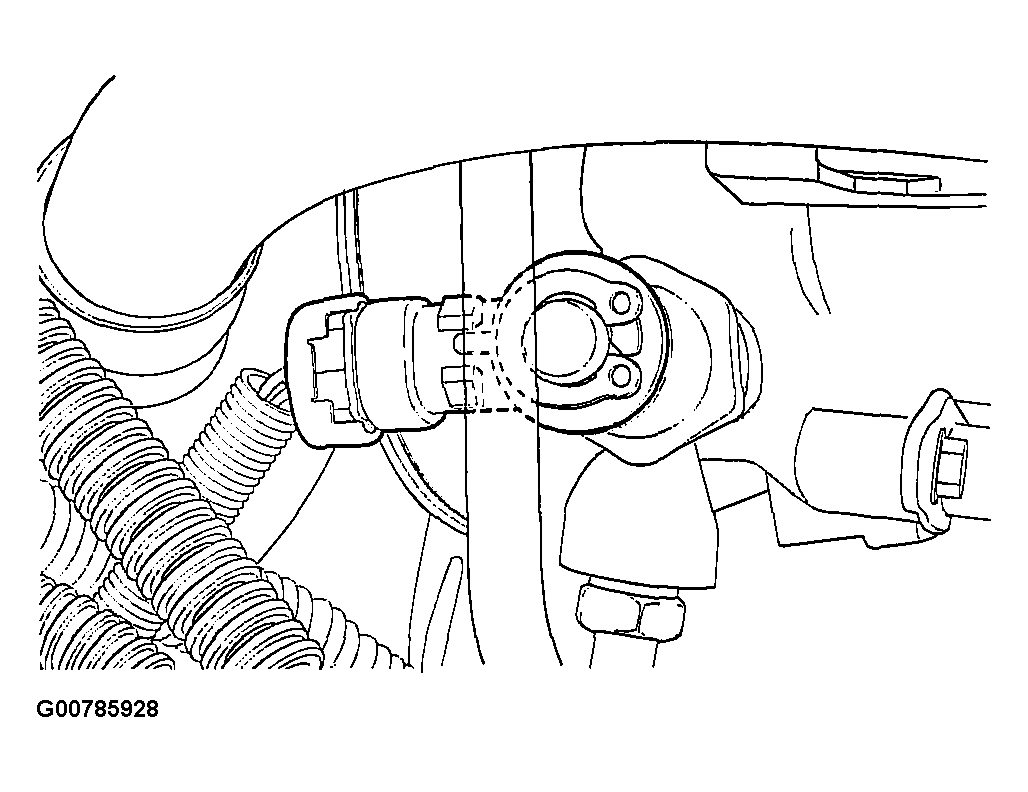

Fig 1: Disconnecting Solenoid Actuator Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Position a drain pan to catch the power steering fluid that will drain from the high-pressure hose after it is disconnected from the power steering pump.
Disconnect the high-pressure hose fitting from the power steering pump.
Position a drain pan to catch the power steering fluid that will drain from the supply hose after it is disconnected from the power steering pump.
Disconnect the supply hose from the power steering pump.

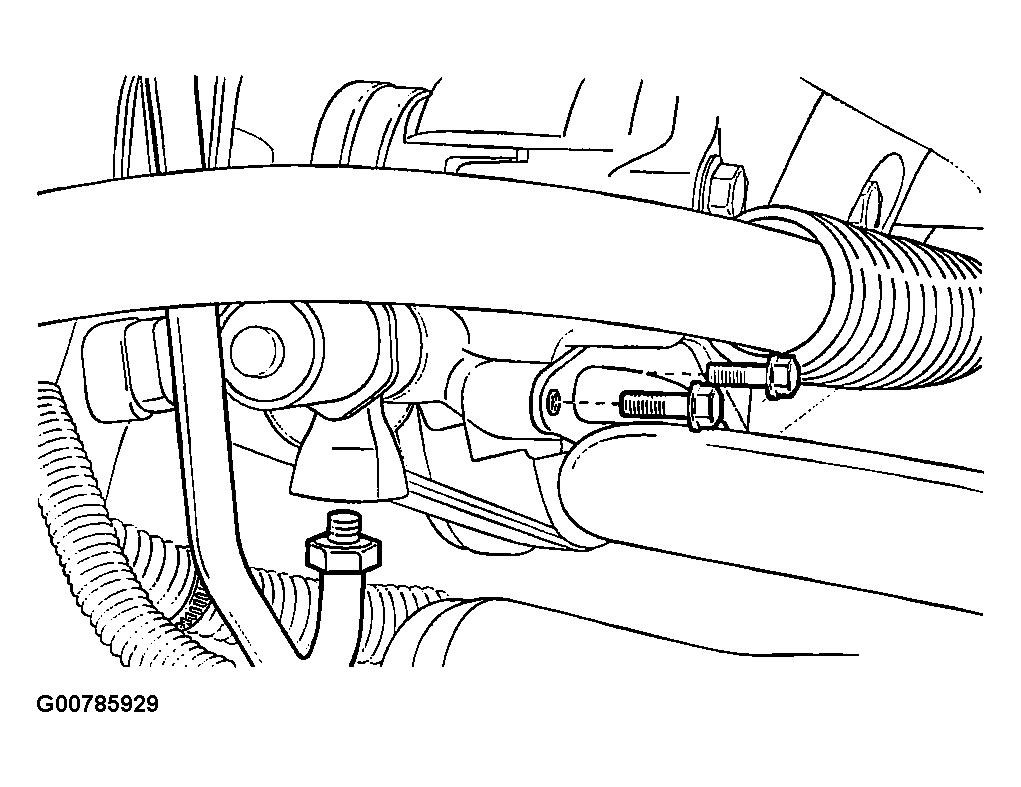

Fig 2: Disconnecting The Hoses From The Power Steering Pump
Courtesy of SUZUKI OF AMERICA CORP.
Remove the bolt from the front right side of the power steering pump.

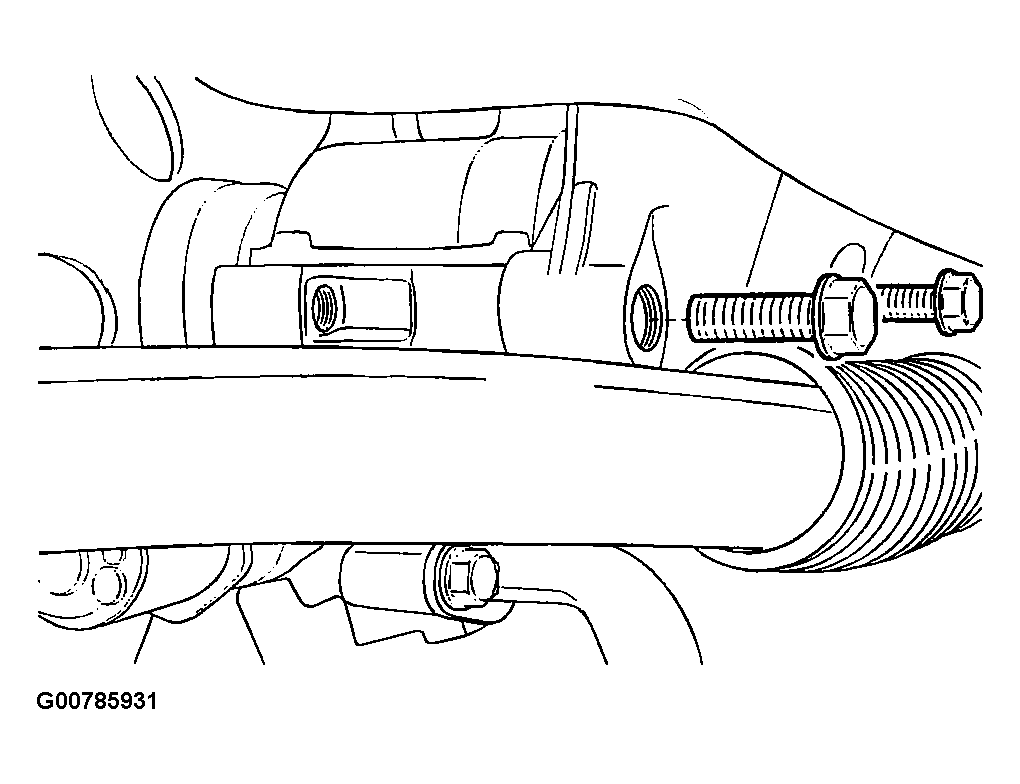

Fig 3: Removing The Front Right Bolt From The Power Steering Pump
Courtesy of SUZUKI OF AMERICA CORP.
Remove the two power steering pump bolts and remove the power steering pump from the vehicle.

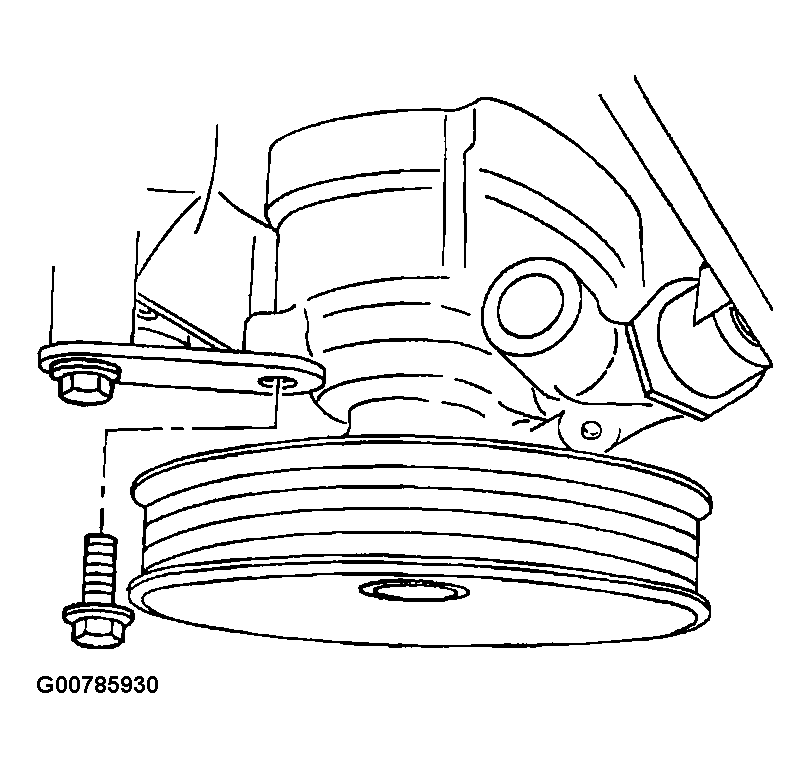

Fig 4: Removing The Two Power Steering Pump Bolts
Courtesy of SUZUKI OF AMERICA CORP.
