Pump Assembly Removal and Installation: Installation

Install the power steering pump into the vehicle and install the two power steering pump bolts.

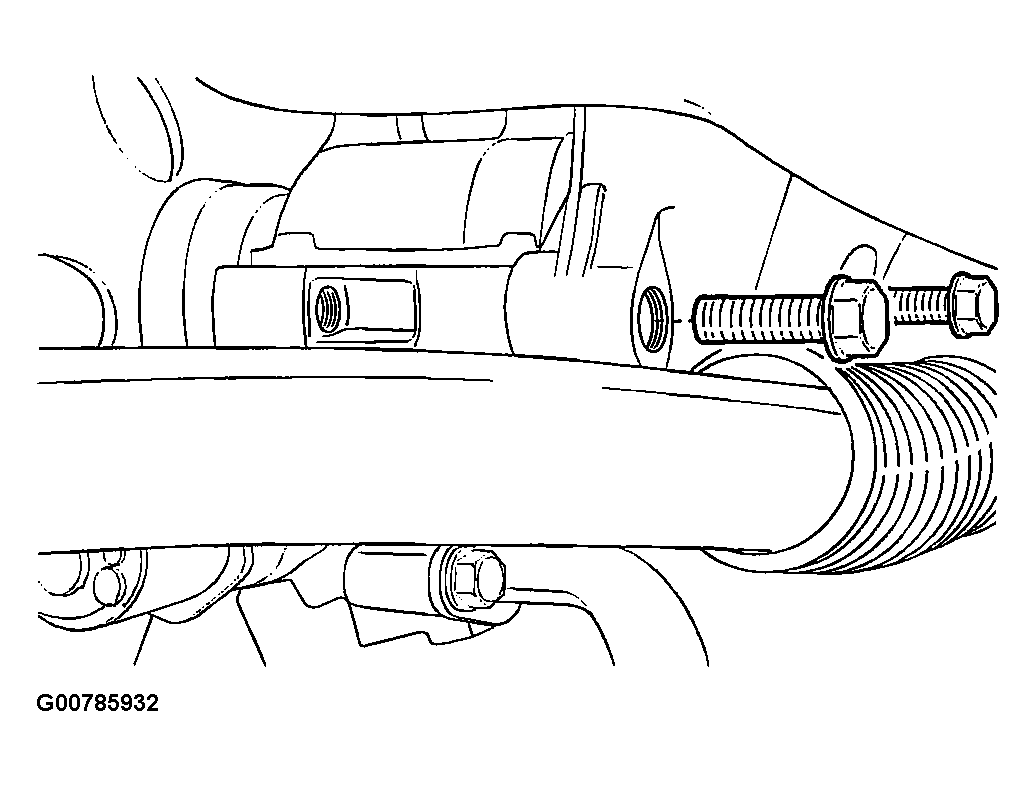

Fig 1: Installing The Two Power Steering Pump Bolts
Courtesy of SUZUKI OF AMERICA CORP.

Tighten

Tighten the two power steering pump bolts to 25 N.m (18 lb-ft).
Swing the power steering pump bracket down and install the front right side bolt.
Tighten

Tighten the both of the right side power steering pump bracket bolts to 35 N.m (26 lb-ft).
Connect the supply hose to the power steering pump.
Connect the high-pressure hose fitting to the power steering pump.

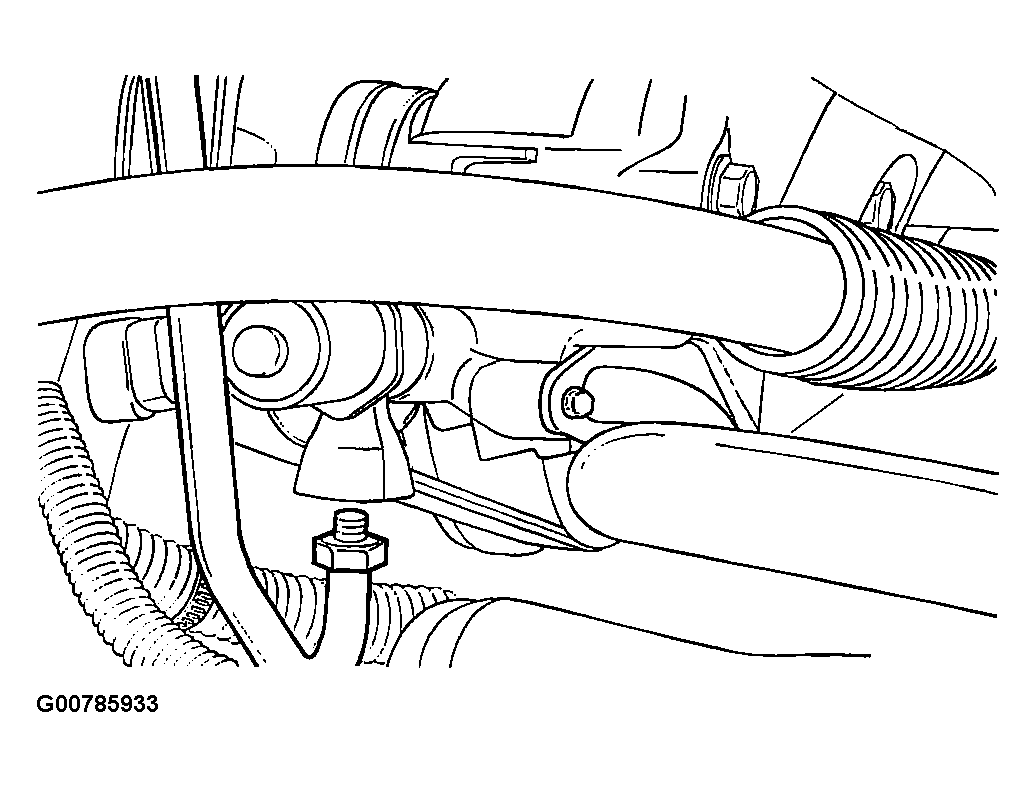

Fig 2: Connecting The High-Pressure Hose Fitting To The Power Steering Pump
Courtesy of SUZUKI OF AMERICA CORP.

Tighten

Tighten the high-pressure hose fitting to 28 N.m (21 lb-ft).
Connect the electrical connector at the Electronic Variable Orifice (EVO) solenoid actuator.

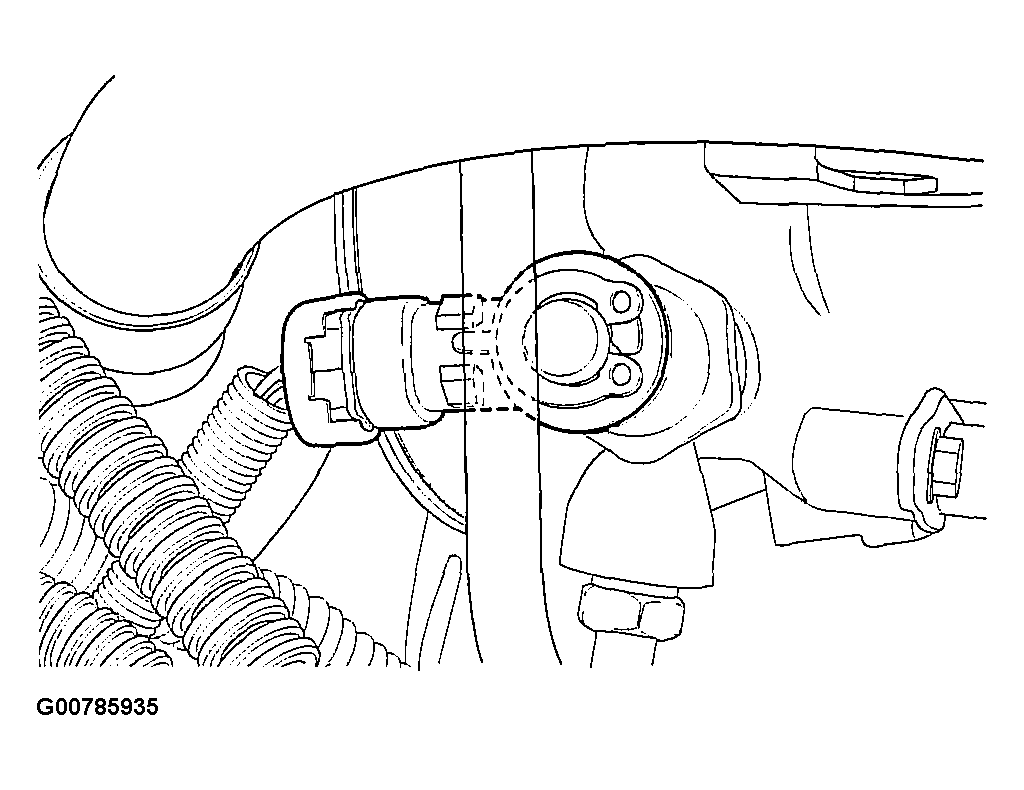

Fig 3: Connecting Solenoid Actuator Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Install the serpentine accessory drive belt. Refer to Serpentine Accessory Drive Belt Removal and Installation .

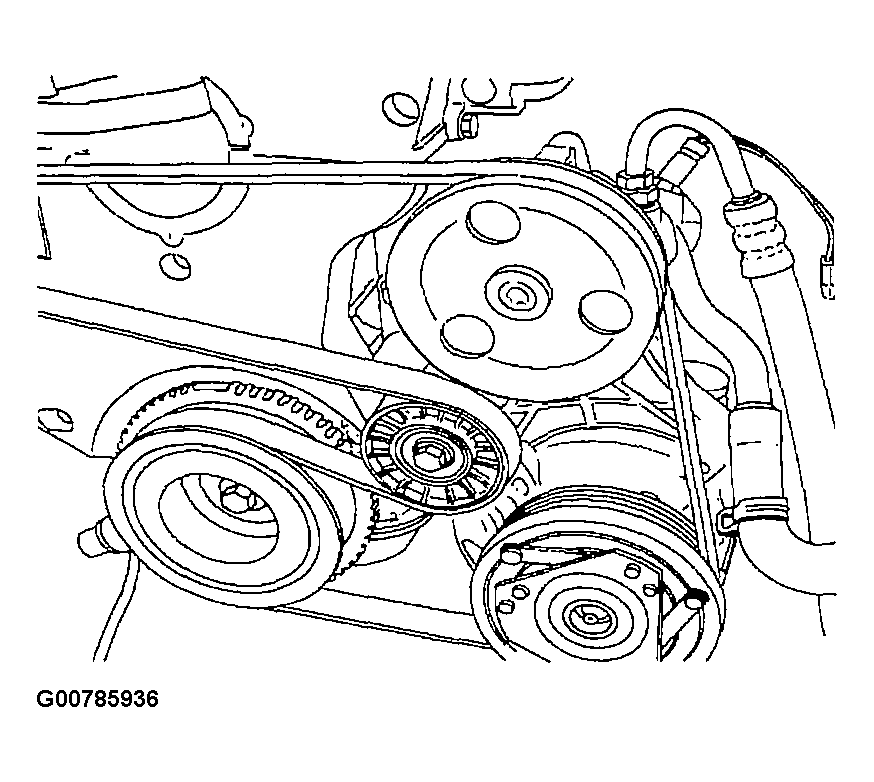

Fig 4: Installing The Serpentine Accessory Drive Belt
Courtesy of SUZUKI OF AMERICA CORP.
Refill the power steering fluid. Refer to Checking and Adding Fluid .
Bleed the power steering system. Refer to Bleeding the Power Steering System .
