Outer Tie Rod Removal and Installation: Installation

  1. Reposition the adjusting nut to the marks on the inner tie rod.
  2. Install the outer tie rod by twisting it onto the inner tie rod.

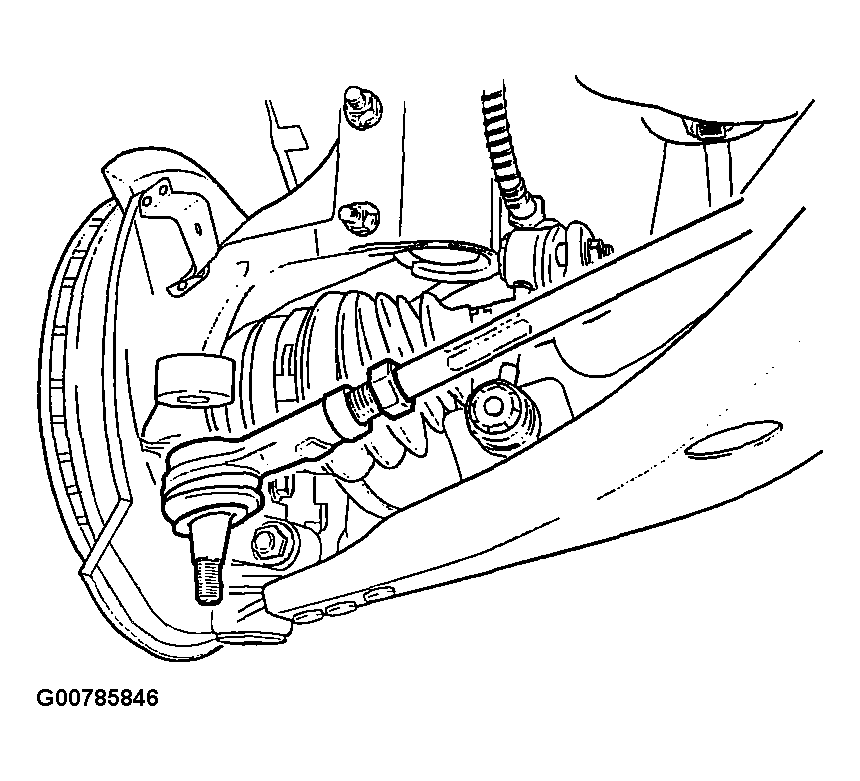

    Fig 1: Installing The Outer Tie Rod
    G00785846Courtesy of SUZUKI OF AMERICA CORP.
  3. Connect the outer tie rod to the steering knuckle.
  4. Perform a front toe adjustment. Refer to TOE-IN ADJUSTMENT .
  5. Tighten the adjusting nut.

    Tighten

    Tighten the outer tie rod adjusting nut to 64 N.m (47 lb-ft).

  6. Install the outer tie rod nut.

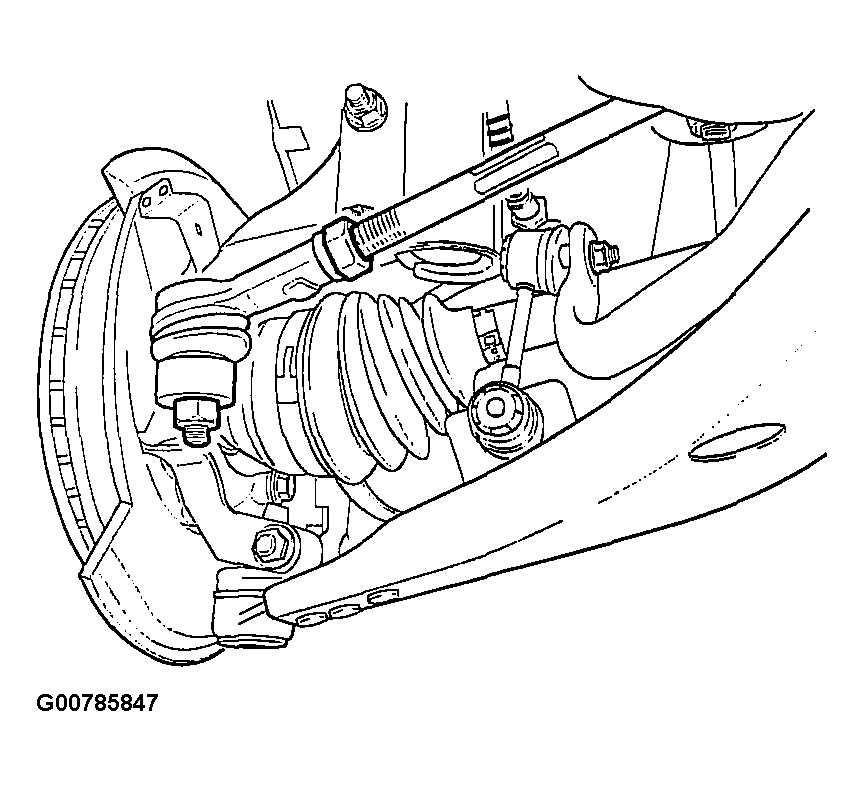

    Fig 2: Installing The Outer Tie Rod Nut
    G00785847Courtesy of SUZUKI OF AMERICA CORP.

    Tighten

    Tighten the outer tie rod nut to 50 N.m (37 lb-ft).

  7. Install the wheel.
