Hoses and Pipes Removal and Installation: Removal

Siphon the power steering fluid from the fluid reservoir.
Disconnect the pressure line pipe and the supply line hose from the inlet and outlet connections on the power steering pump.

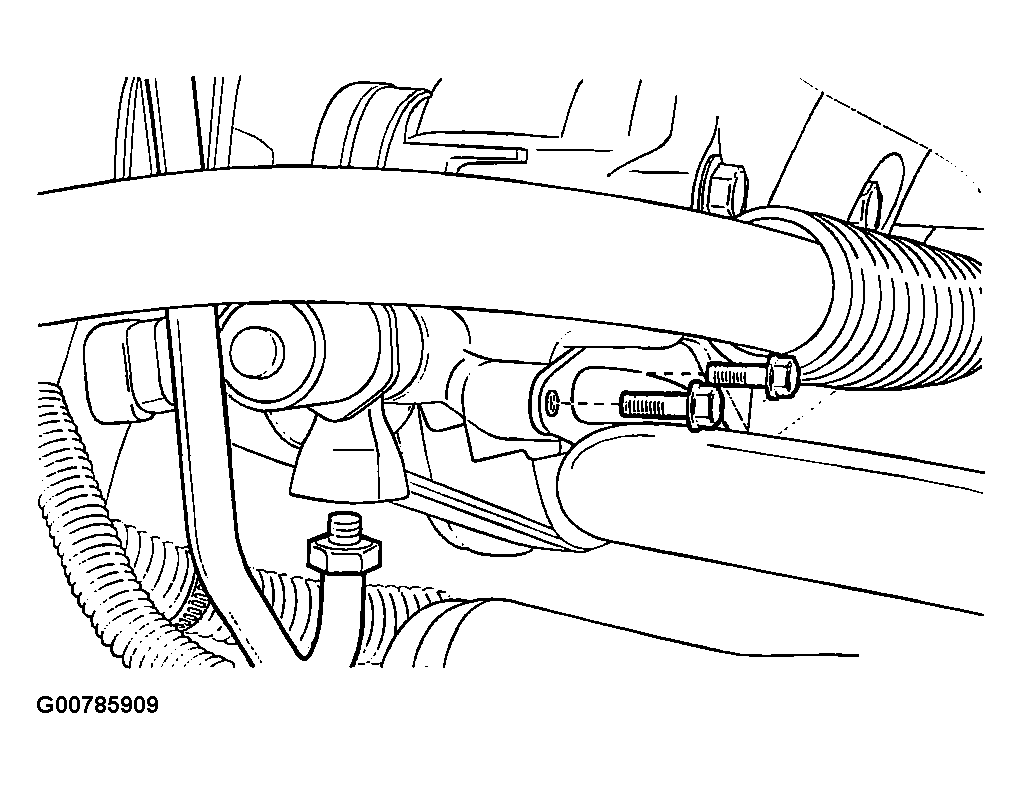

Fig 1: Disconnecting The Pipe And The Hose From The Power Steering Pump
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the return and supply line from the fluid reservoir.

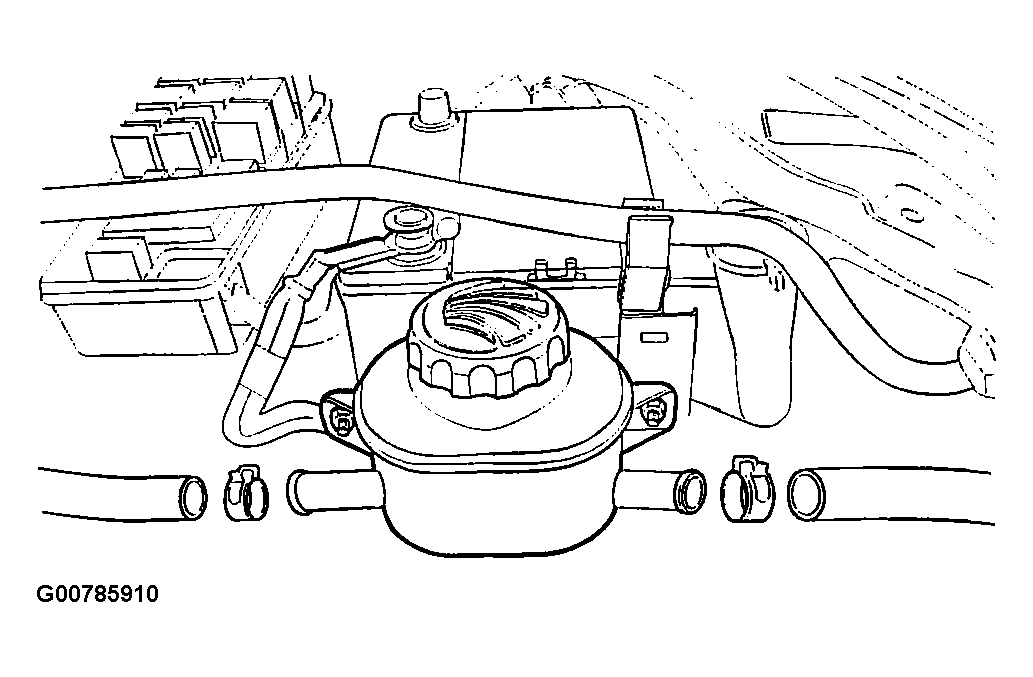

Fig 2: Disconnecting The Lines From The Fluid Reservoir
Courtesy of SUZUKI OF AMERICA CORP.
Loosen the retaining clip located above the alternator and position it away from the pressure line.

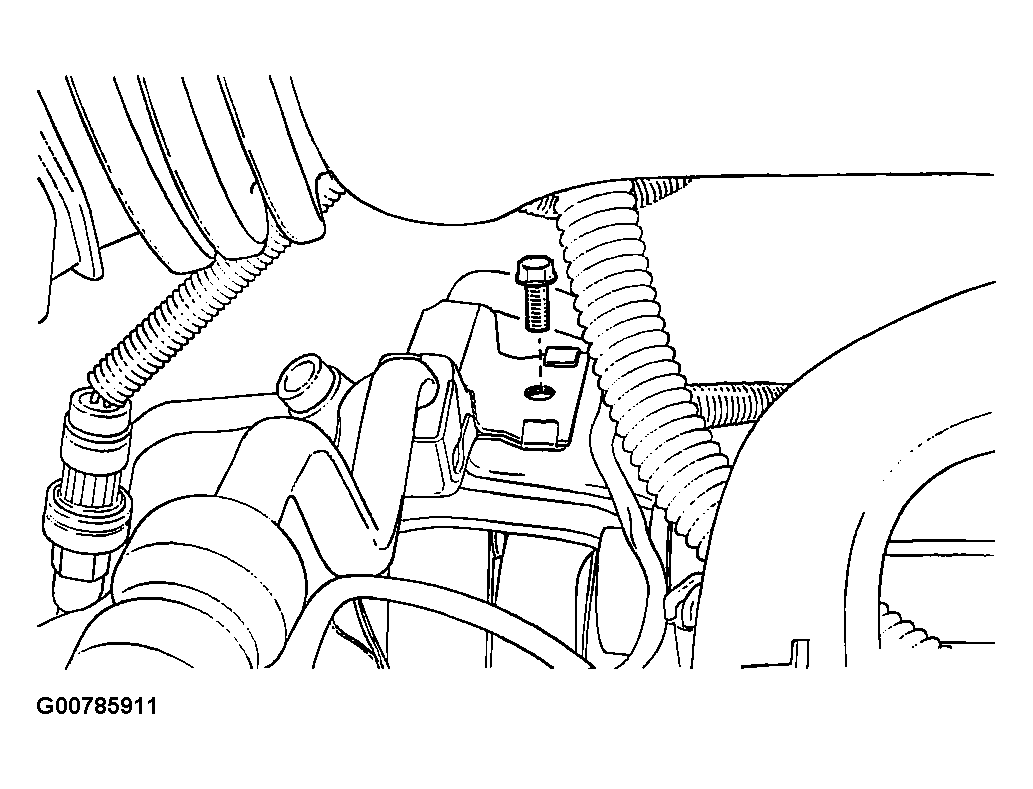

Fig 3: Loosening The Retaining Clip
Courtesy of SUZUKI OF AMERICA CORP.
Raise and suitably support the vehicle.
Disconnect the pressure line from the power steering gear inlet.
Disconnect the return line outlet pipe from the power steering gear.

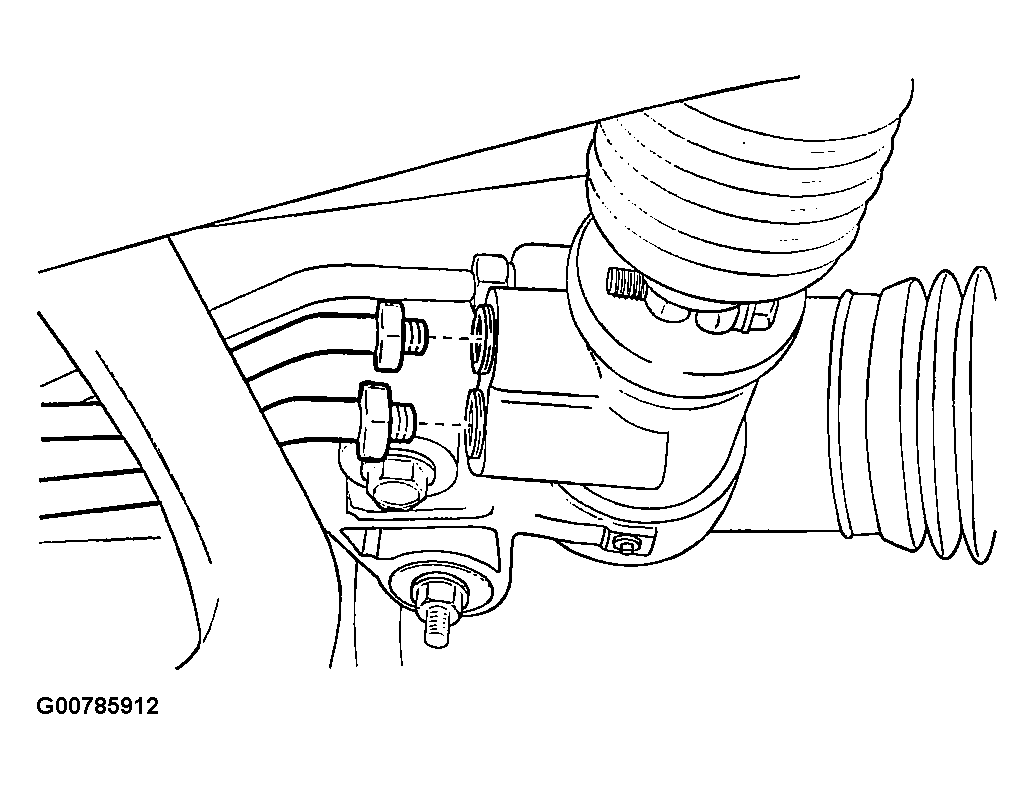

Fig 4: Disconnecting The Line And Pipe From The Power Steering Gear
Courtesy of SUZUKI OF AMERICA CORP.
Remove the return line from the clip on the crossmember.

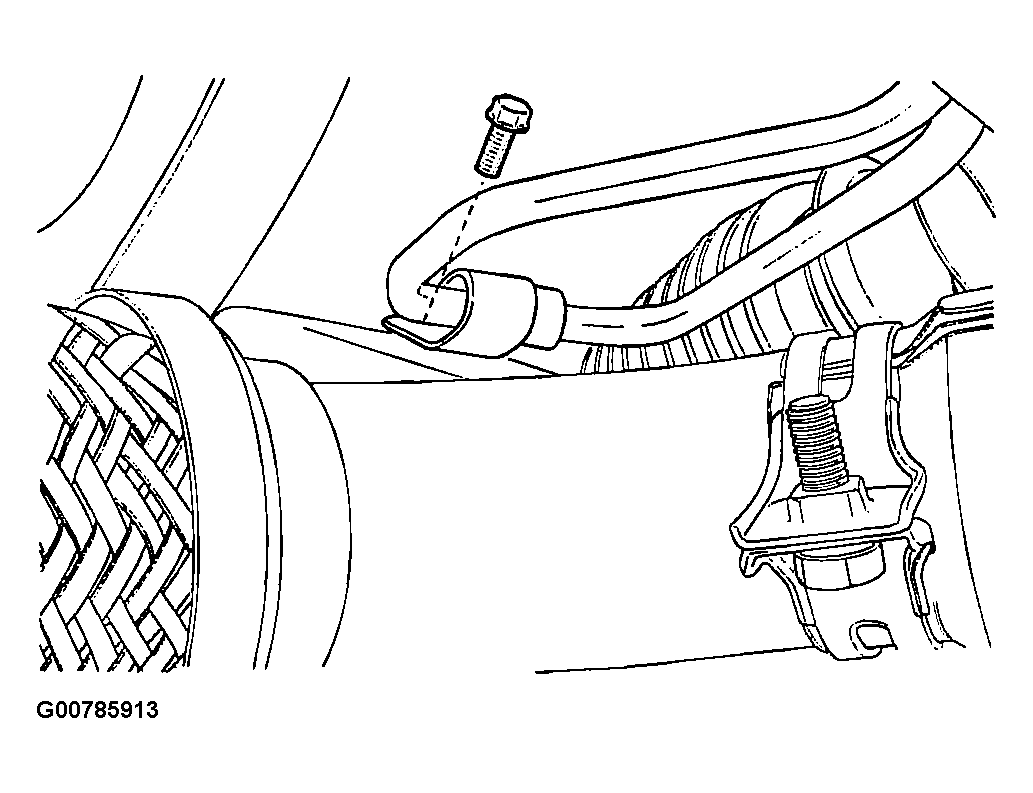

Fig 5: Removing The Return Line From The Clip On The Crossmember
Courtesy of SUZUKI OF AMERICA CORP.
Remove the bolts from each of the two clips on the radiator.
Remove all the hoses and pipes from the vehicle.
Lower the vehicle.

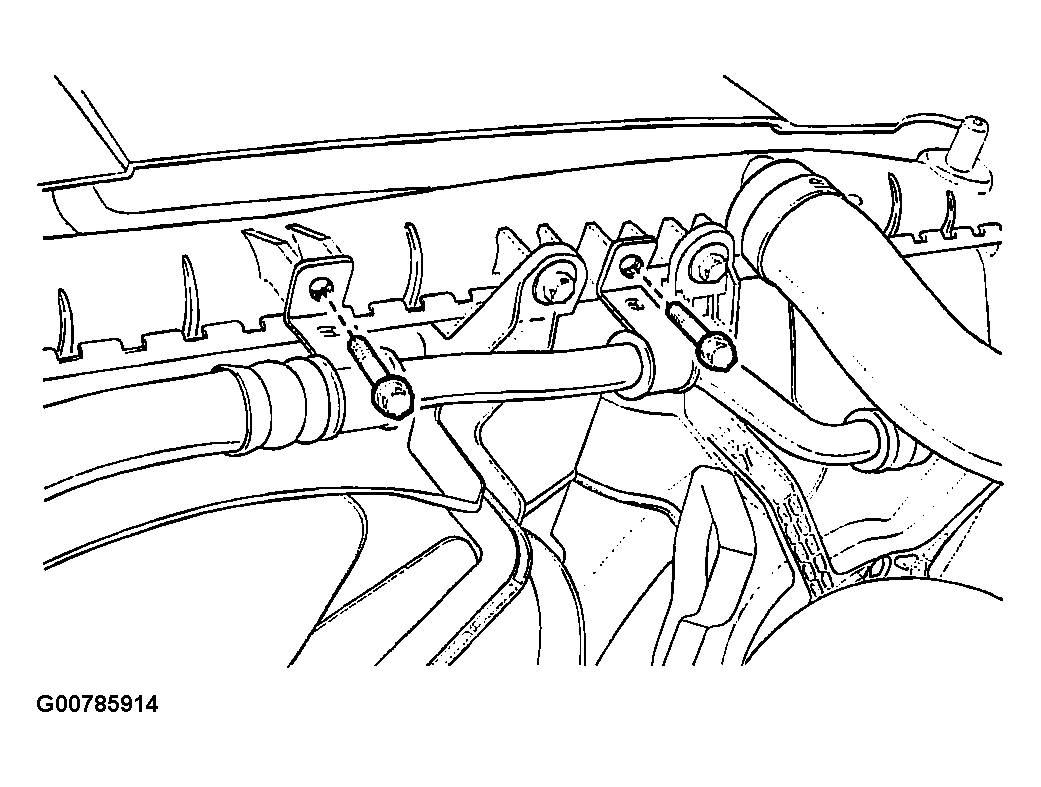

Fig 6: Removing The Bolts From Radiator
Courtesy of SUZUKI OF AMERICA CORP.
