Full Assist at All Times

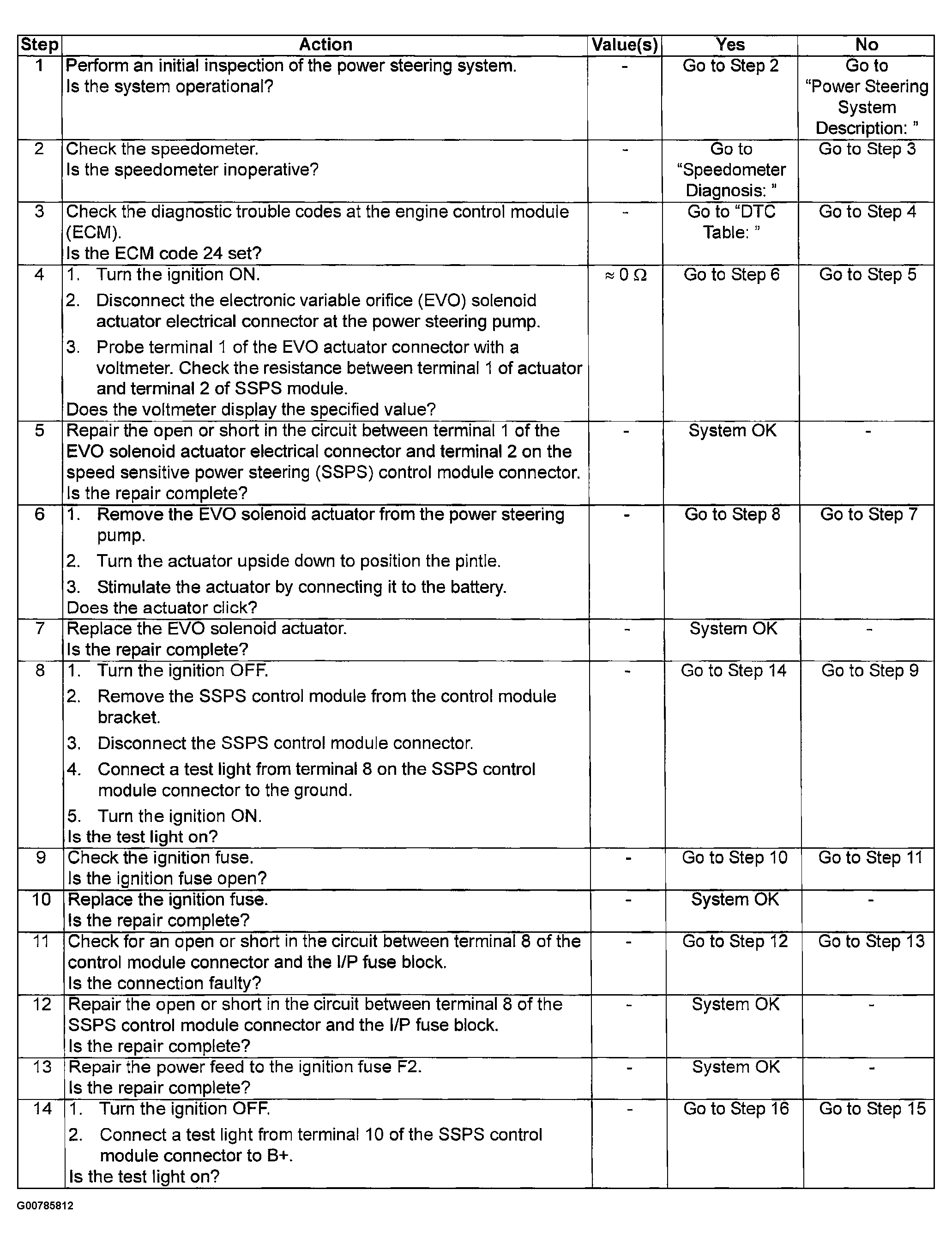

Fig 1: Full Assist at All Times Chart (1 Of 2)
G00785812Courtesy of SUZUKI OF AMERICA CORP.

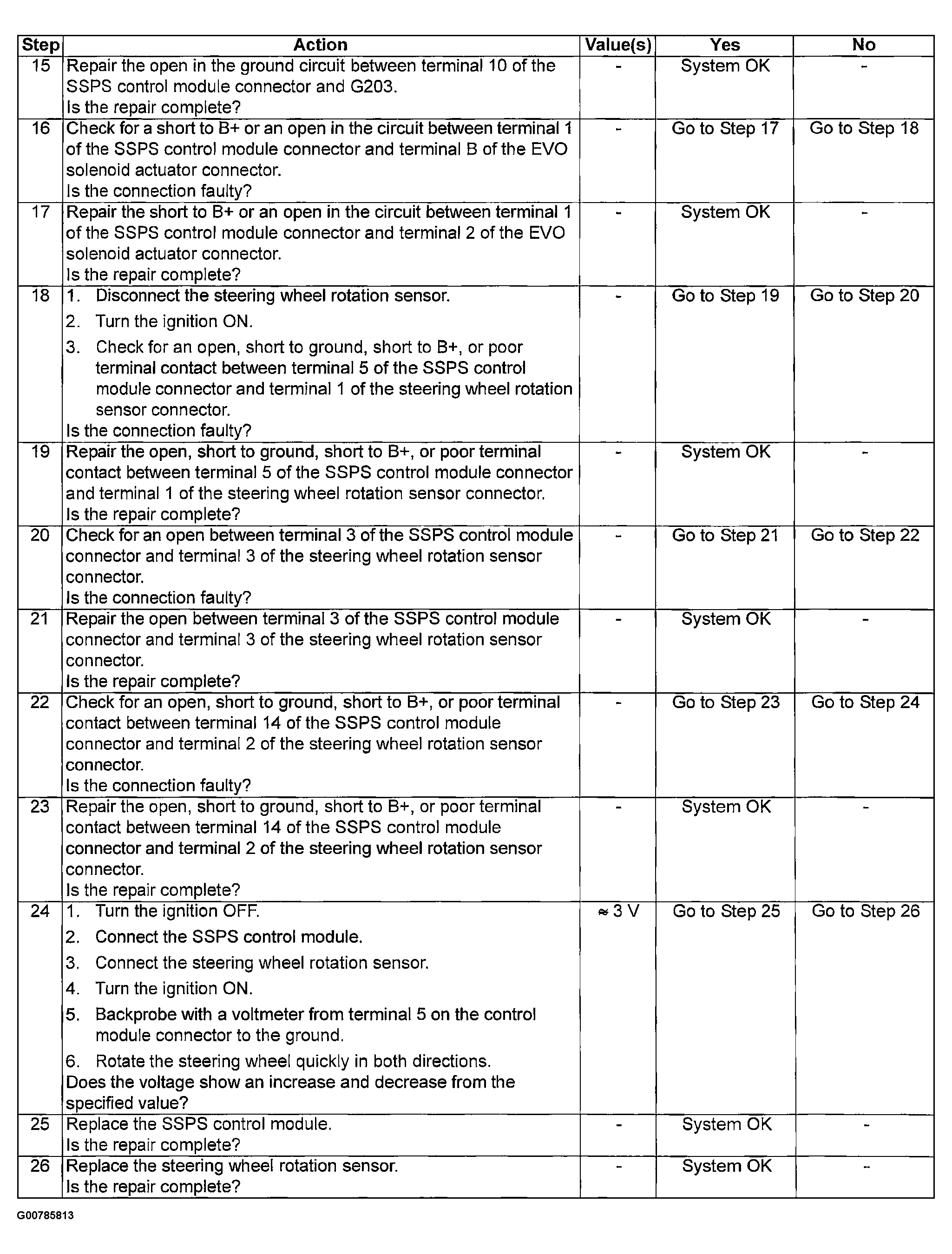

Fig 2: Full Assist at All Times Chart (2 Of 2)
G00785813Courtesy of SUZUKI OF AMERICA CORP.
