Test Description

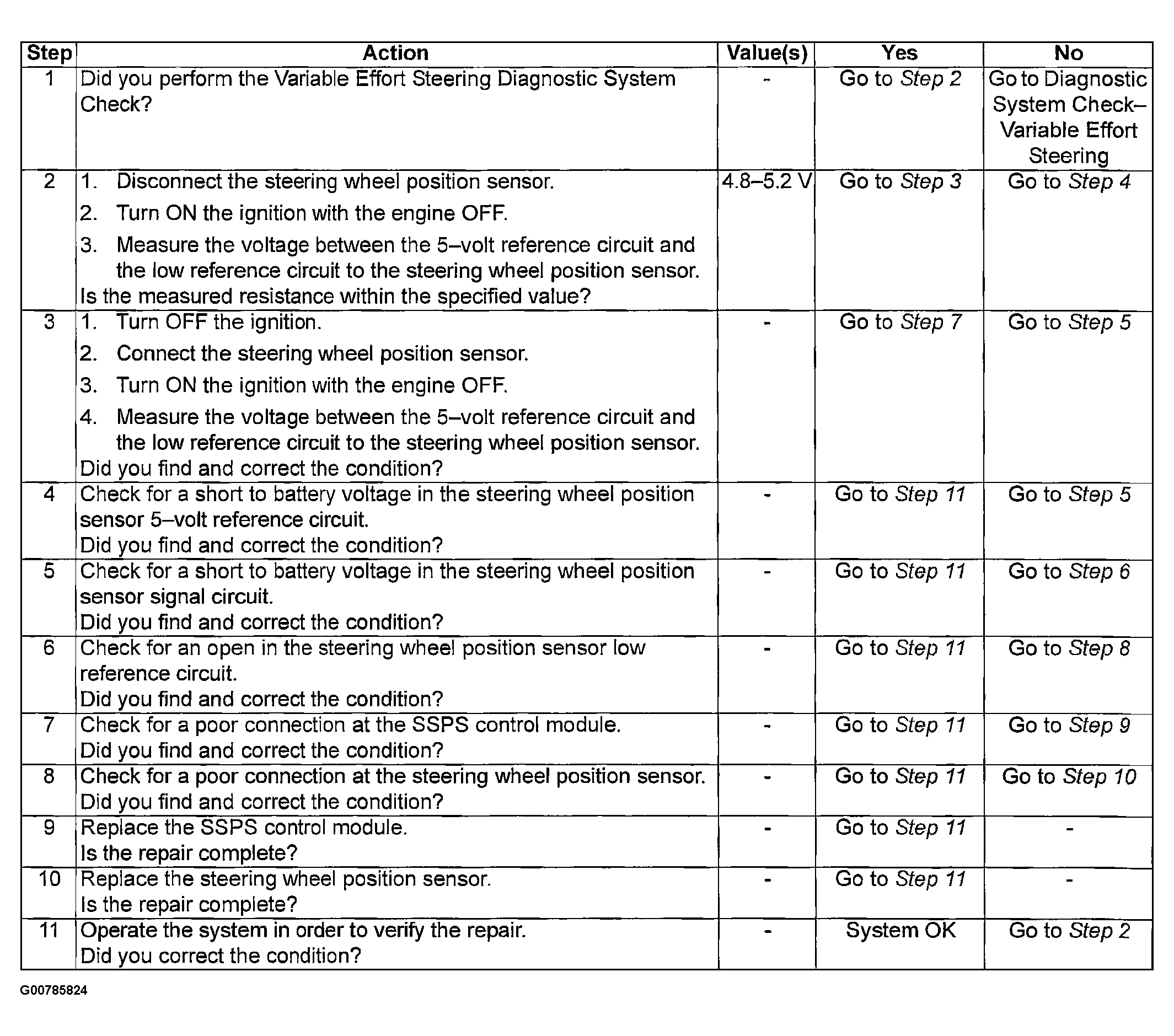

The numbers below refer to the step numbers on the diagnostic table.
3. This test checks for a short to voltage in the steering wheel position sensor circuits.
5. This test checks for a short to battery voltage on the 5-volt reference circuit.
6. This test checks for a short to voltage on the steering wheel position sensor signal circuit.
7. This test checks for an open circuit in the reference low circuit.
8. This test checks for a poor connection at the SSPS control module.
9. This test checks for a poor connection at the steering wheel position sensor.
