Test Description

The numbers below refer to the step numbers on the diagnostic table.

2. This test checks for a short circuit in the wiring and control valve actuator windings.

3. This test checks for a poor connection at the SSPS control module.

4. This test checks for a short in the low and high actuator control circuits of the SSPS control module control module.

6. This test checks for a poor connection at the power steering fluid flow control valve actuator.

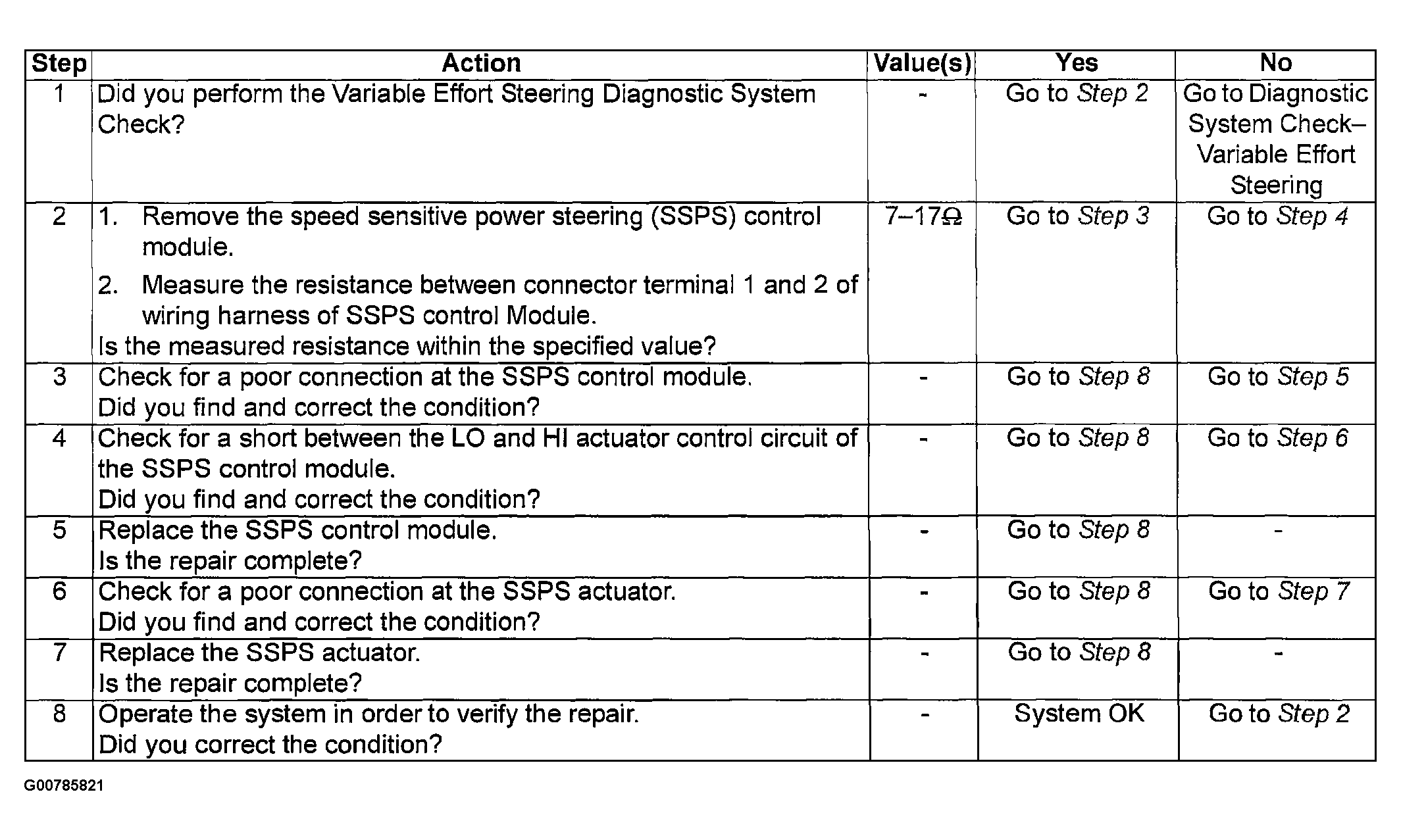

Fig 1: DTC 04 Diagnostic Table

Courtesy of SUZUKI OF AMERICA CORP.
