Test Description

The numbers below refer to the step numbers on the diagnostic table.

3. This test checks for a short to voltage in the wiring.

4. This test checks for a poor connection at the SSPS control module.

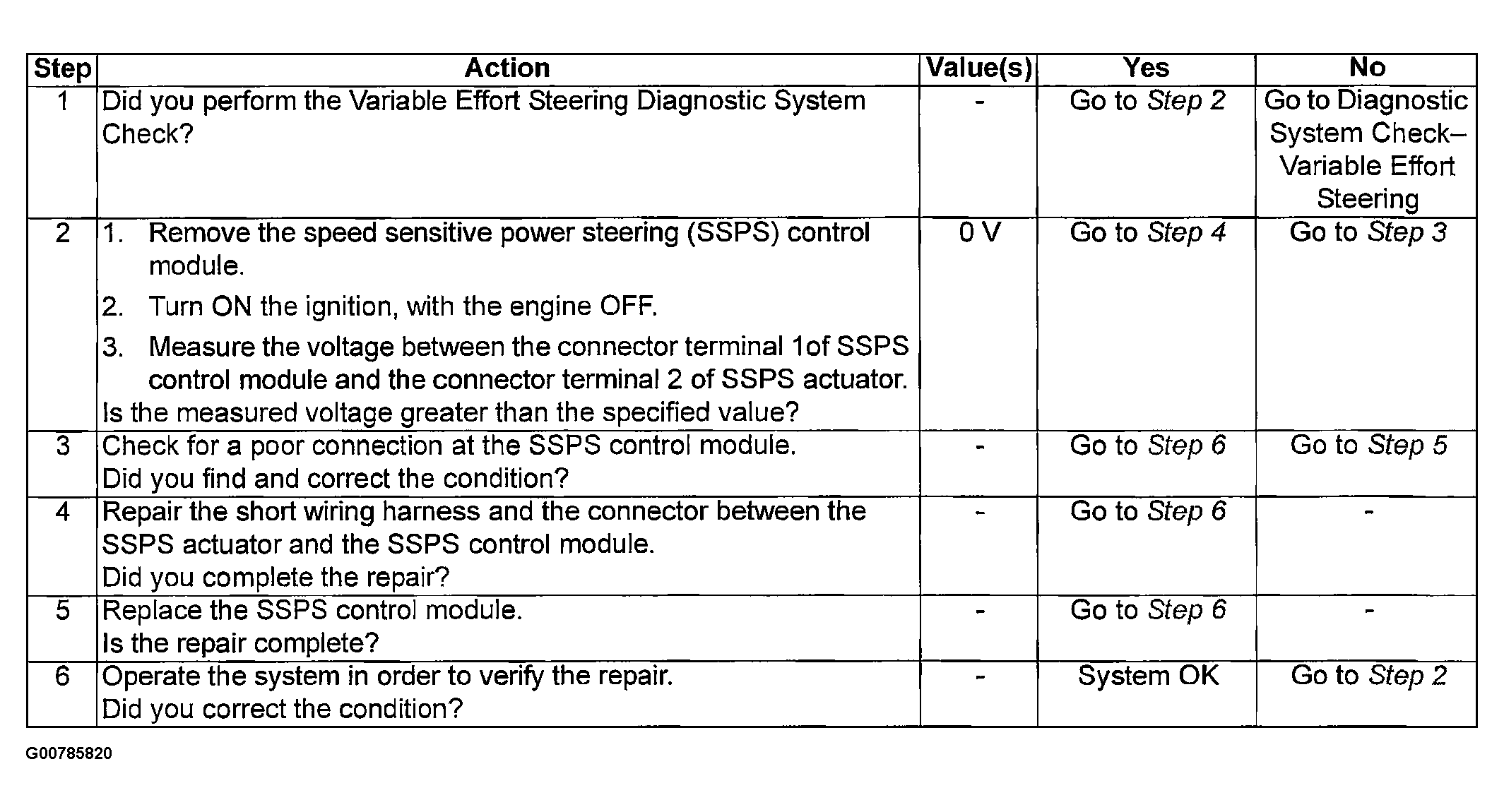

Fig 1: DTC 03 Diagnostic Table

Courtesy of SUZUKI OF AMERICA CORP.
