Test Description

The numbers below refer to the step numbers on the diagnostic table.

2. This test checks for an open circuit in the wiring and control valve actuator windings.

3. This test checks for a poor connection at the SSPS control module.

4. This test checks for an open in the low and high actuator control circuits of the SSPS control module.

5. This test checks for a poor connection at the power steering fluid flow control valve actuator.

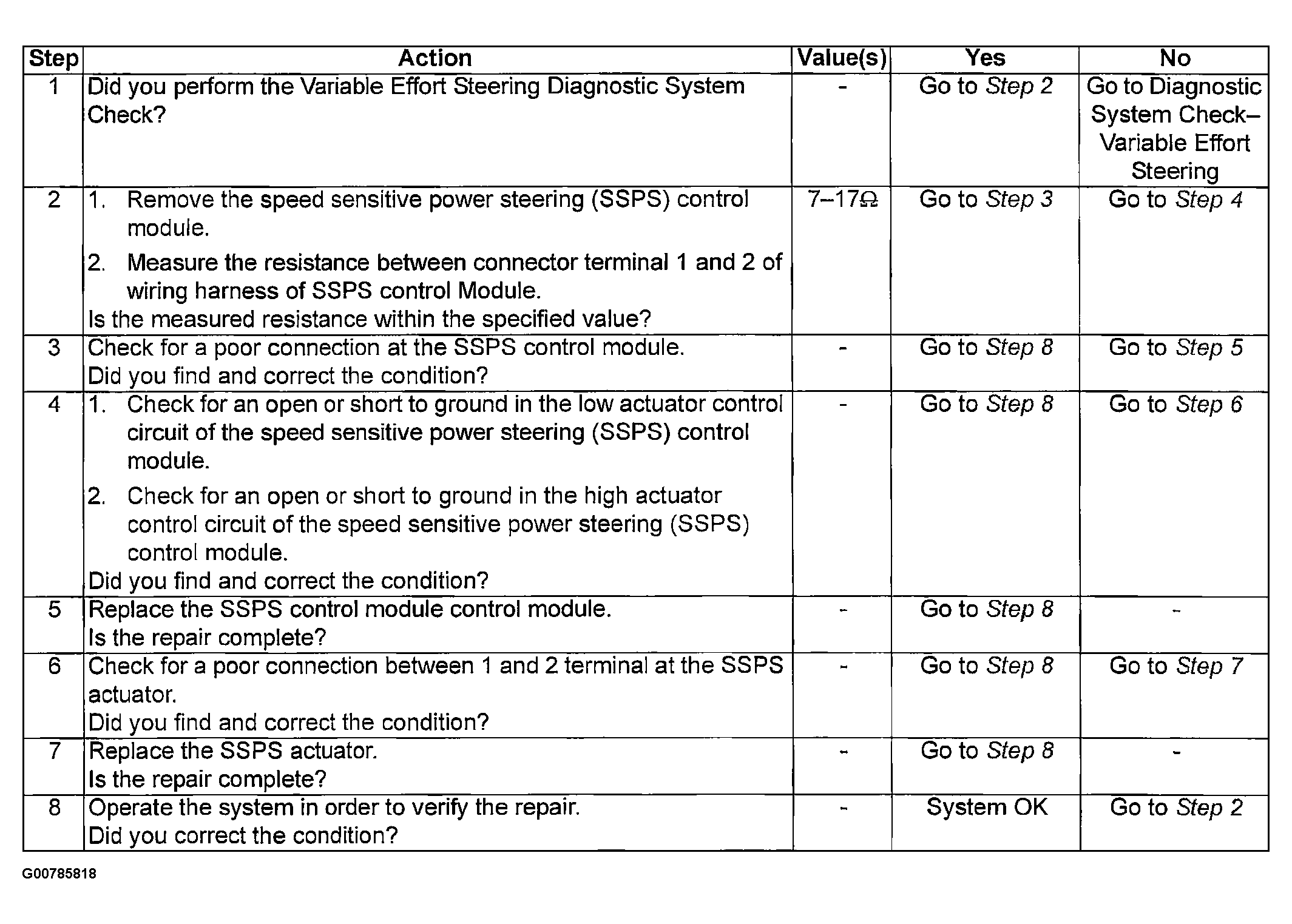

Fig 1: DTC 01 Diagnostic Table

Courtesy of SUZUKI OF AMERICA CORP.
