Tightening Torque Specifications

Fig 1: Tightening Torque Specifications (1 Of 2)
G00786128Courtesy of SUZUKI OF AMERICA CORP.

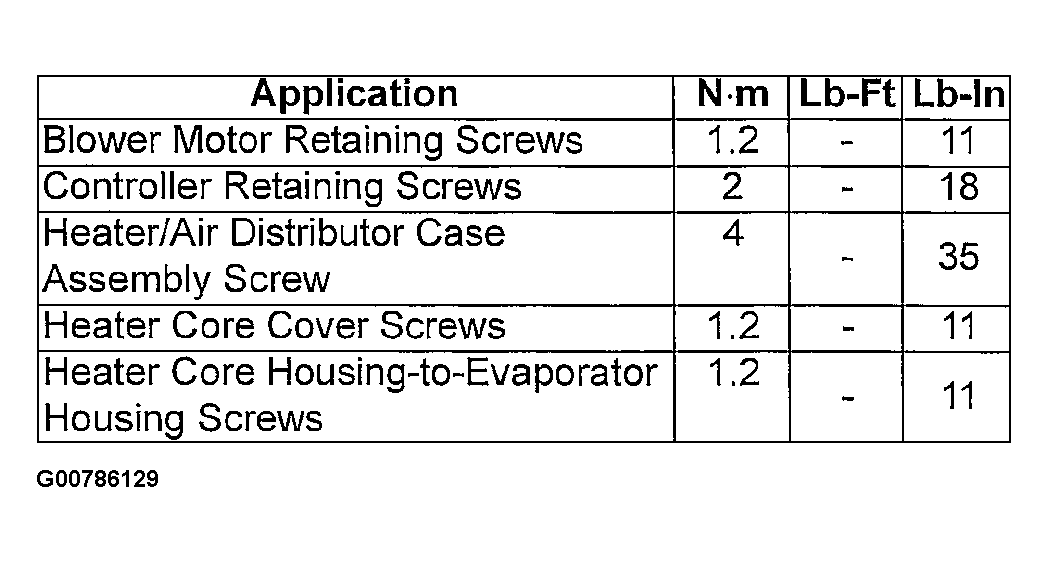

Fig 2: Tightening Torque Specifications (2 Of 2)
G00786129Courtesy of SUZUKI OF AMERICA CORP.
