Control Assembly Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Remove the center molding.

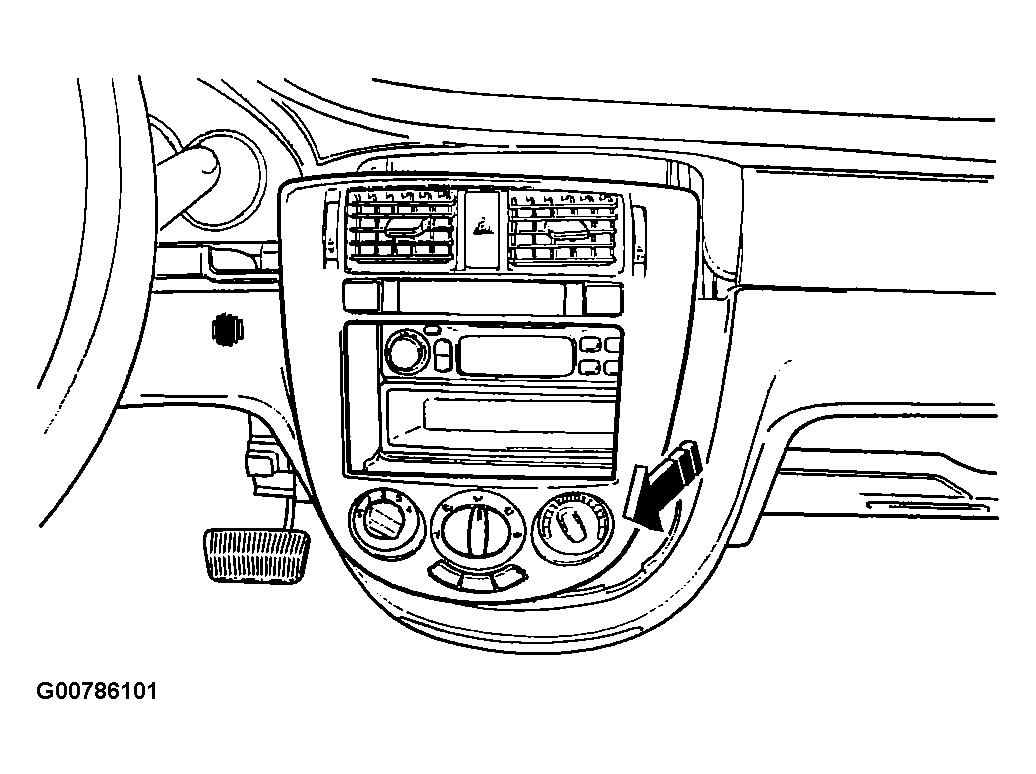

    Fig 1: Removing The Center Molding
    G00786101Courtesy of SUZUKI OF AMERICA CORP.
  3. Disconnect the mode control cable from the mode door.
  4. Disconnect the electrical connectors.
  5. Disconnect the temperature control cable by gently prying the cable eyelet from the post on the controller. Unsnap the cable housing from the mechanical slide. Note the location of the cable and the housing for ease of installation.
  6. Pull out the center molding.

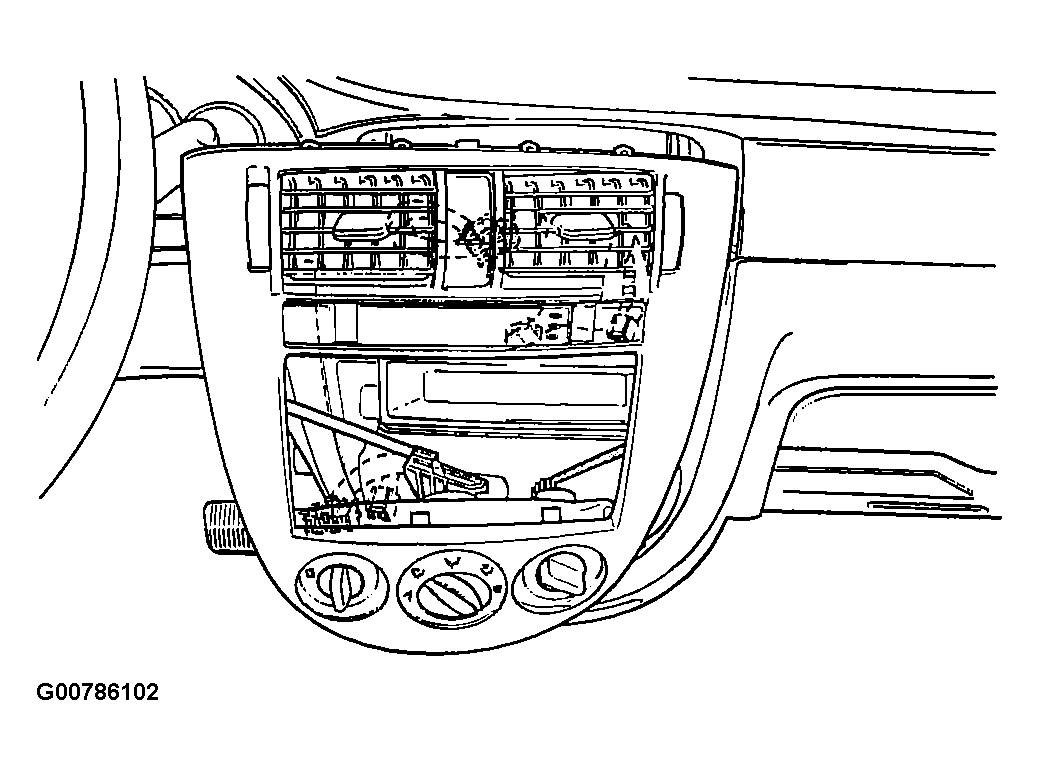

    Fig 2: Pulling Out The Center Molding
    G00786102Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the four controller retaining screws.
  2. Remove the control assembly from the center molding.

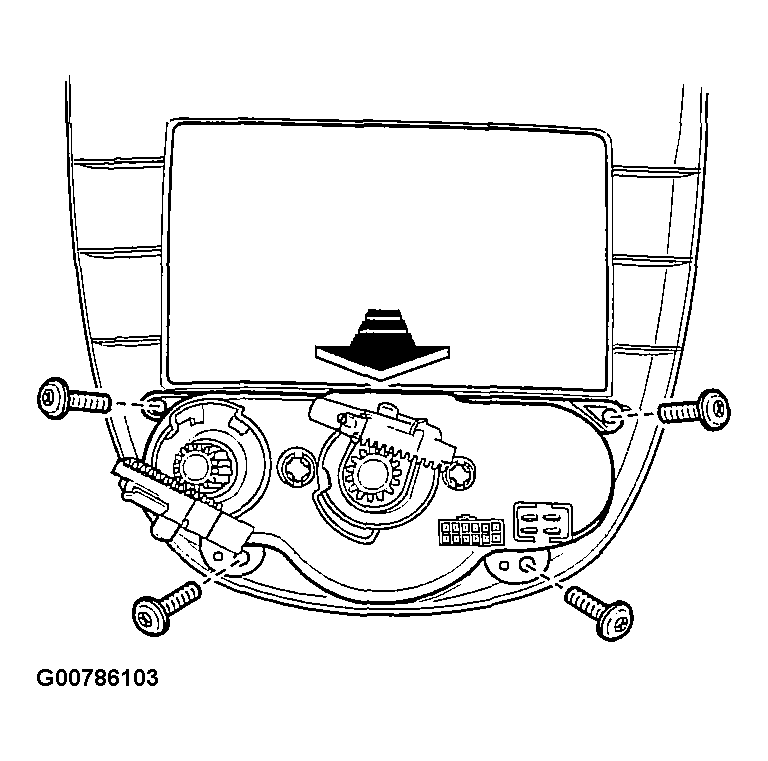

    Fig 3: Removing The Control Assembly From The Center Molding
    G00786103Courtesy of SUZUKI OF AMERICA CORP.
