V5 Compressor Components

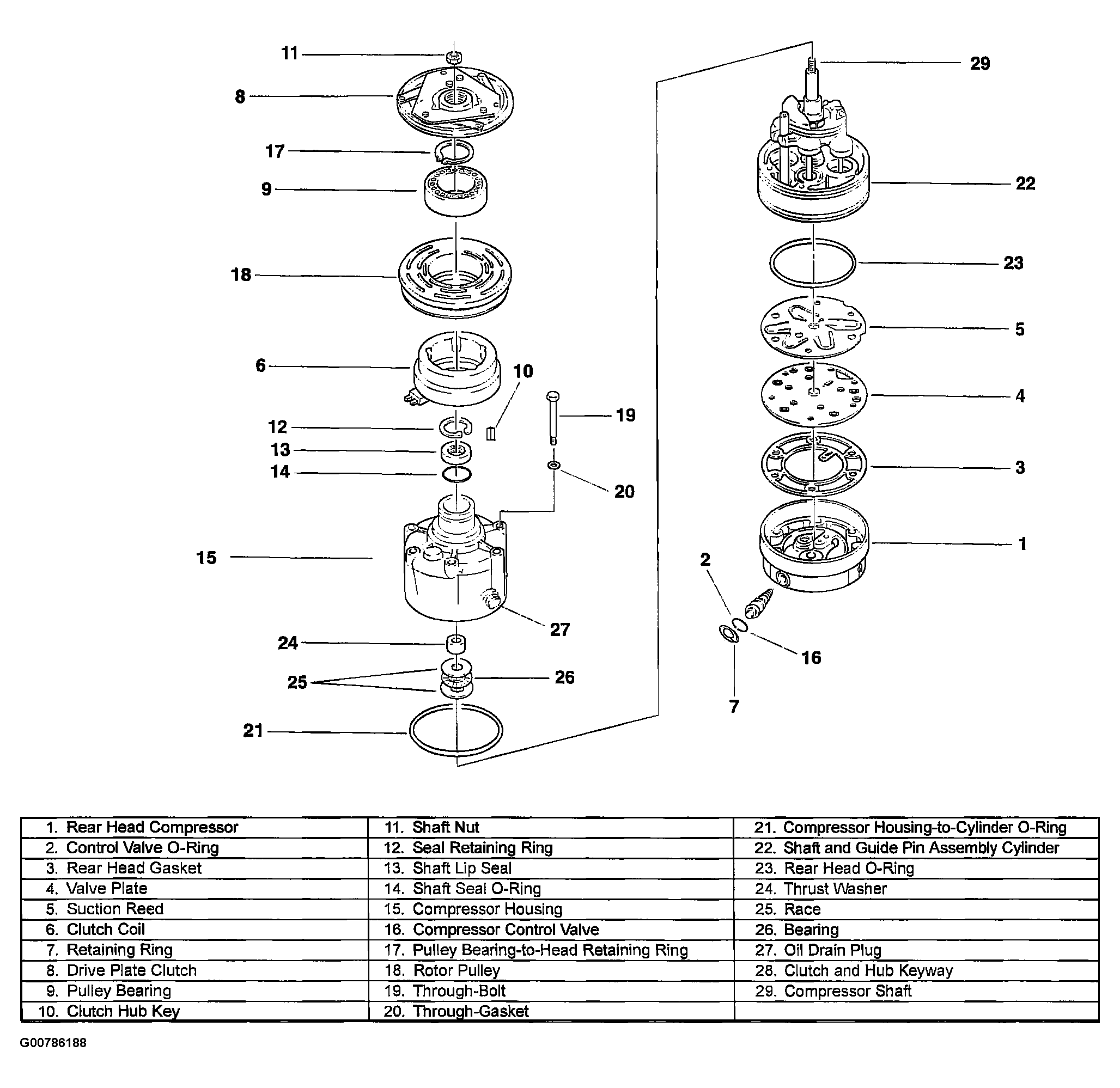

Fig 1: Exploded View Of V5 Compressor
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
