Condenser Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Discharge and recover the refrigerant. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .
  3. Remove the front bumper.
  4. Remove the discharge hose block-to-condenser retaining nut.
  5. Remove the discharge hose from the condenser.
  6. Remove the liquid pipe block-to-receiver-dryer cretaining nut.
  7. Remove the liquid pipe from the receiver-dryer.

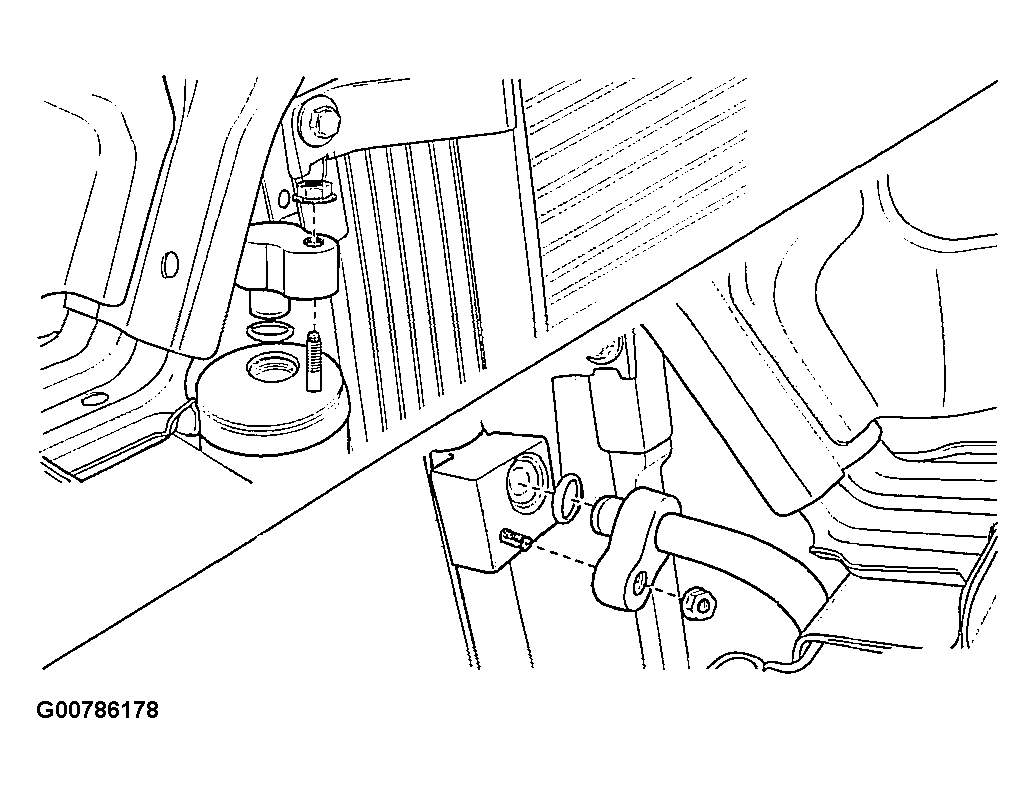

    Fig 1: Removing The Discharge Hose Block-To-Condenser Retaining Nut
    G00786178Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove the condenser mount bolts.
  9. Remove the condenser.
  10. Cap all the open lines and the fittings to prevent contamination.

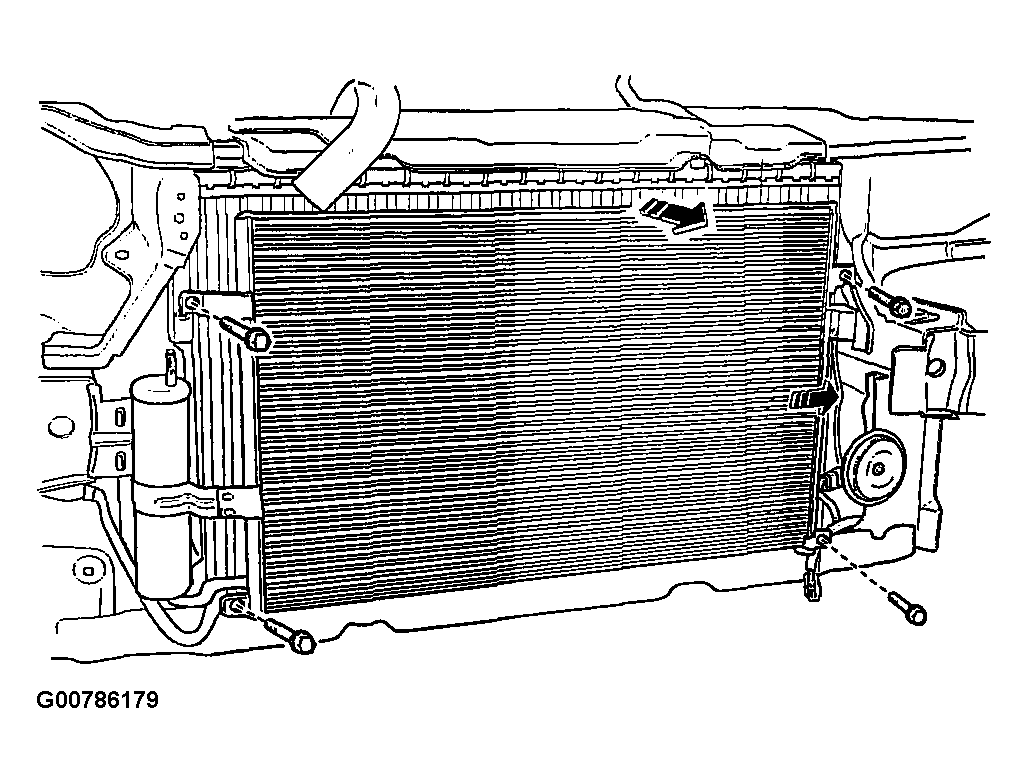

    Fig 2: Removing The Condenser
    G00786179Courtesy of SUZUKI OF AMERICA CORP.
