Condenser Removal and Installation: Installation

Position the condenser into the vehicle.
Install the condenser mount bolts.
Tighten

Tighten the condenser mount bolts to 4 N.m (35 lb-in).

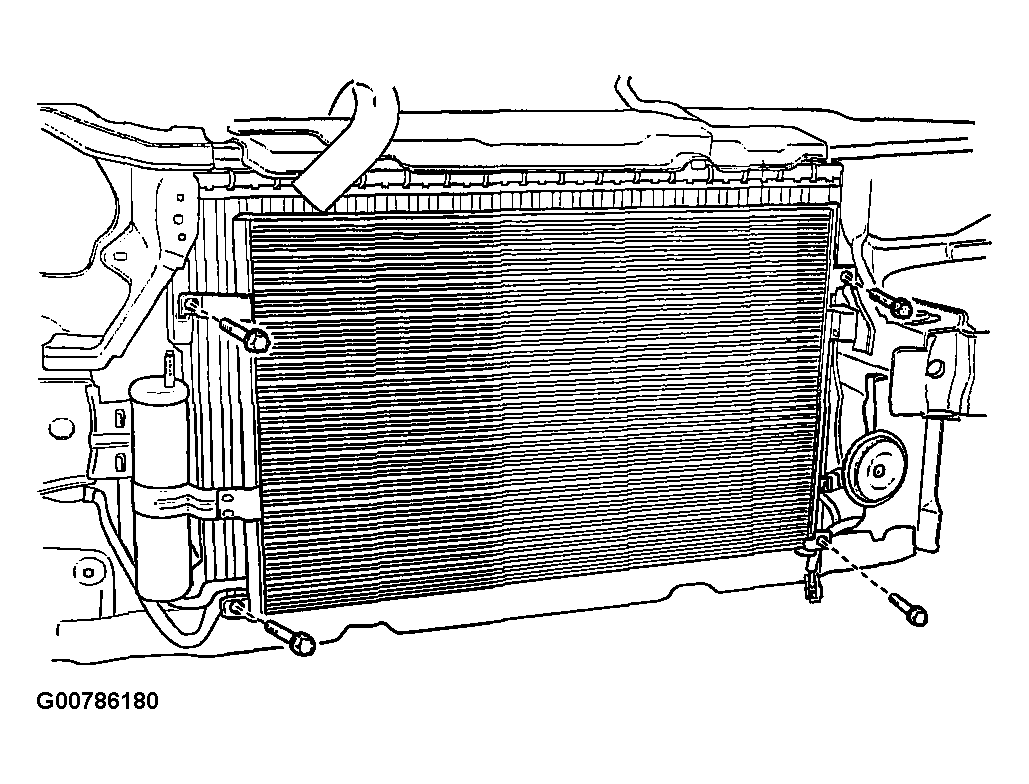

Fig 1: Installing The Condenser
Courtesy of SUZUKI OF AMERICA CORP.
Install a new O-ring onto the high-pressure pipe mounting block fitting on the receiver-dryer.
Install the liquid pipe into the receiver-dryer.
Install the liquid pipe block-to-receiver-dryer retaining nut.
Tighten

Tighten the liquid pipe block-to-receiver-dryer retaining nut to 14 N.m (10 lb-ft).
Install a new O-ring onto the discharge hose connecting block fitting.
Install the discharge hose fitting into the condenser.
Install the discharge hose connecting block-to-condenser retaining nut at the condenser connecting block.

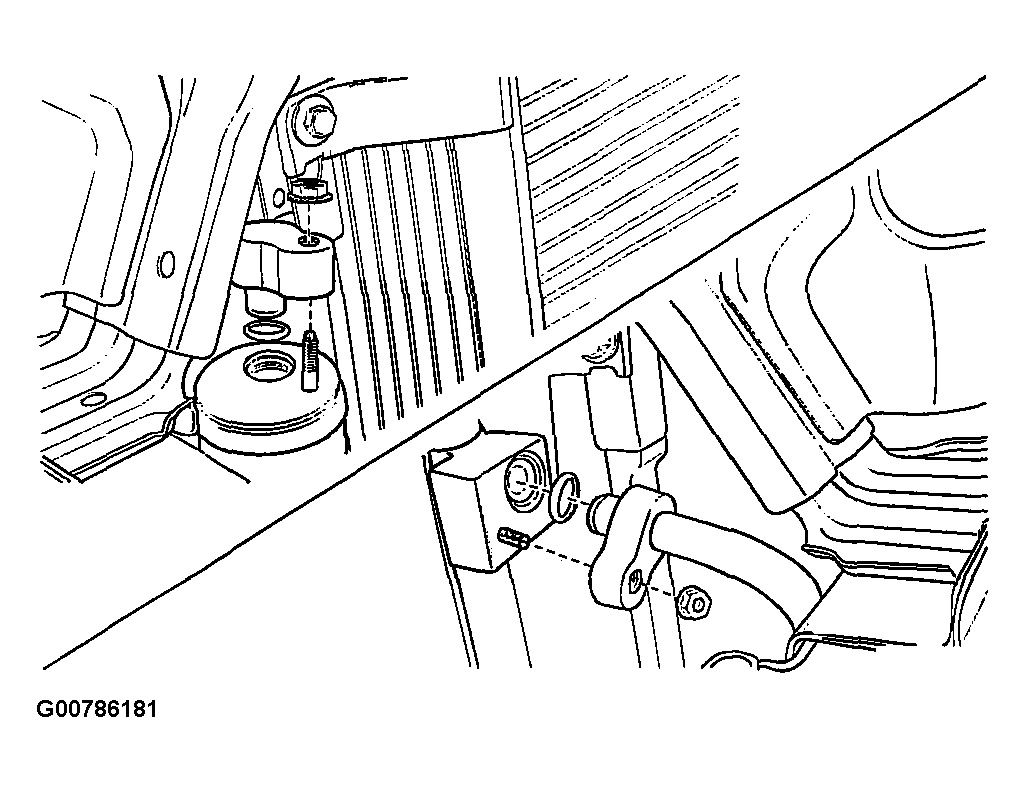

Fig 2: Installing The Discharge Hose Connecting Block
Courtesy of SUZUKI OF AMERICA CORP.

Tighten

Tighten the refrigerant discharge hose block-to-condenser retaining nut to 16 N.m (12 lb-ft).
Install the front bumper.
Connect the negative battery cable.
Evacuate and recharge the A/C system. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .
Operate the HVAC control to verify the proper function of the heating and cooling systems.
