A/C Pressure Transducer Removal and Installation: Installation

  1. Install the new O-ring seal on the transducer.
  2. Install the pressure transducer.

    Tighten

    Tighten the pressure transducer to 7 N.m (62 lb-in).

  3. Connect the wire connector.
  4. Connect the negative battery cable.

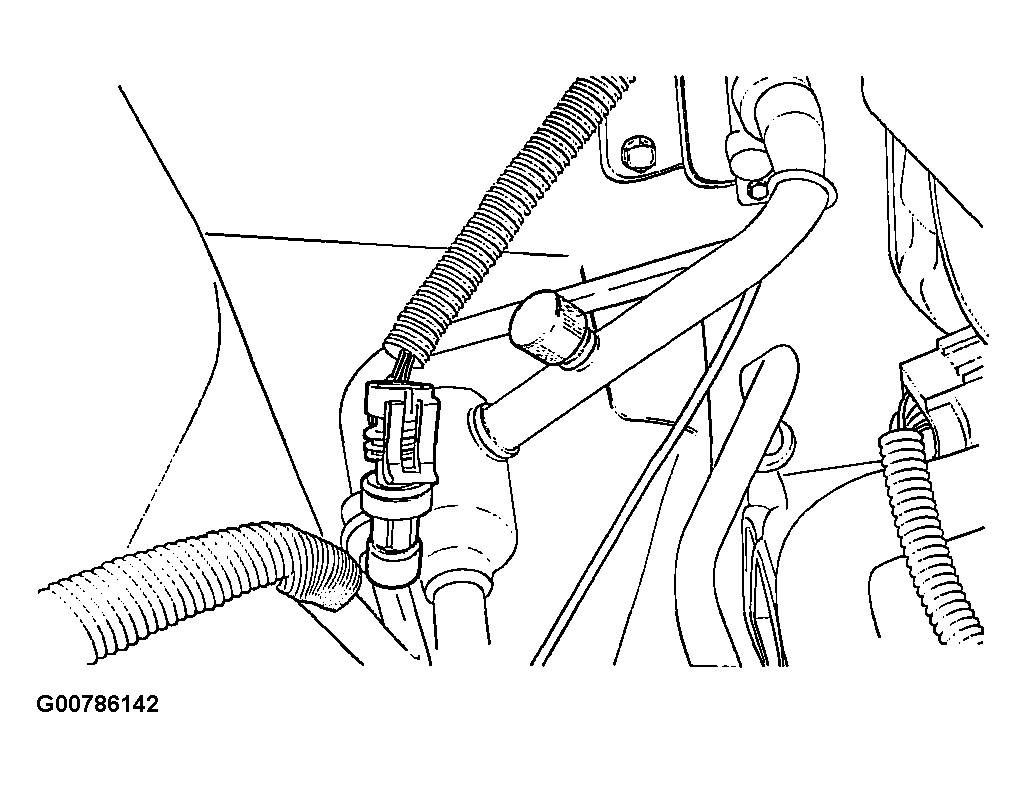

    Fig 1: Installing The Pressure Transducer
    G00786142Courtesy of SUZUKI OF AMERICA CORP.
