A/C High-Pressure Pipe Line Removal and Installation: Removal

Disconnect the negative battery cable.
Recover the refrigerant. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .
Remove the nut at the discharge hose block connected to compressor.

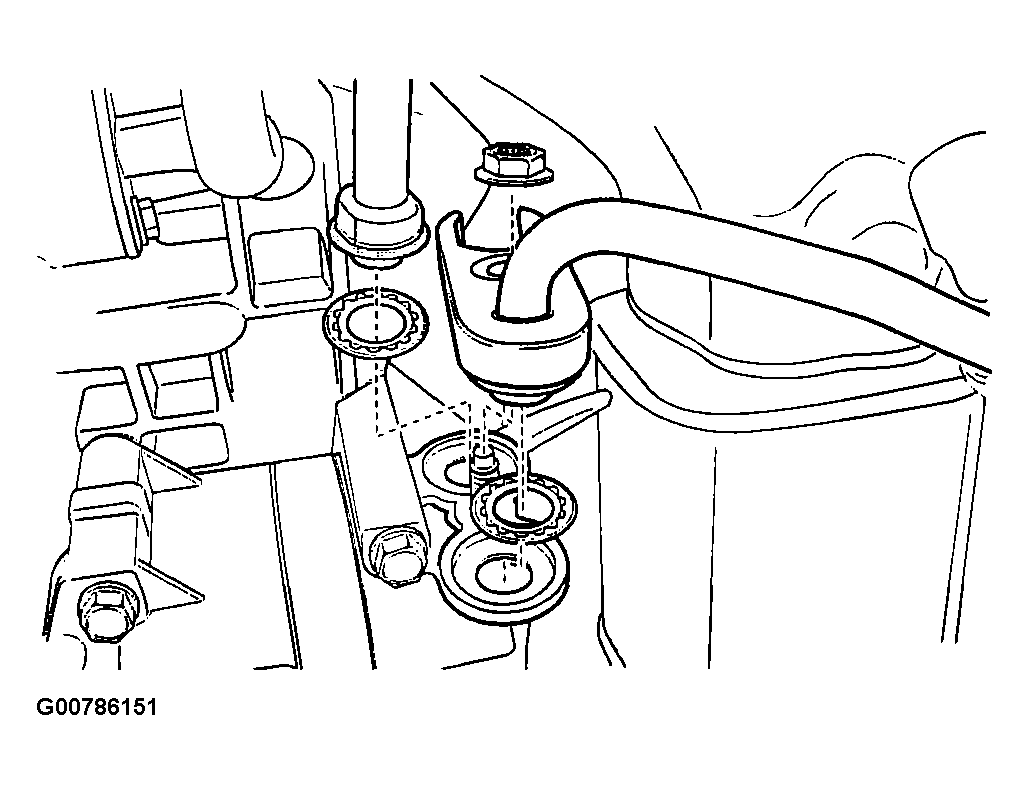

Fig 1: Removing The Nut
Courtesy of SUZUKI OF AMERICA CORP.
Remove the headlamp housing at the left-hand side.
Remove the nut at the condenser connecting block.

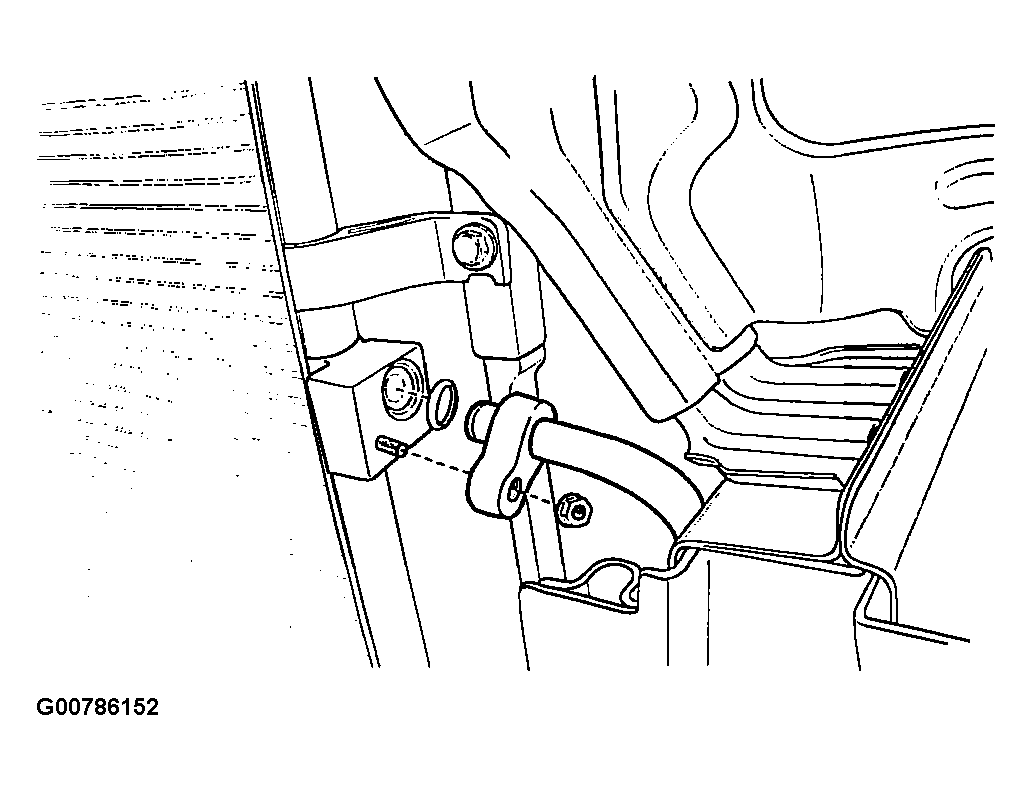

Fig 2: Removing The Nut At The Condenser Connecting Block
Courtesy of SUZUKI OF AMERICA CORP.
Remove the refrigerant discharge hose.
Remove the air cleaner housing bolts and the air filter housing assembly.
Disconnect the electrical connector at the pressure transducer.
Remove the liquid pipe block-to-expansion valve retaining nut at the fire wall.

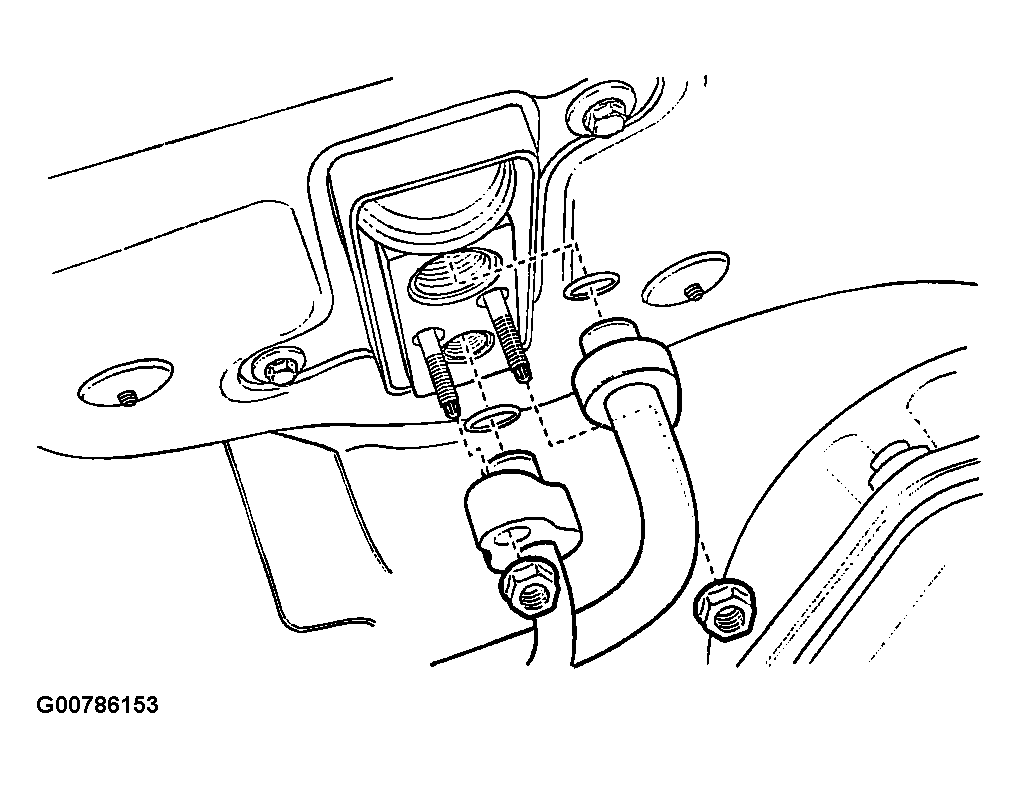

Fig 3: Removing The Liquid Pipe Block-To-Expansion Valve Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.
Remove the headlamp housing at the right-hand side.
Remove the liquid pipe block-to-receiver dryer retaining nut.

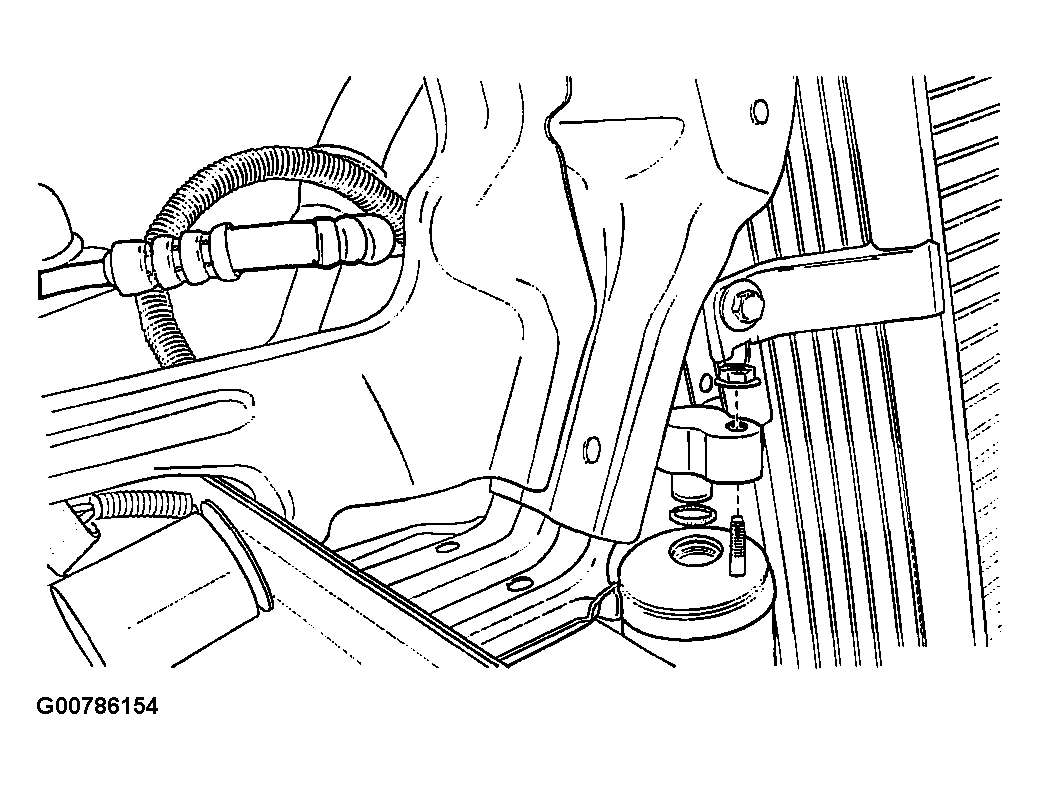

Fig 4: Removing The Liquid Pipe Block-To-Receiver Dryer Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.
Remove the bolts which secure the support clamps that hold the liquid pipe to the vehicle.

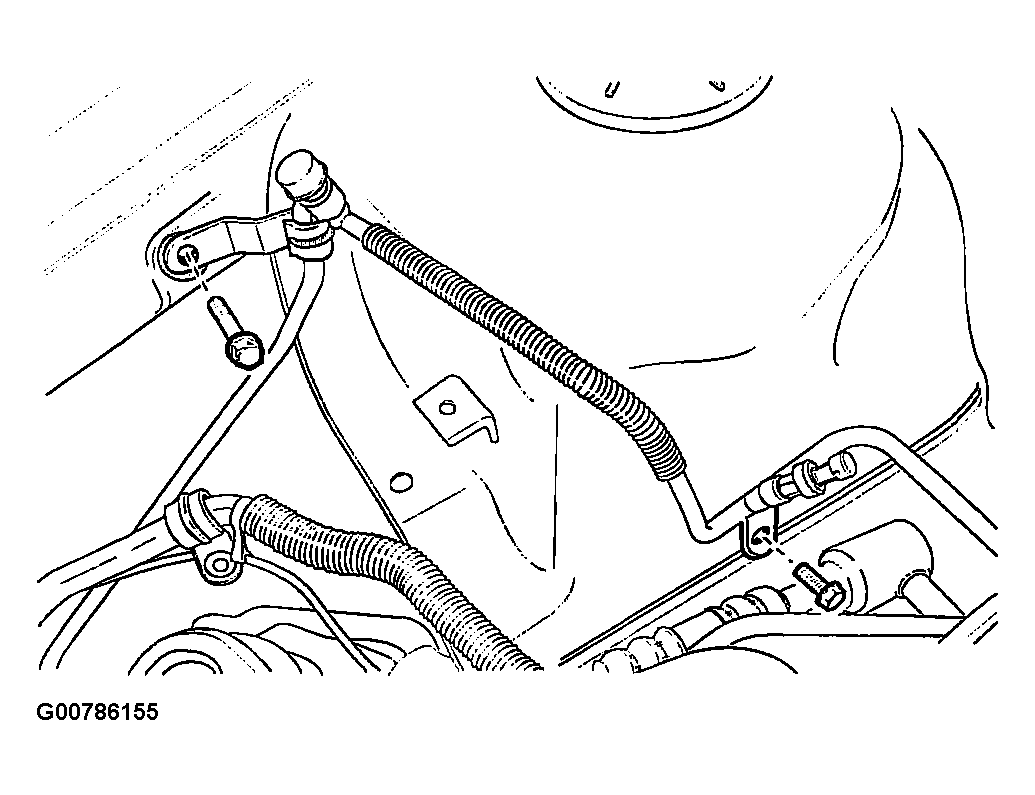

Fig 5: Removing The Liquid Pipe From The Vehicle
Courtesy of SUZUKI OF AMERICA CORP.
Remove the liquid pipe from the vehicle.
Cap the opening at the receiver-dryer to prevent contamination.
