A/C Discharge Hose-Compressor to Condenser Removal and Installation: Installation

Install new sealing washers at the compressor connecting block end and a new O-ring at the condenser connecting block end.
Position the hose into the vehicle, and install the nut at the condenser connecting block.

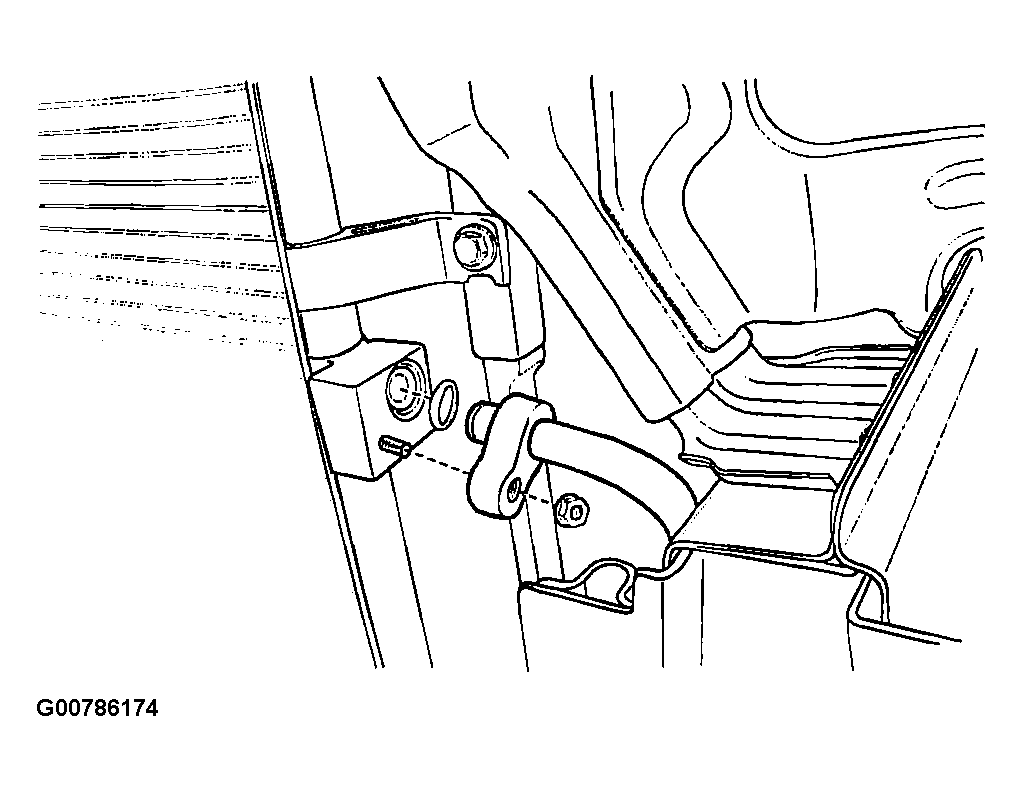

Fig 1: Installing The Nut At The Condenser Connecting Block
Courtesy of SUZUKI OF AMERICA CORP.

Tighten

Tighten the refrigerant discharge hose block-to-condenser retaining nut to 16 N.m (12 lb-ft).
Make the hose connecting the connecting block to the compressor, and install the retaining nut.

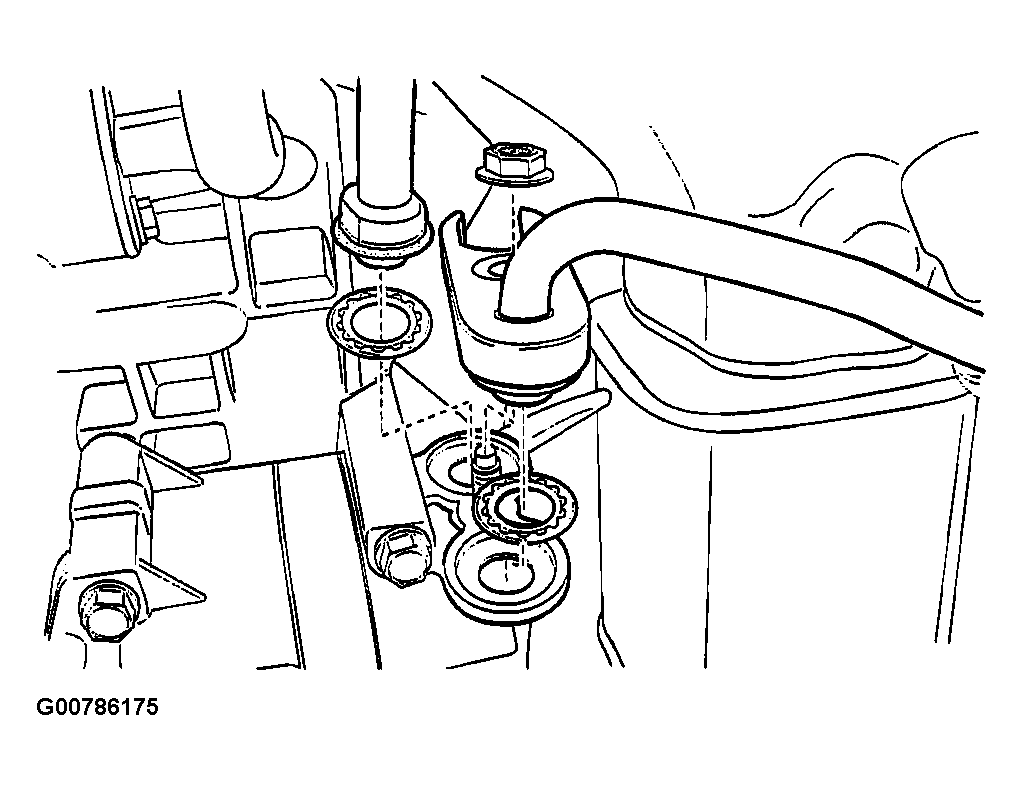

Fig 2: Installing The Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.

Tighten

Tighten the refrigerant discharge hose block-to-compressor retaining nut to 33 N.m (24 lb-ft).
Connect the negative battery cable.
Evacuate and recharge the A/C system. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .
