A/C Compressor Relay Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Pull the relay straight up and out from its location in the engine fuse block at the left front corner.

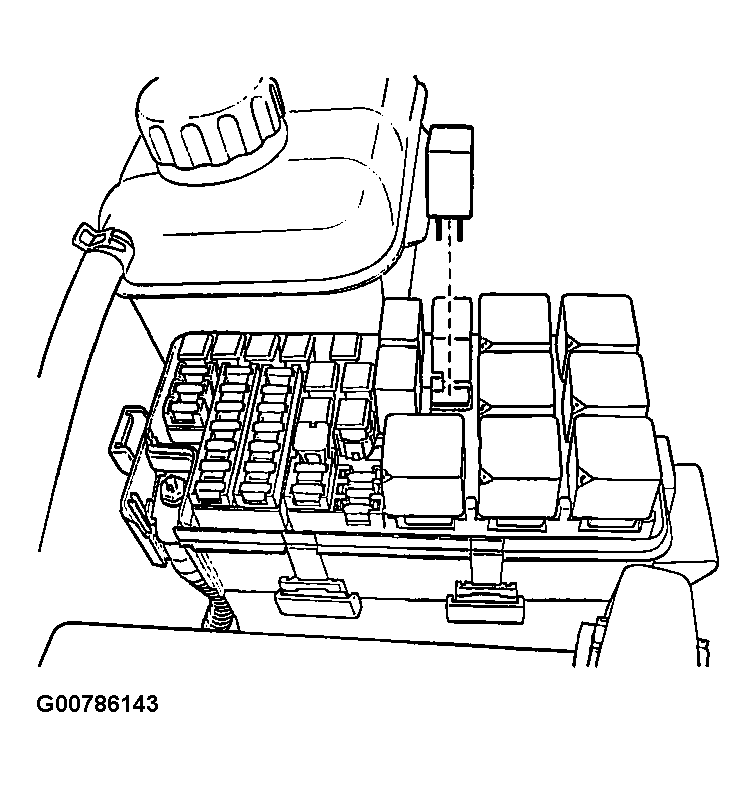

    Fig 1: Removing A/C Compressor Relay
    G00786143Courtesy of SUZUKI OF AMERICA CORP.
