Pressure Test Chart (R-134a System)

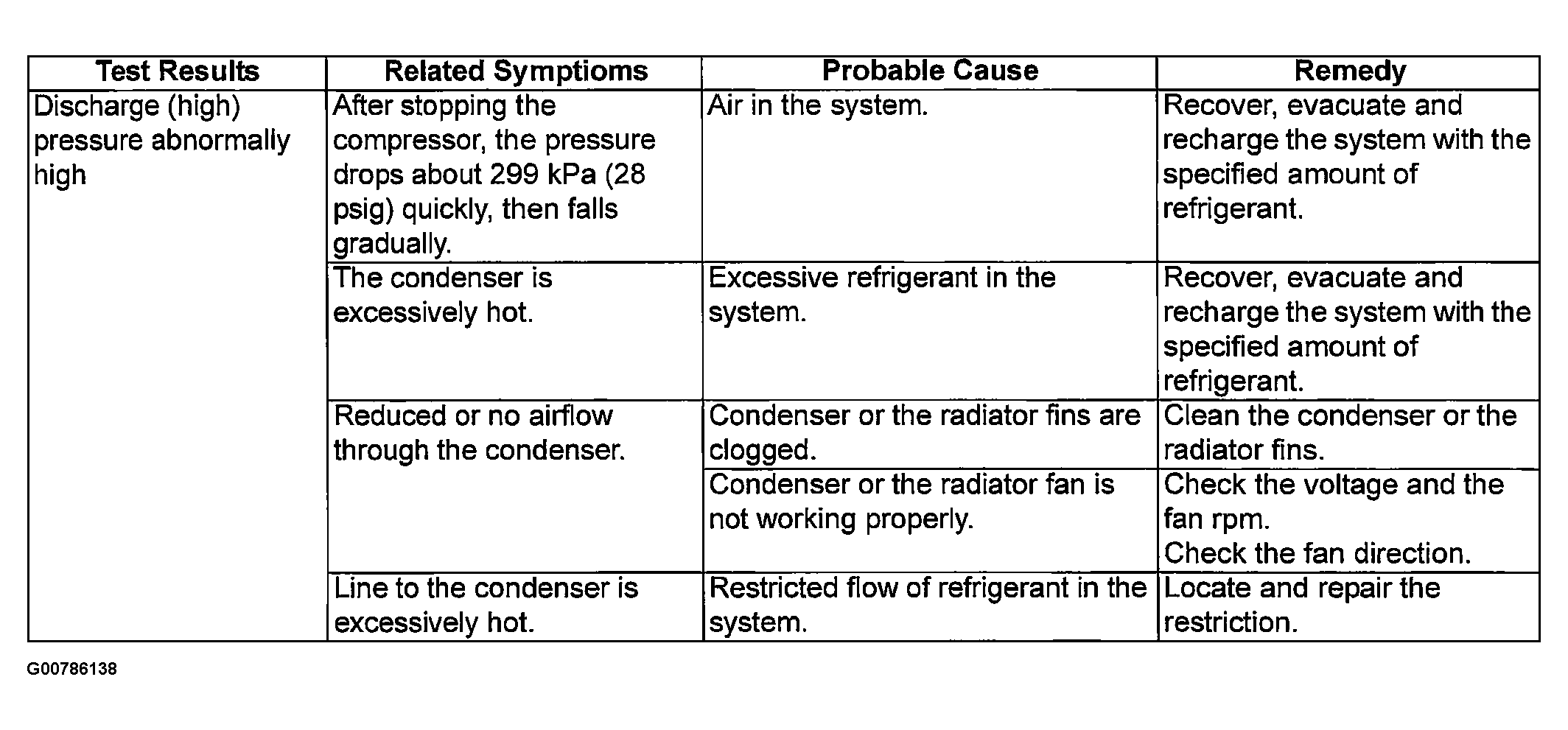

Fig 1: Pressure Test Chart (1 Of 2)
G00786138Courtesy of SUZUKI OF AMERICA CORP.

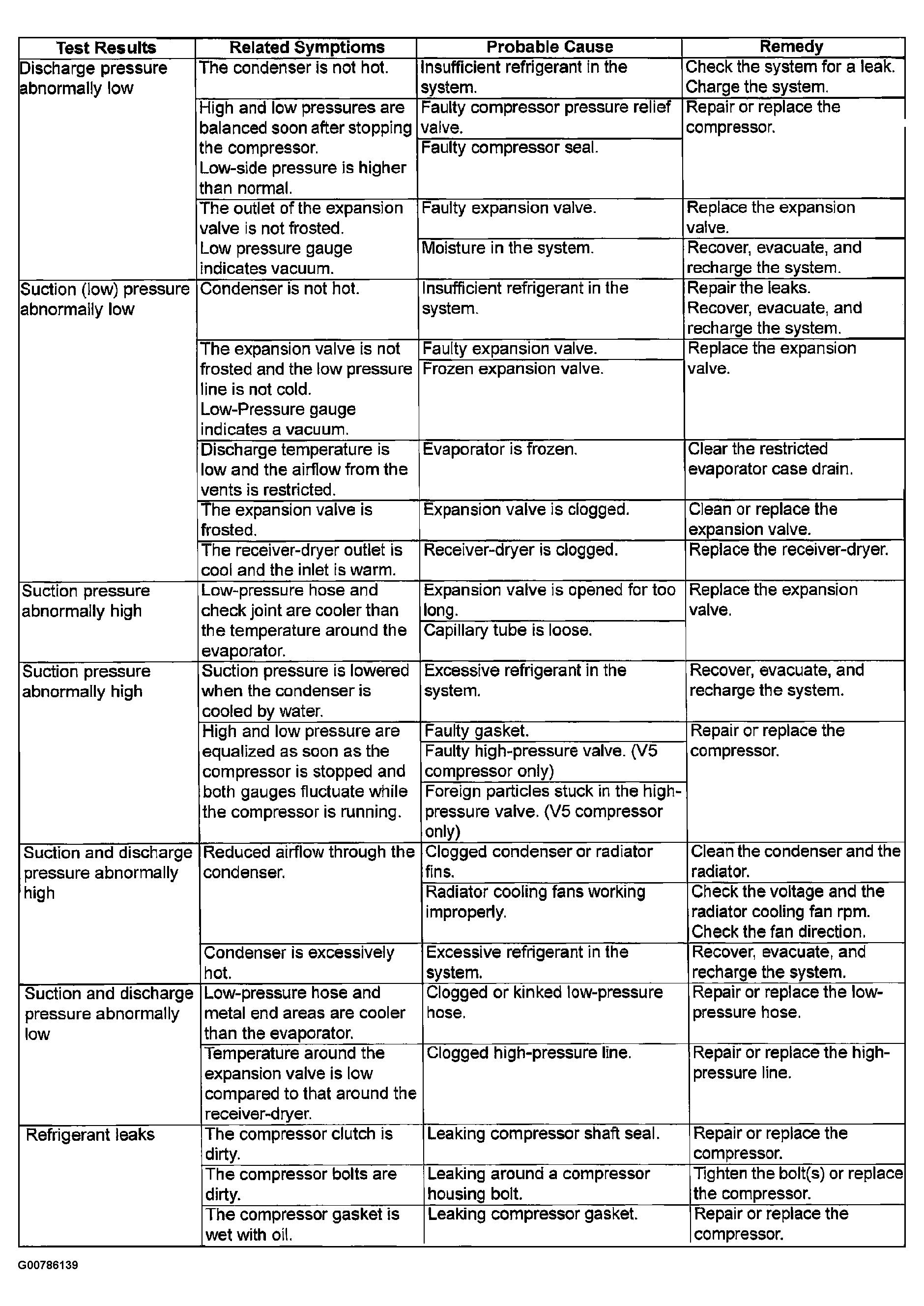

Fig 2: Pressure Test Chart (2 Of 2)
G00786139Courtesy of SUZUKI OF AMERICA CORP.
