A/C Performance Test: Notes

Test Conditions: Doors & hood opened, A/C ON, Recirculation mode, Full Cool with maximum Blower speed, No Sunlight, Wind velocity at 8km/h (5 mph).

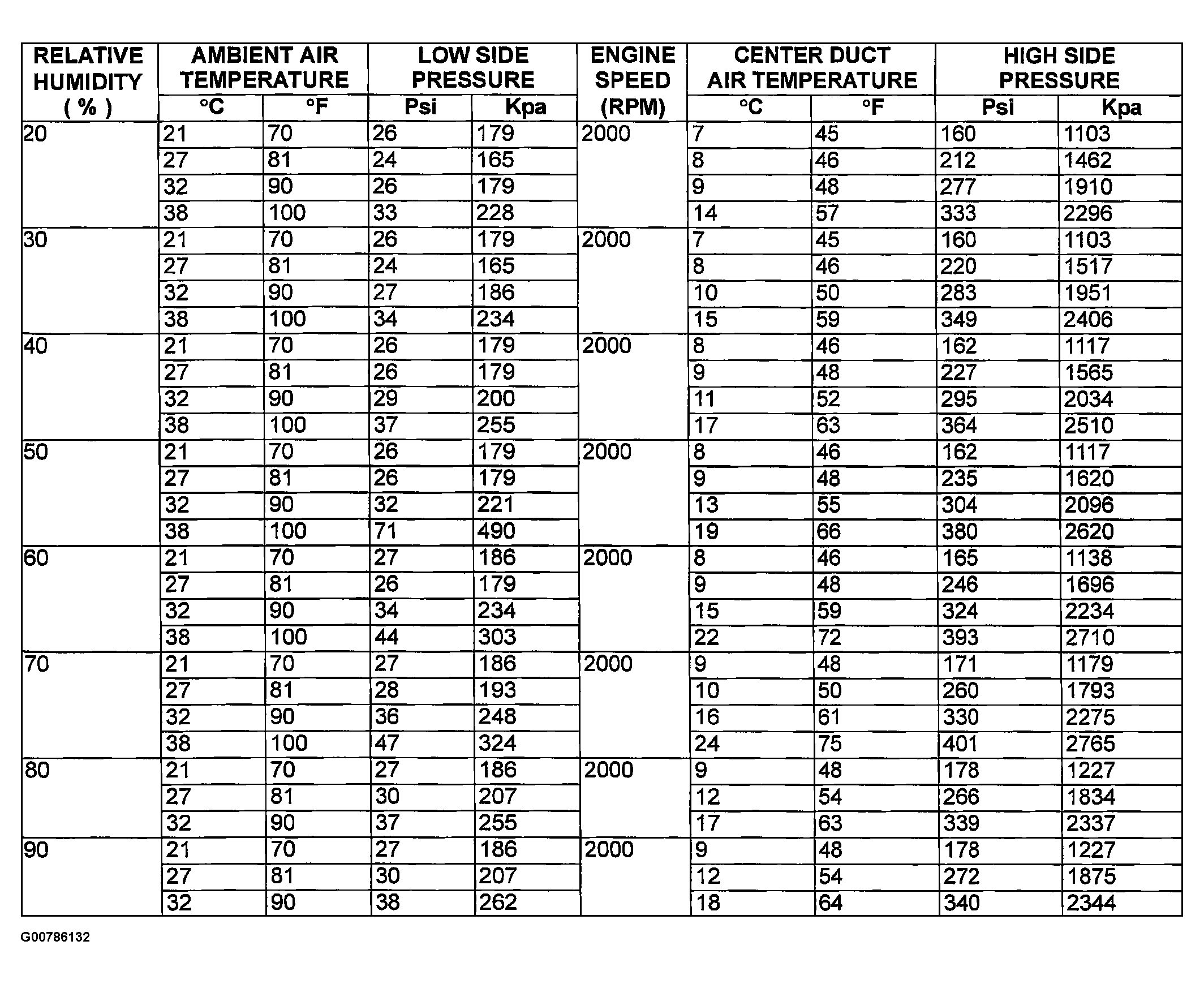

Fig 1: A/C Performance Test Chart

Courtesy of SUZUKI OF AMERICA CORP.
