Stereo Cassette AM/FM Radio Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Disconnect the negative battery cable.
  3. Remove the screws and the audio system.
  4. Disconnect the audio system electrical connectors.

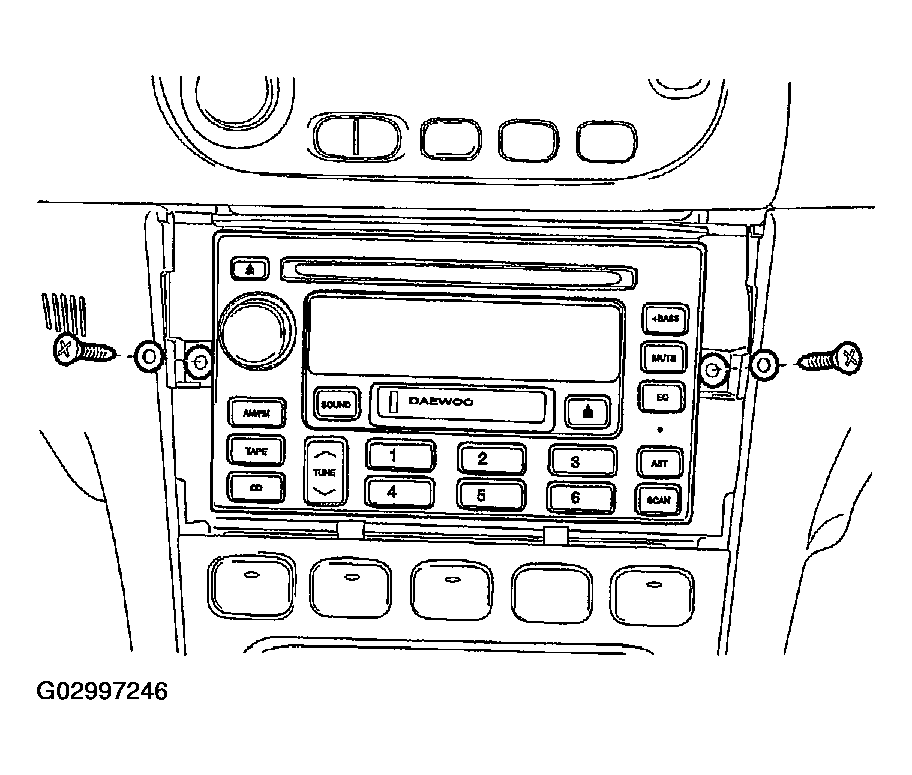

Fig 1: Removing Screws & Audio System
G02997246Courtesy of SUZUKI OF AMERICA CORP.
