Door Speakers Installation

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

Install the door speaker with the screws.
1. Tighten the door speaker screws to 2 N.m (18 lb-in).
Connect the electrical connector.
Install the door trim panel. Refer to FRONT DOOR TRIM PANEL INSTALLATION .
Connect the negative battery cable.

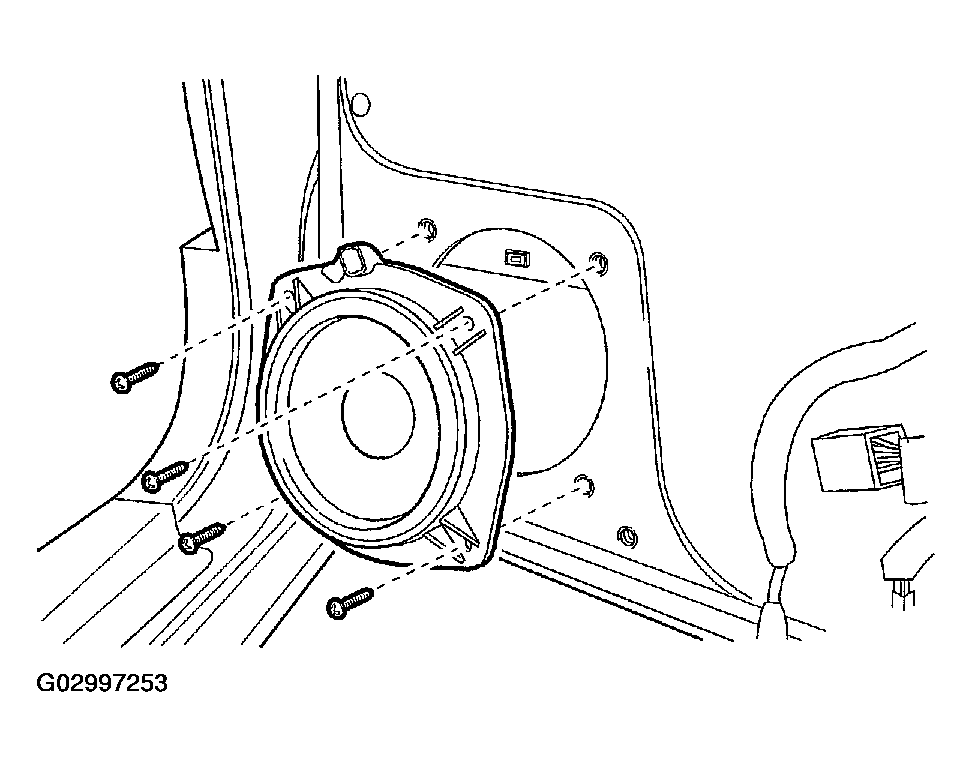

Fig 1: Installing Door Speakers

Courtesy of SUZUKI OF AMERICA CORP.
