CD Changer Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Disconnect the CD changer electrical connector.
  3. Remove the bolts and the CD changer.

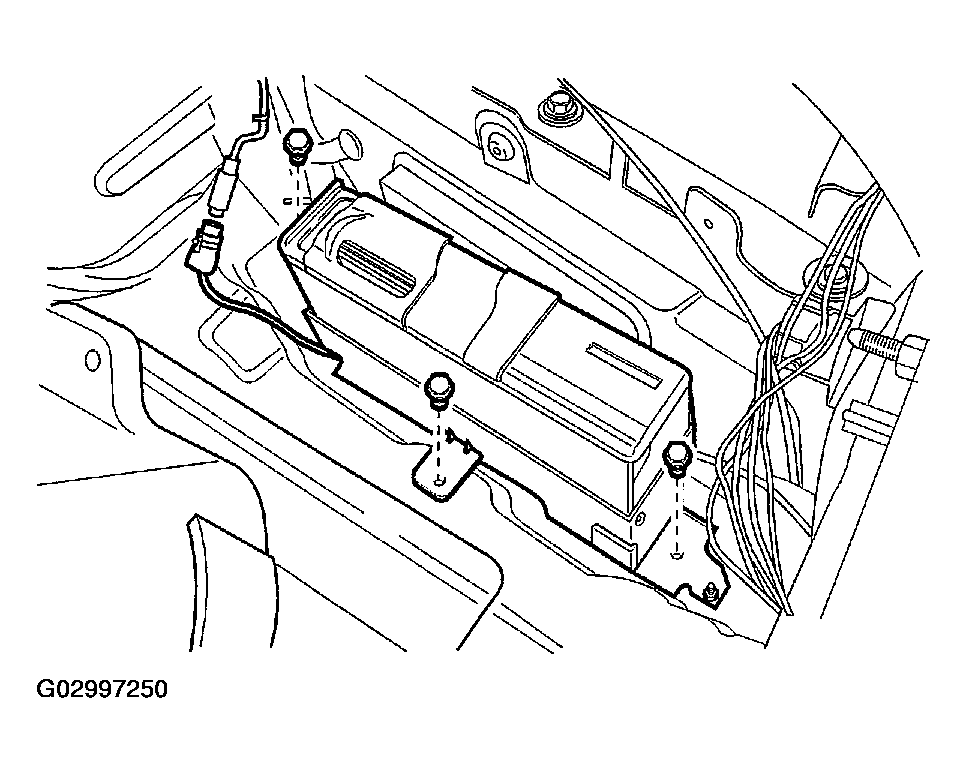

Fig 1: Removing Bolts & CD Changer
G02997250Courtesy of SUZUKI OF AMERICA CORP.
