Windshield Wiper Motor Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the screws and the left side portion of the cowl vent grille.
Remove the nut and the washer that secure the wiper arm linkage to the motor drive shaft.
Pry the wiper arm linkage off the motor drive shaft.

Fig 1: Prying Wiper Arm Linkage Off Motor Drive Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the electrical connector.
Remove the bolts and the wiper motor.

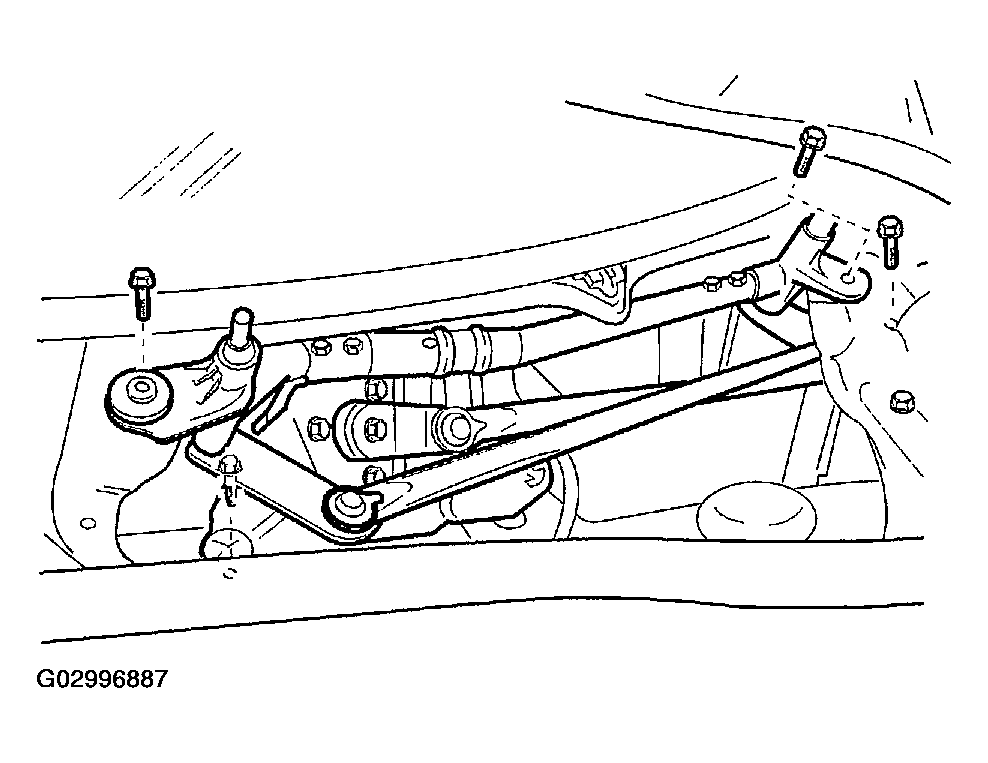

Fig 2: Removing Bolts & Wiper Motor

Courtesy of SUZUKI OF AMERICA CORP.
