Windshield Wiper Motor Installation

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  1. Install the wiper motor with the bolts.
    1. Tighten the wiper motor bolts to 10 N.m (89 lb-in).
  2. Connect the electrical connector.
    Fig 1: Installing Wiper Motor With Bolts
    G02996889Courtesy of SUZUKI OF AMERICA CORP.
  3. Press the wiper arm linkage onto the motor drive shaft.
  4. Install the wiper arm linkage to the motor drive shaft with the washer and the nut.
    1. Tighten the wiper arm linkage nut to 8.5 N.m (75 lb-in).
  5. Install the left side portion of the cowl vent grille with the screws.
    1. Tighten the cowl vent grille screws to 2.5 N.m (22 lb-in).
  6. Connect the negative battery cable.

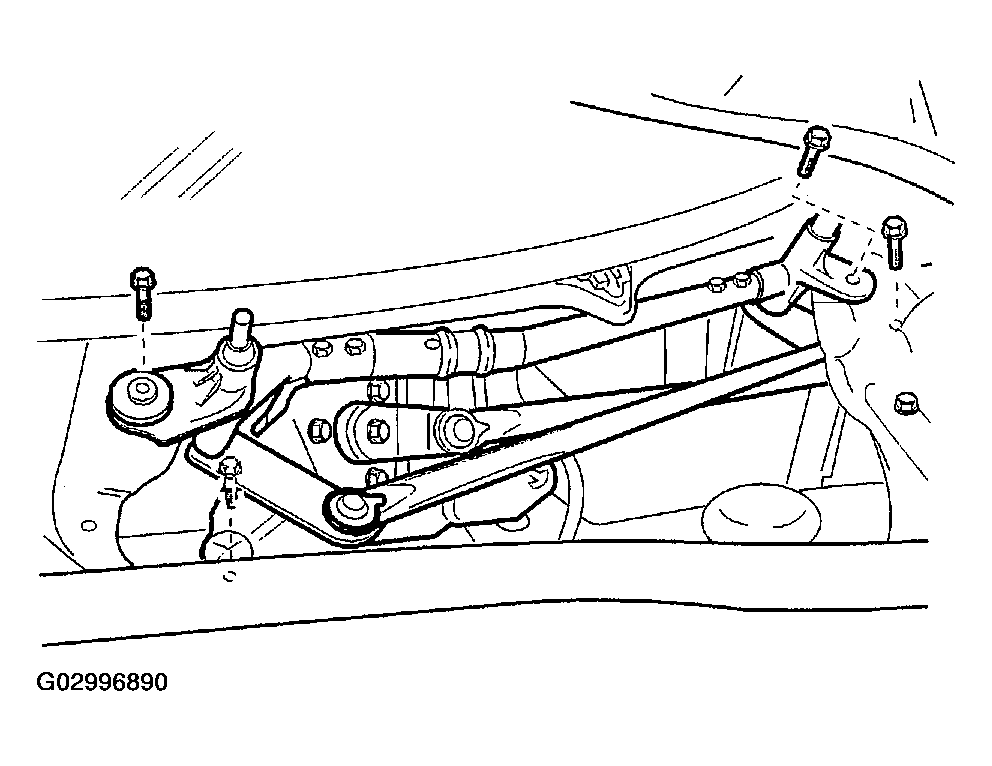

Fig 2: Installing Left Side Portion Of Cowl Vent Grille
G02996890Courtesy of SUZUKI OF AMERICA CORP.
