Windshield Washer Reservoir Installation
WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

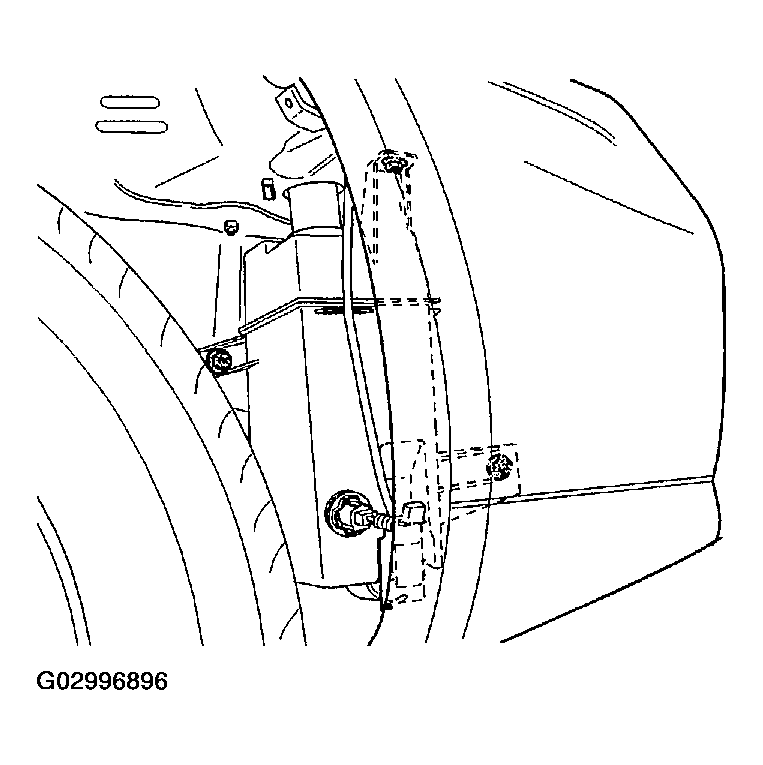

- Install the reservoir with the bolts.
- Tighten the washer fluid reservoir bolts to 9 N.m (80 lb-in).
- Connect the electrical connector.
- Connect the washer hose to the washer pump.
- Install the front wheel well splash shield. .
- Install the front right wheel. .
- Connect the negative battery cable.
